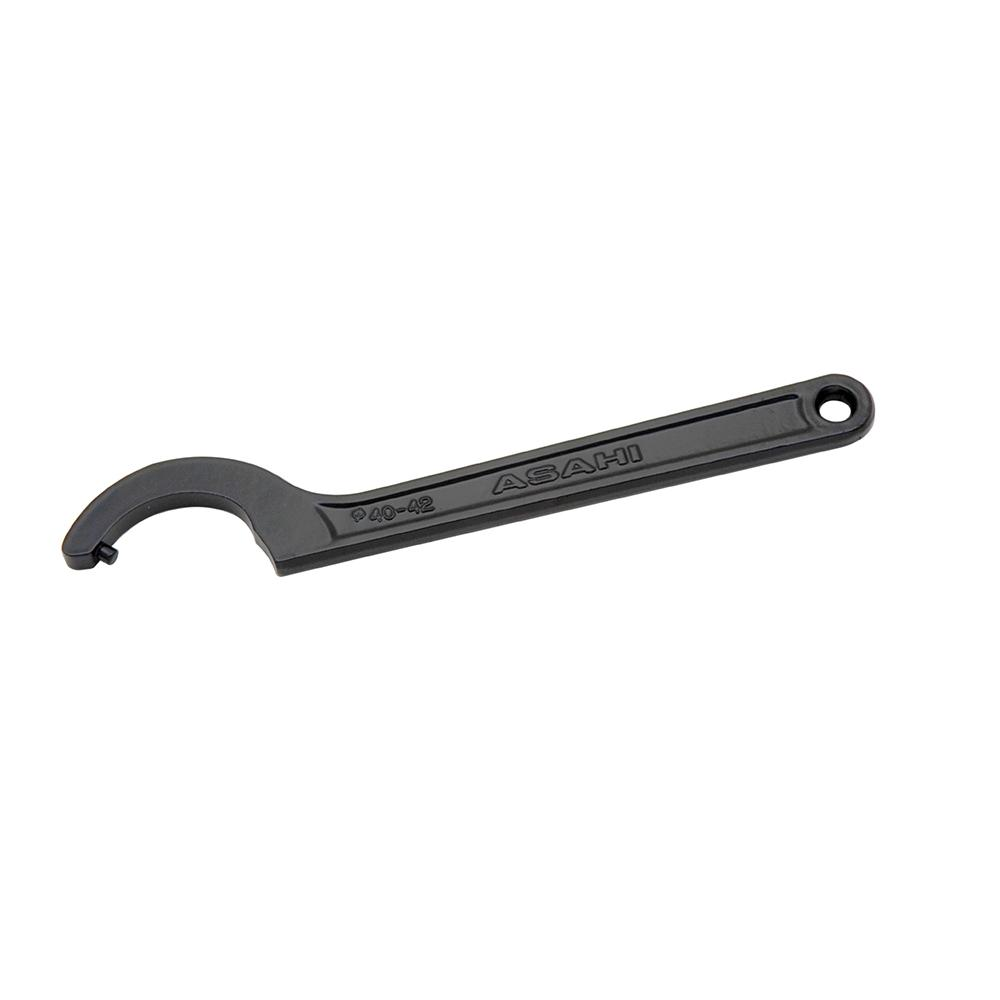

ASAHI — Hook Spanner Pin Type
Family ID: 207-2870
Hook spanner — pin type. Black phosphate finish. Cr-V (FP3438 and above) / S50C (FP3032 and below). Use when groove is larger than pin size. Warning: small groove may break pin. Range: 25–100mm.
12 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 207-2870 | Hook spanner pin type | ASAHI | Model: FP2528 / Range: 25–28mm / Length: 136mm | ||
| 207-2889 | Hook spanner pin type | ASAHI | Model: FP3032 / Range: 30–32mm / Length: 136mm | ||
| 207-2898 | Hook spanner pin type | ASAHI | Model: FP3438 / Range: 34–38mm / Length: 160mm | ||
| 207-2904 | Hook spanner pin type | ASAHI | Model: FP4042 / Range: 40–42mm / Length: 173mm | ||
| 207-2913 | Hook spanner pin type | ASAHI | Model: FP4548 / Range: 45–48mm / Length: 195mm | ||
| 207-2922 | Hook spanner pin type | ASAHI | Model: FP5255 / Range: 50–55mm / Length: 208mm | ||
| 207-2931 | Hook spanner pin type | ASAHI | Model: FP5865 / Range: 58–65mm / Length: 230mm | ||
| 207-2940 | Hook spanner pin type | ASAHI | Model: FP6570 / Range: 65–70mm / Length: 230mm | ||
| 207-2959 | Hook spanner pin type | ASAHI | Model: FP7075 / Range: 70–75mm / Length: 246mm | ||
| 207-2968 | Hook spanner pin type | ASAHI | Model: FP8085 / Range: 80–85mm / Length: 270mm | ||
| 207-4896 | Hook spanner pin type | ASAHI | Model: FP8592 / Range: 85–92mm / Length: 270mm | ||
| 207-2977 | Hook spanner pin type | ASAHI | Model: FP9298 / Range: 92–100mm / Length: 286mm |
