Relay Terminal Block
Autonics

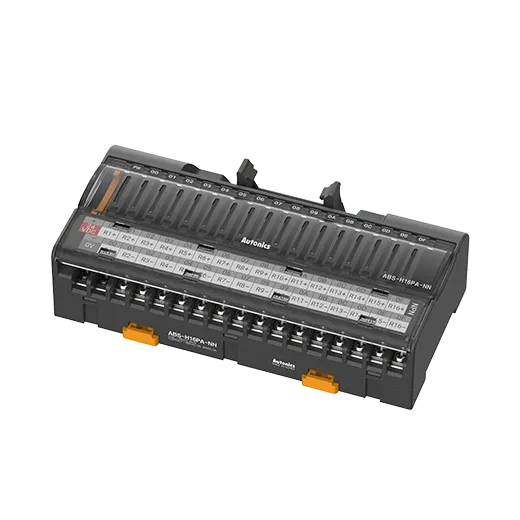

[AUTONICS] ABS Series Screw Relay Terminal Blocks
Family ID: AUTONICS-ABS-SERIES
Screw type relay terminal blocks. Comprehensive connection 16/32-point models, standard 16-point models, and compact 4-point and 1-point models. Multiple relay variants (R2, R25, R26) for different load requirements.
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-ABS-HC16 | — | AUTONICS | Relay terminal block | ABS Series | Screw comprehensive 16-point relay | 16 relay outputs | mechanical relay | 24 VDC coil | Screw terminal | IP20 | comprehensive 16-point | ||
| AUTONICS-ABS-HC32 | — | AUTONICS | Relay terminal block | ABS Series | Screw comprehensive 32-point relay | 32 relay outputs | mechanical relay | 24 VDC coil | Screw terminal | IP20 | comprehensive 32-point | ||
| AUTONICS-ABS-H16 | — | AUTONICS | Relay terminal block | ABS Series | Screw 16-point relay | 16 relay outputs | mechanical relay | 24 VDC coil | Screw terminal | IP20 | screw 16-point | ||
| AUTONICS-ABS-S04 | — | AUTONICS | Relay terminal block | ABS Series | Screw 4-point relay | 4 relay outputs | mechanical relay | 24 VDC coil | Screw terminal | IP20 | screw 4-point | ||
| AUTONICS-ABS-S01 | — | AUTONICS | Relay terminal block | ABS Series | Screw 1-point relay basic | 1 relay output | mechanical relay | 24 VDC coil | Screw terminal | IP20 | screw 1-point basic | ||
| AUTONICS-ABS-S01R2 | — | AUTONICS | Relay terminal block | ABS Series | Screw 1-point relay R2 | 1 relay output | mechanical relay R2 | 24 VDC coil | Screw terminal | IP20 | screw 1-point R2 | ||
| AUTONICS-ABS-S01R25 | — | AUTONICS | Relay terminal block | ABS Series | Screw 1-point relay R25 | 1 relay output | mechanical relay R25 | 24 VDC coil | Screw terminal | IP20 | screw 1-point R25 | ||
| AUTONICS-ABS-S01R26 | — | AUTONICS | Relay terminal block | ABS Series | Screw 1-point relay R26 | 1 relay output | mechanical relay R26 | 24 VDC coil | Screw terminal | IP20 | screw 1-point R26 |
