Remote I/O
Autonics

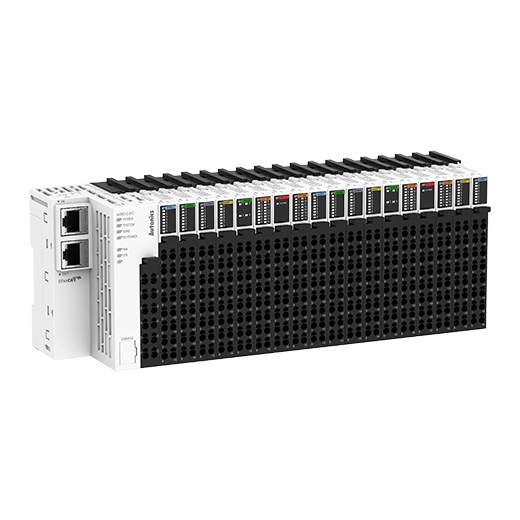

[AUTONICS] ARIO Series Slim Remote I/O
Family ID: AUTONICS-ARIO-SERIES
Slim modular remote I/O system. Network couplers for EtherCAT, EtherNet/IP, PROFINET, CC-Link, CC-Link IE, Modbus TCP, Modbus RTU, DeviceNet, and PROFIBUS DP. Modular I/O blocks: digital input (4/8/16 ch), digital output (4/8/16 ch), analog input (4 ch voltage/current/RTD/TC), analog output (4 ch). Power distribution modules. Screwless push-in terminals for fast wiring. DIN-rail mount. IP20 rated.
29 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-ARIO-C-EC | — | AUTONICS | Remote I/O | ARIO Series | Slim coupler EtherCAT | network slave to internal bus | EtherCAT | 24 VDC | Screwless terminal | IP20 | EtherCAT slave coupler for ARIO modules | ||
| AUTONICS-ARIO-C-EI | — | AUTONICS | Remote I/O | ARIO Series | Slim coupler EtherNet/IP | network slave to internal bus | EtherNet/IP | 24 VDC | Screwless terminal | IP20 | EtherNet/IP slave coupler for ARIO modules | ||
| AUTONICS-ARIO-C-PN | — | AUTONICS | Remote I/O | ARIO Series | Slim coupler PROFINET | network slave to internal bus | PROFINET | 24 VDC | Screwless terminal | IP20 | PROFINET slave coupler for ARIO modules | ||
| AUTONICS-ARIO-C-CL | — | AUTONICS | Remote I/O | ARIO Series | Slim coupler CC-Link | network slave to internal bus | CC-Link | 24 VDC | Screwless terminal | IP20 | CC-Link slave coupler for ARIO modules | ||
| AUTONICS-ARIO-C-CL1 | — | AUTONICS | Remote I/O | ARIO Series | Slim coupler CC-Link IE | network slave to internal bus | CC-Link IE | 24 VDC | Screwless terminal | IP20 | CC-Link IE slave coupler for ARIO modules | ||
| AUTONICS-ARIO-C-MT | — | AUTONICS | Remote I/O | ARIO Series | Slim coupler Modbus TCP | network slave to internal bus | Modbus TCP | 24 VDC | Screwless terminal | IP20 | Modbus TCP slave coupler for ARIO modules | ||
| AUTONICS-ARIO-C-MR | — | AUTONICS | Remote I/O | ARIO Series | Slim coupler Modbus RTU | network slave to internal bus | Modbus RTU | 24 VDC | Screwless terminal | IP20 | Modbus RTU slave coupler for ARIO modules | ||
| AUTONICS-ARIO-C-DN | — | AUTONICS | Remote I/O | ARIO Series | Slim coupler DeviceNet | network slave to internal bus | DeviceNet | 24 VDC | Screwless terminal | IP20 | DeviceNet slave coupler for ARIO modules | ||
| AUTONICS-ARIO-C-PB | — | AUTONICS | Remote I/O | ARIO Series | Slim coupler PROFIBUS DP | network slave to internal bus | PROFIBUS DP | 24 VDC | Screwless terminal | IP20 | PROFIBUS DP slave coupler for ARIO modules | ||
| AUTONICS-ARIO-P-B | — | AUTONICS | Remote I/O | ARIO Series | Slim power module | bus/field power distribution | bus + field | 24 VDC | Screwless terminal | IP20 | Bus power module | ||
| AUTONICS-ARIO-P-F1 | — | AUTONICS | Remote I/O | ARIO Series | Slim power module | bus/field power distribution | bus + field | 24 VDC | Screwless terminal | IP20 | Field power 1A module | ||
| AUTONICS-ARIO-P-F2 | — | AUTONICS | Remote I/O | ARIO Series | Slim power module | bus/field power distribution | bus + field | 24 VDC | Screwless terminal | IP20 | Field power 2A module | ||
| AUTONICS-ARIO-P-M | — | AUTONICS | Remote I/O | ARIO Series | Slim power module | bus/field power distribution | bus + field | 24 VDC | Screwless terminal | IP20 | Main power module | ||
| AUTONICS-ARIO-P-T1 | — | AUTONICS | Remote I/O | ARIO Series | Slim power module | bus/field power distribution | bus + field | 24 VDC | Screwless terminal | IP20 | Terminal type 1 module | ||
| AUTONICS-ARIO-P-T2 | — | AUTONICS | Remote I/O | ARIO Series | Slim power module | bus/field power distribution | bus + field | 24 VDC | Screwless terminal | IP20 | Terminal type 2 module | ||
| AUTONICS-ARIO-P1-T3 | — | AUTONICS | Remote I/O | ARIO Series | Slim power module | bus/field power distribution | bus + field | 24 VDC | Screwless terminal | IP20 | Power 1 terminal 3 module | ||
| AUTONICS-ARIO-P1-T4 | — | AUTONICS | Remote I/O | ARIO Series | Slim power module | bus/field power distribution | bus + field | 24 VDC | Screwless terminal | IP20 | Power 1 terminal 4 module | ||
| AUTONICS-ARIO-P1-T5 | — | AUTONICS | Remote I/O | ARIO Series | Slim power module | bus/field power distribution | bus + field | 24 VDC | Screwless terminal | IP20 | Power 1 terminal 5 module | ||
| AUTONICS-ARIO-P1-T6 | — | AUTONICS | Remote I/O | ARIO Series | Slim power module | bus/field power distribution | bus + field | 24 VDC | Screwless terminal | IP20 | Power 1 terminal 6 module | ||
| AUTONICS-ARIO-S-DI04 | — | AUTONICS | Remote I/O | ARIO Series | Slim 4-ch digital input | NPN/PNP DI | digital input | 24 VDC | Screwless terminal | IP20 | 4-ch digital input module | ||
| AUTONICS-ARIO-S-DI08 | — | AUTONICS | Remote I/O | ARIO Series | Slim 8-ch digital input | NPN/PNP DI | digital input | 24 VDC | Screwless terminal | IP20 | 8-ch digital input module | ||
| AUTONICS-ARIO-S-DI16 | — | AUTONICS | Remote I/O | ARIO Series | Slim 16-ch digital input | NPN/PNP DI | digital input | 24 VDC | Screwless terminal | IP20 | 16-ch digital input module | ||
| AUTONICS-ARIO-S-DO04R | — | AUTONICS | Remote I/O | ARIO Series | Slim 4-ch digital output relay | DO module | digital output | 24 VDC | Screwless terminal | IP20 | 4-ch digital output relay module | ||
| AUTONICS-ARIO-S-DO08T | — | AUTONICS | Remote I/O | ARIO Series | Slim 8-ch digital output transistor | DO module | digital output | 24 VDC | Screwless terminal | IP20 | 8-ch digital output transistor module | ||
| AUTONICS-ARIO-S-DO16T | — | AUTONICS | Remote I/O | ARIO Series | Slim 16-ch digital output transistor | DO module | digital output | 24 VDC | Screwless terminal | IP20 | 16-ch digital output transistor module | ||
| AUTONICS-ARIO-S-AI04 | — | AUTONICS | Remote I/O | ARIO Series | Slim 4-ch analog input voltage/current | AI module | analog input | 24 VDC | Screwless terminal | IP20 | 4-ch analog input voltage/current module | ||
| AUTONICS-ARIO-S-AI04RTD | — | AUTONICS | Remote I/O | ARIO Series | Slim 4-ch RTD input | AI module | analog input | 24 VDC | Screwless terminal | IP20 | 4-ch RTD input module | ||
| AUTONICS-ARIO-S-AI04TC | — | AUTONICS | Remote I/O | ARIO Series | Slim 4-ch thermocouple input | AI module | analog input | 24 VDC | Screwless terminal | IP20 | 4-ch thermocouple input module | ||
| AUTONICS-ARIO-S-AO04 | — | AUTONICS | Remote I/O | ARIO Series | Slim 4-ch analog output voltage/current | AO module | analog output | 24 VDC | Screwless terminal | IP20 | 4-ch analog output voltage/current module |
