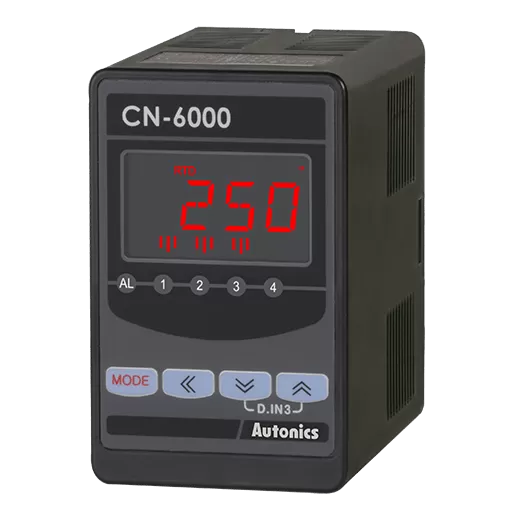

[AUTONICS] CN-6000 Series Isolated Converters

Family ID: AUTONICS-CN-6000-SERIES

Isolated signal conditioners with multi-input support. CN-610 universal input (12 thermocouple types, 5 RTD types, 6 analog mV/V/mA ranges). CN-640 pulse input (0 to 50 kHz). 12-segment LCD display in 3 selectable colors (red/green/yellow). Multiple output options: alarm output (1/2/4 ea), 0-20 mA transmission, 0-10 VDC voltage. High/Low peak input monitoring. Display accuracy ±0.2% F.S.

12 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code	Description	Brand	Spec
AUTONICS-CN-6101-T	—	AUTONICS	Signal conditioner \| CN-6000 Series \| Isolated converter Universal input \| 1 alarm + 0-20 mA transmission \| 1 relay alarm + transmission \| 100-240 VAC \| Screw terminal \| IP50 \| Universal input converter with 1 alarms
AUTONICS-CN-6101-V	—	AUTONICS	Signal conditioner \| CN-6000 Series \| Isolated converter Universal input \| 1 alarm + 0-10 VDC voltage transmission \| 1 relay alarm + transmission \| 100-240 VAC \| Screw terminal \| IP50 \| Universal input converter with 1 alarms
AUTONICS-CN-6102-T	—	AUTONICS	Signal conditioner \| CN-6000 Series \| Isolated converter Universal input \| 2 alarm + 0-20 mA transmission \| 2 relay alarm + transmission \| 100-240 VAC \| Screw terminal \| IP50 \| Universal input converter with 2 alarms
AUTONICS-CN-6102-V	—	AUTONICS	Signal conditioner \| CN-6000 Series \| Isolated converter Universal input \| 2 alarm + 0-10 VDC voltage transmission \| 2 relay alarm + transmission \| 100-240 VAC \| Screw terminal \| IP50 \| Universal input converter with 2 alarms
AUTONICS-CN-6104-T	—	AUTONICS	Signal conditioner \| CN-6000 Series \| Isolated converter Universal input \| 4 alarm + 0-20 mA transmission \| 4 relay alarm + transmission \| 100-240 VAC \| Screw terminal \| IP50 \| Universal input converter with 4 alarms
AUTONICS-CN-6104-V	—	AUTONICS	Signal conditioner \| CN-6000 Series \| Isolated converter Universal input \| 4 alarm + 0-10 VDC voltage transmission \| 4 relay alarm + transmission \| 100-240 VAC \| Screw terminal \| IP50 \| Universal input converter with 4 alarms
AUTONICS-CN-6401-T	—	AUTONICS	Signal conditioner \| CN-6000 Series \| Isolated converter Pulse input \| 1 alarm + 0-20 mA transmission \| 1 relay alarm + transmission \| 100-240 VAC \| Screw terminal \| IP50 \| Pulse input converter with 1 alarms
AUTONICS-CN-6401-V	—	AUTONICS	Signal conditioner \| CN-6000 Series \| Isolated converter Pulse input \| 1 alarm + 0-10 VDC voltage transmission \| 1 relay alarm + transmission \| 100-240 VAC \| Screw terminal \| IP50 \| Pulse input converter with 1 alarms
AUTONICS-CN-6402-T	—	AUTONICS	Signal conditioner \| CN-6000 Series \| Isolated converter Pulse input \| 2 alarm + 0-20 mA transmission \| 2 relay alarm + transmission \| 100-240 VAC \| Screw terminal \| IP50 \| Pulse input converter with 2 alarms
AUTONICS-CN-6402-V	—	AUTONICS	Signal conditioner \| CN-6000 Series \| Isolated converter Pulse input \| 2 alarm + 0-10 VDC voltage transmission \| 2 relay alarm + transmission \| 100-240 VAC \| Screw terminal \| IP50 \| Pulse input converter with 2 alarms
AUTONICS-CN-6404-T	—	AUTONICS	Signal conditioner \| CN-6000 Series \| Isolated converter Pulse input \| 4 alarm + 0-20 mA transmission \| 4 relay alarm + transmission \| 100-240 VAC \| Screw terminal \| IP50 \| Pulse input converter with 4 alarms
AUTONICS-CN-6404-V	—	AUTONICS	Signal conditioner \| CN-6000 Series \| Isolated converter Pulse input \| 4 alarm + 0-10 VDC voltage transmission \| 4 relay alarm + transmission \| 100-240 VAC \| Screw terminal \| IP50 \| Pulse input converter with 4 alarms
