Connector Autonics

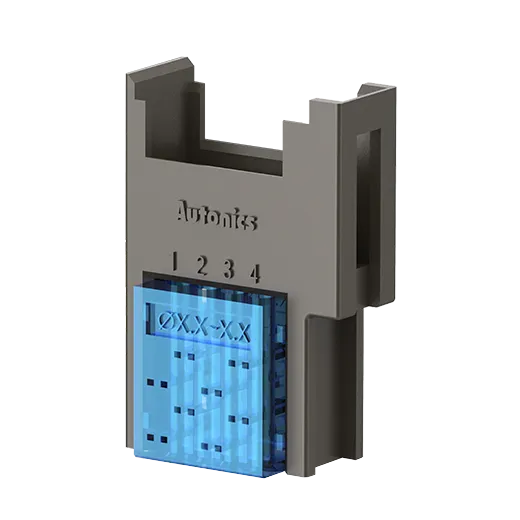

[AUTONICS] CNE Series Sensor Connectors

Family ID: AUTONICS-CNE-SERIES

Sensor connectors with high-density contact pitch of 2 mm. Compatible with e-CON connectors. 3 A current capacity per pin. Compatible with AWG 30-20 cables (insulator OD Ø 0.6-2.0). Wire mount plug, wire mount socket, and board mount socket variants. 9 different color covers for wire thickness identification. Translucent covers for visual inspection.

3 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code	Description	Brand	Spec
AUTONICS-CNE-P	—	AUTONICS	Sensor connector \| CNE Series \| Wire mount plug \| AWG 30-20 cable \| passive \| 32 VAC/DC max \| Wire mount \| IP00 \| wire mount plug 3A
AUTONICS-CNE-S	—	AUTONICS	Sensor connector \| CNE Series \| Wire mount socket \| AWG 30-20 cable \| passive \| 32 VAC/DC max \| Wire mount \| IP00 \| wire mount socket 3A
AUTONICS-CNE-B	—	AUTONICS	Sensor connector \| CNE Series \| Board mount socket \| for plated through-hole PCB \| passive \| 32 VAC/DC max \| PCB mount \| IP00 \| board mount socket 3A
