Sensor Controller
Autonics

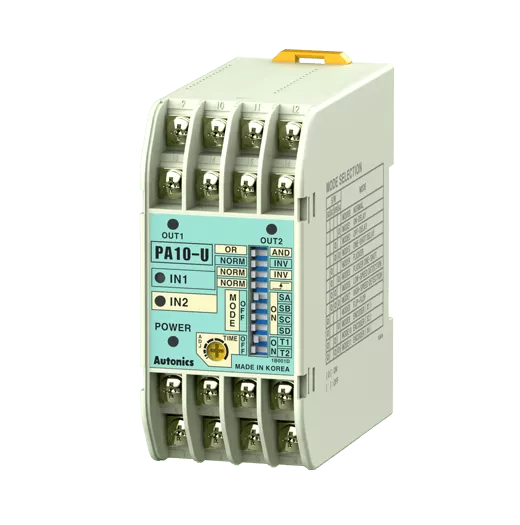

[AUTONICS] PA10 Series Sensor Controllers
Family ID: AUTONICS-PA10-SERIES
Sensor controllers with high-speed output response. DIN-rail or panel mount installation. Multiple variants: PA10-U (logic AND/OR), PA10-V (general-purpose), PA10-W (individual). NPN and PNP input models available. 12 VDC sensor power supply built-in.
5 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-PA10-U | — | AUTONICS | Sensor controller | PA10 Series | Logic AND/OR | 2-input | NPN+PNP relay output | 100-240 VAC | Screw terminal | IP20 | logic AND/OR controller | ||
| AUTONICS-PA10-V-N | — | AUTONICS | Sensor controller | PA10 Series | General-purpose AND | 2-input | NPN input + relay output | 100-240 VAC | Screw terminal | IP20 | NPN input | ||
| AUTONICS-PA10-V-P | — | AUTONICS | Sensor controller | PA10 Series | General-purpose AND | 2-input | PNP input + relay output | 100-240 VAC | Screw terminal | IP20 | PNP input | ||
| AUTONICS-PA10-W-N | — | AUTONICS | Sensor controller | PA10 Series | Individual logic | 2-input | NPN input + 2 relay outputs | 100-240 VAC | Screw terminal | IP20 | individual NPN | ||
| AUTONICS-PA10-W-P | — | AUTONICS | Sensor controller | PA10 Series | Individual logic | 2-input | PNP input + 2 relay outputs | 100-240 VAC | Screw terminal | IP20 | individual PNP |
