![[AUTONICS] PMC-1HS / PMC-2HS Series 1 Axis / 2 Axis Motion Controllers](https://img.prosourcemro.com/2026/04/001-1417.png)
Motion Controller
Autonics

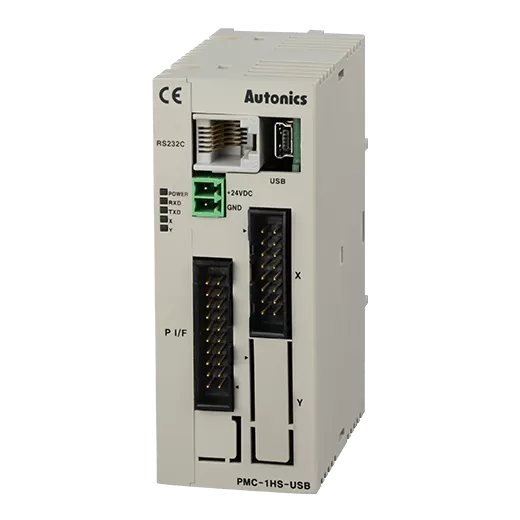

[AUTONICS] PMC-1HS / PMC-2HS Series 1 Axis / 2 Axis Motion Controllers
Family ID: AUTONICS-PMC-1HS-2HS-SERIES
Stand-alone 1-axis and 2-axis motion controllers. High-speed processing up to 4 Mpps. 4 operation modes (Scan, Continuous, Index, Program). 12 control commands and up to 64 program steps per axis. Parallel interface for PLC communication. RS232 and USB communication options. Joystick signal support for XY stage control. EEPROM program storage.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-PMC-1HS-232 | — | AUTONICS | Motion controller | PMC-1HS Series | 1-axis stand-alone | up to 4 Mpps line driver | RS232 + parallel I/O | 24 VDC | Screw terminal | IP20 | 1-axis RS232 motion controller | ||
| AUTONICS-PMC-1HS-USB | — | AUTONICS | Motion controller | PMC-1HS Series | 1-axis stand-alone | up to 4 Mpps line driver | USB + parallel I/O | 24 VDC | Screw terminal | IP20 | 1-axis USB motion controller | ||
| AUTONICS-PMC-2HS-232 | — | AUTONICS | Motion controller | PMC-2HS Series | 2-axis stand-alone | up to 4 Mpps line driver | RS232 + parallel I/O | 24 VDC | Screw terminal | IP20 | 2-axis RS232 motion controller | ||
| AUTONICS-PMC-2HS-USB | — | AUTONICS | Motion controller | PMC-2HS Series | 2-axis stand-alone | up to 4 Mpps line driver | USB + parallel I/O | 24 VDC | Screw terminal | IP20 | 2-axis USB motion controller |
