Key Selector Switch
Autonics

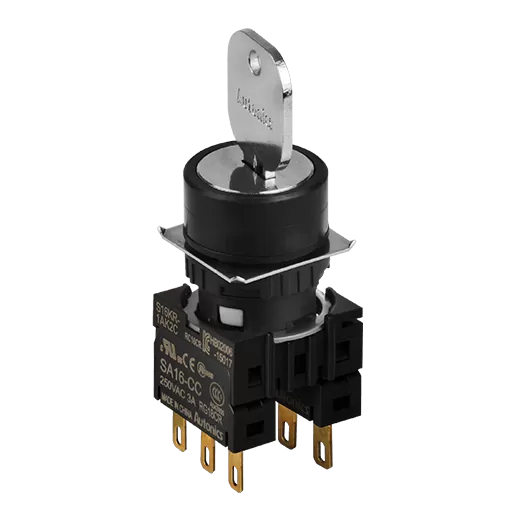

[AUTONICS] S16KR Series 16 mm Key Selector Switches
Family ID: AUTONICS-S16KR-SERIES
Ø 16 mm key selector switches for restricted access control. 2-position and 3-position with key removable in selected positions. Momentary and latching operation.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-S16KR-M2A1A1B | — | AUTONICS | Key selector switch | S16KR Series | Ø 16 mm key selector | 2-position momentary | 1 NO+1 NC mechanical | 250 VAC | Solder terminal | IP65 | 2-position key | ||
| AUTONICS-S16KR-L2A1A1B | — | AUTONICS | Key selector switch | S16KR Series | Ø 16 mm key selector | 2-position latching | 1 NO+1 NC mechanical | 250 VAC | Solder terminal | IP65 | 2-position latching | ||
| AUTONICS-S16KR-M3A1A1B | — | AUTONICS | Key selector switch | S16KR Series | Ø 16 mm key selector | 3-position momentary | 1 NO+1 NC mechanical | 250 VAC | Solder terminal | IP65 | 3-position key | ||
| AUTONICS-S16KR-L3A1A1B | — | AUTONICS | Key selector switch | S16KR Series | Ø 16 mm key selector | 3-position latching | 1 NO+1 NC mechanical | 250 VAC | Solder terminal | IP65 | 3-position latching |
