Selector Switch Autonics

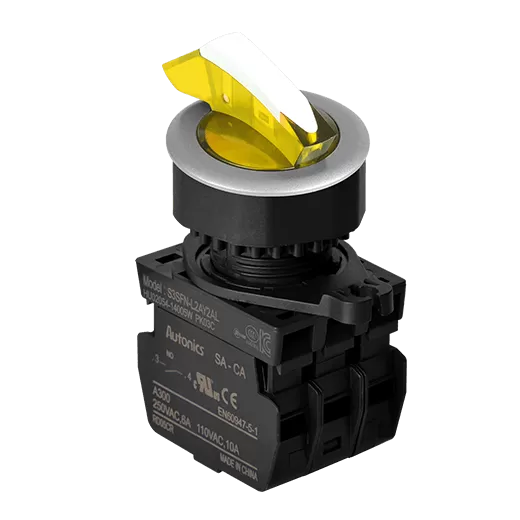

[AUTONICS] S3SF Series 30 mm Selector Switches

Family ID: AUTONICS-S3SF-SERIES

Ø 30 mm selector switches with flat bezel type. 2-position and 3-position variants.

8 product codes available in this family

Product Codes & Specifications

	Product Code	Description	Brand	Spec
	AUTONICS-S3SF-M2A1A1B	—	AUTONICS	Selector switch \| S3SF Series \| Ø 30 mm flat selector \| 2-position momentary \| 1NO1NC mechanical \| 250 VAC \| Screw terminal \| IP65 \| 30 mm 2-position
	AUTONICS-S3SF-M2A2A2B	—	AUTONICS	Selector switch \| S3SF Series \| Ø 30 mm flat selector \| 2-position momentary \| 2NO2NC mechanical \| 250 VAC \| Screw terminal \| IP65 \| 30 mm 2-position
	AUTONICS-S3SF-M3A1A1B	—	AUTONICS	Selector switch \| S3SF Series \| Ø 30 mm flat selector \| 3-position momentary \| 1NO1NC mechanical \| 250 VAC \| Screw terminal \| IP65 \| 30 mm 3-position
	AUTONICS-S3SF-M3A2A2B	—	AUTONICS	Selector switch \| S3SF Series \| Ø 30 mm flat selector \| 3-position momentary \| 2NO2NC mechanical \| 250 VAC \| Screw terminal \| IP65 \| 30 mm 3-position
	AUTONICS-S3SF-L2A1A1B	—	AUTONICS	Selector switch \| S3SF Series \| Ø 30 mm flat selector \| 2-position latching \| 1NO1NC mechanical \| 250 VAC \| Screw terminal \| IP65 \| 30 mm 2-position
	AUTONICS-S3SF-L2A2A2B	—	AUTONICS	Selector switch \| S3SF Series \| Ø 30 mm flat selector \| 2-position latching \| 2NO2NC mechanical \| 250 VAC \| Screw terminal \| IP65 \| 30 mm 2-position
	AUTONICS-S3SF-L3A1A1B	—	AUTONICS	Selector switch \| S3SF Series \| Ø 30 mm flat selector \| 3-position latching \| 1NO1NC mechanical \| 250 VAC \| Screw terminal \| IP65 \| 30 mm 3-position
	AUTONICS-S3SF-L3A2A2B	—	AUTONICS	Selector switch \| S3SF Series \| Ø 30 mm flat selector \| 3-position latching \| 2NO2NC mechanical \| 250 VAC \| Screw terminal \| IP65 \| 30 mm 3-position
