![[AUTONICS] SFDL Series Safety Door Lock Switches](https://img.prosourcemro.com/2026/04/001-1335.png)
Door Switch
Autonics

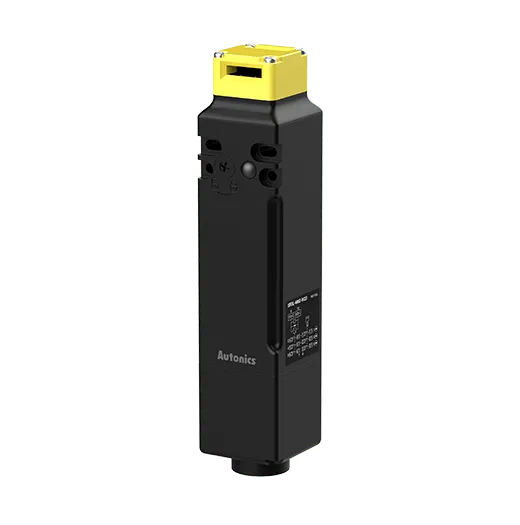

[AUTONICS] SFDL Series Safety Door Lock Switches
Family ID: AUTONICS-SFDL-SERIES
Safety door lock switches with rotatable head for 5-direction operation key insertion. 4/5/6-contact options, terminal and M12 connector types. Manual unlock function (release key). Locking pullout strength ≥ 1300 N. Mechanical life ≥ 1,000,000 operations. Standard cross-type and special rotating release keys. IEC/EN 60947-5-1, EN ISO 14119, GS-ET-15, UL 508, S-Mark certified. IP67 rated.
10 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-SFDL-MAA-24 | — | AUTONICS | Safety door lock switch | SFDL Series | Door lock with rotatable head | power-to-unlock 4-contact 2A2B 24 VDC | Mechanical contact | 24 VDC solenoid | Terminal | IP67 | metallic head 5-direction insertion | ||
| AUTONICS-SFDL-MAA-C24 | — | AUTONICS | Safety door lock switch | SFDL Series | Door lock with rotatable head | power-to-unlock 4-contact 2A2B 24 VDC | Mechanical contact | 24 VDC solenoid | M12 connector | IP67 | metallic head 5-direction insertion | ||
| AUTONICS-SFDL-MBB-24 | — | AUTONICS | Safety door lock switch | SFDL Series | Door lock with rotatable head | power-to-unlock 4-contact 2B2B 24 VDC | Mechanical contact | 24 VDC solenoid | Terminal | IP67 | metallic head 5-direction insertion | ||
| AUTONICS-SFDL-MBB-C24 | — | AUTONICS | Safety door lock switch | SFDL Series | Door lock with rotatable head | power-to-unlock 4-contact 2B2B 24 VDC | Mechanical contact | 24 VDC solenoid | M12 connector | IP67 | metallic head 5-direction insertion | ||
| AUTONICS-SFDL-MAB-24 | — | AUTONICS | Safety door lock switch | SFDL Series | Door lock with rotatable head | power-to-unlock 5-contact 2A2B+1A 24 VDC | Mechanical contact | 24 VDC solenoid | Terminal | IP67 | metallic head 5-direction insertion | ||
| AUTONICS-SFDL-MAB-C24 | — | AUTONICS | Safety door lock switch | SFDL Series | Door lock with rotatable head | power-to-unlock 5-contact 2A2B+1A 24 VDC | Mechanical contact | 24 VDC solenoid | M12 connector | IP67 | metallic head 5-direction insertion | ||
| AUTONICS-SFDL-SAA-24 | — | AUTONICS | Safety door lock switch | SFDL Series | Door lock with rotatable head | spring-to-unlock 4-contact 2A2B 24 VDC | Mechanical contact | 24 VDC solenoid | Terminal | IP67 | metallic head 5-direction insertion | ||
| AUTONICS-SFDL-SAA-C24 | — | AUTONICS | Safety door lock switch | SFDL Series | Door lock with rotatable head | spring-to-unlock 4-contact 2A2B 24 VDC | Mechanical contact | 24 VDC solenoid | M12 connector | IP67 | metallic head 5-direction insertion | ||
| AUTONICS-SFDL-SAB-24 | — | AUTONICS | Safety door lock switch | SFDL Series | Door lock with rotatable head | spring-to-unlock 5-contact 2A2B+1A 24 VDC | Mechanical contact | 24 VDC solenoid | Terminal | IP67 | metallic head 5-direction insertion | ||
| AUTONICS-SFDL-SAB-C24 | — | AUTONICS | Safety door lock switch | SFDL Series | Door lock with rotatable head | spring-to-unlock 5-contact 2A2B+1A 24 VDC | Mechanical contact | 24 VDC solenoid | M12 connector | IP67 | metallic head 5-direction insertion |
