![[AUTONICS] SFL Series Safety Light Curtains Standard Type](https://img.prosourcemro.com/2026/04/001-1327.png)
Light Curtain
Autonics

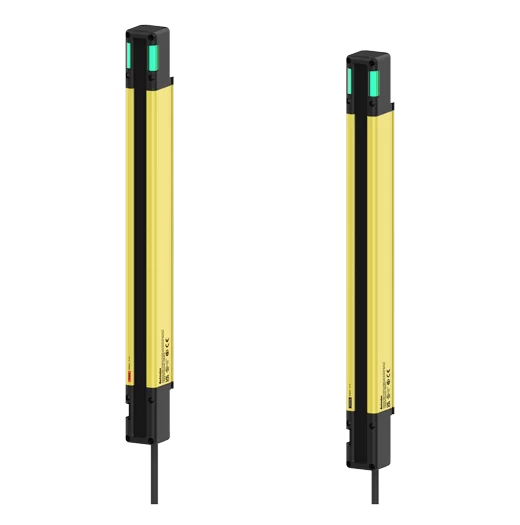

[AUTONICS] SFL Series Safety Light Curtains Standard Type
Family ID: AUTONICS-SFL-SERIES
Type 4 ESPE (AOPD) safety light curtains compliant with SIL3, SIL CL3, Category 4, PLe. Three detection types: finger (Ø 14 mm), hand (Ø 20 mm), hand-body (Ø 30 mm). 0.2-10/15 m sensing distance with short/long mode switch. NPN/PNP OSSD output selectable. Various protective heights from 144 to 1868 mm. Up to 3-set series connection. CE, UKCA, UL Listed, S-Mark, KCs certified. IP65/IP67/IP67G/IP69K rated.
50 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-SFL14-016-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE finger detection | 0.2-10 m, 16 axes, 9 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 finger Ø 14 mm | ||
| AUTONICS-SFL14-016-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE finger detection | 0.2-10 m, 16 axes, 9 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 finger Ø 14 mm | ||
| AUTONICS-SFL14-024-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE finger detection | 0.2-10 m, 24 axes, 9 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 finger Ø 14 mm | ||
| AUTONICS-SFL14-024-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE finger detection | 0.2-10 m, 24 axes, 9 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 finger Ø 14 mm | ||
| AUTONICS-SFL14-032-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE finger detection | 0.2-10 m, 32 axes, 9 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 finger Ø 14 mm | ||
| AUTONICS-SFL14-032-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE finger detection | 0.2-10 m, 32 axes, 9 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 finger Ø 14 mm | ||
| AUTONICS-SFL14-040-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE finger detection | 0.2-10 m, 40 axes, 9 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 finger Ø 14 mm | ||
| AUTONICS-SFL14-040-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE finger detection | 0.2-10 m, 40 axes, 9 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 finger Ø 14 mm | ||
| AUTONICS-SFL14-048-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE finger detection | 0.2-10 m, 48 axes, 9 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 finger Ø 14 mm | ||
| AUTONICS-SFL14-048-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE finger detection | 0.2-10 m, 48 axes, 9 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 finger Ø 14 mm | ||
| AUTONICS-SFL14-056-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE finger detection | 0.2-10 m, 56 axes, 9 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 finger Ø 14 mm | ||
| AUTONICS-SFL14-056-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE finger detection | 0.2-10 m, 56 axes, 9 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 finger Ø 14 mm | ||
| AUTONICS-SFL14-064-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE finger detection | 0.2-10 m, 64 axes, 9 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 finger Ø 14 mm | ||
| AUTONICS-SFL14-064-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE finger detection | 0.2-10 m, 64 axes, 9 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 finger Ø 14 mm | ||
| AUTONICS-SFL14-072-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE finger detection | 0.2-10 m, 72 axes, 9 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 finger Ø 14 mm | ||
| AUTONICS-SFL14-072-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE finger detection | 0.2-10 m, 72 axes, 9 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 finger Ø 14 mm | ||
| AUTONICS-SFL14-080-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE finger detection | 0.2-10 m, 80 axes, 9 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 finger Ø 14 mm | ||
| AUTONICS-SFL14-080-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE finger detection | 0.2-10 m, 80 axes, 9 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 finger Ø 14 mm | ||
| AUTONICS-SFL14-096-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE finger detection | 0.2-10 m, 96 axes, 9 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 finger Ø 14 mm | ||
| AUTONICS-SFL14-096-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE finger detection | 0.2-10 m, 96 axes, 9 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 finger Ø 14 mm | ||
| AUTONICS-SFL14-112-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE finger detection | 0.2-10 m, 112 axes, 9 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 finger Ø 14 mm | ||
| AUTONICS-SFL14-112-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE finger detection | 0.2-10 m, 112 axes, 9 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 finger Ø 14 mm | ||
| AUTONICS-SFL20-012-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand detection | 0.2-15 m, 12 axes, 15 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand Ø 20 mm | ||
| AUTONICS-SFL20-012-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand detection | 0.2-15 m, 12 axes, 15 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand Ø 20 mm | ||
| AUTONICS-SFL20-016-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand detection | 0.2-15 m, 16 axes, 15 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand Ø 20 mm | ||
| AUTONICS-SFL20-016-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand detection | 0.2-15 m, 16 axes, 15 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand Ø 20 mm | ||
| AUTONICS-SFL20-024-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand detection | 0.2-15 m, 24 axes, 15 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand Ø 20 mm | ||
| AUTONICS-SFL20-024-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand detection | 0.2-15 m, 24 axes, 15 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand Ø 20 mm | ||
| AUTONICS-SFL20-032-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand detection | 0.2-15 m, 32 axes, 15 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand Ø 20 mm | ||
| AUTONICS-SFL20-032-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand detection | 0.2-15 m, 32 axes, 15 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand Ø 20 mm | ||
| AUTONICS-SFL20-040-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand detection | 0.2-15 m, 40 axes, 15 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand Ø 20 mm | ||
| AUTONICS-SFL20-040-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand detection | 0.2-15 m, 40 axes, 15 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand Ø 20 mm | ||
| AUTONICS-SFL20-048-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand detection | 0.2-15 m, 48 axes, 15 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand Ø 20 mm | ||
| AUTONICS-SFL20-048-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand detection | 0.2-15 m, 48 axes, 15 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand Ø 20 mm | ||
| AUTONICS-SFL20-056-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand detection | 0.2-15 m, 56 axes, 15 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand Ø 20 mm | ||
| AUTONICS-SFL20-056-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand detection | 0.2-15 m, 56 axes, 15 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand Ø 20 mm | ||
| AUTONICS-SFL20-064-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand detection | 0.2-15 m, 64 axes, 15 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand Ø 20 mm | ||
| AUTONICS-SFL20-064-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand detection | 0.2-15 m, 64 axes, 15 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand Ø 20 mm | ||
| AUTONICS-SFL20-068-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand detection | 0.2-15 m, 68 axes, 15 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand Ø 20 mm | ||
| AUTONICS-SFL20-068-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand detection | 0.2-15 m, 68 axes, 15 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand Ø 20 mm | ||
| AUTONICS-SFL30-042-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand-body detection | 0.2-15 m, 42 axes, 25 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand-body Ø 30 mm | ||
| AUTONICS-SFL30-042-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand-body detection | 0.2-15 m, 42 axes, 25 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand-body Ø 30 mm | ||
| AUTONICS-SFL30-050-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand-body detection | 0.2-15 m, 50 axes, 25 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand-body Ø 30 mm | ||
| AUTONICS-SFL30-050-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand-body detection | 0.2-15 m, 50 axes, 25 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand-body Ø 30 mm | ||
| AUTONICS-SFL30-058-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand-body detection | 0.2-15 m, 58 axes, 25 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand-body Ø 30 mm | ||
| AUTONICS-SFL30-058-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand-body detection | 0.2-15 m, 58 axes, 25 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand-body Ø 30 mm | ||
| AUTONICS-SFL30-066-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand-body detection | 0.2-15 m, 66 axes, 25 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand-body Ø 30 mm | ||
| AUTONICS-SFL30-066-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand-body detection | 0.2-15 m, 66 axes, 25 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand-body Ø 30 mm | ||
| AUTONICS-SFL30-075-T | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand-body detection | 0.2-15 m, 75 axes, 25 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | Cable type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand-body Ø 30 mm | ||
| AUTONICS-SFL30-075-C | — | AUTONICS | Safety light curtain | SFL Series | Through-beam Type 4 ESPE hand-body detection | 0.2-15 m, 75 axes, 25 mm pitch | NPN/PNP OSSD (selectable) | 24 VDC | M12 connector type | IP65/IP67/IP67G/IP69K | Category 4 PLe SIL3 hand-body Ø 30 mm |
