Safety I/O
Autonics

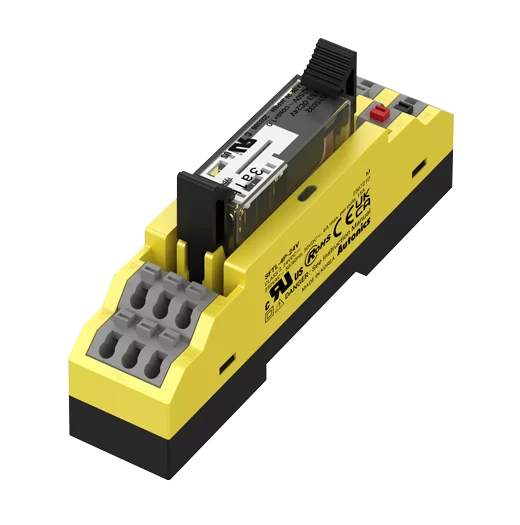

[AUTONICS] SFT Series Safety Relay Terminal Blocks
Family ID: AUTONICS-SFT-SERIES
Safety relay terminal blocks with force-guided contacts for safe control system operation (IEC 61810-3). 4-pole and 6-pole models with various NO/NC contact configurations. Screw and screwless terminal types. 250 VAC/30 VDC switching capability, 6 A continuous current. Operation indicator (green LED). DIN rail and screw mount installation.
10 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-SFTS-4P-24V-2A2B | — | AUTONICS | Safety I/O terminal block | SFT Series | Safety relay terminal 4P | 2NO+2NC SFS2 forced-guided | Mechanical relay contact | 24 VDC coil | Screw terminal | IP20 | DIN-rail or screw mount | ||
| AUTONICS-SFTS-4P-24V-3A1B | — | AUTONICS | Safety I/O terminal block | SFT Series | Safety relay terminal 4P | 3NO+1NC SFS3 forced-guided | Mechanical relay contact | 24 VDC coil | Screw terminal | IP20 | DIN-rail or screw mount | ||
| AUTONICS-SFTL-4P-24V-2A2B | — | AUTONICS | Safety I/O terminal block | SFT Series | Safety relay terminal 4P | 2NO+2NC SFS2 forced-guided | Mechanical relay contact | 24 VDC coil | Screwless terminal | IP20 | DIN-rail or screw mount | ||
| AUTONICS-SFTL-4P-24V-3A1B | — | AUTONICS | Safety I/O terminal block | SFT Series | Safety relay terminal 4P | 3NO+1NC SFS3 forced-guided | Mechanical relay contact | 24 VDC coil | Screwless terminal | IP20 | DIN-rail or screw mount | ||
| AUTONICS-SFTS-6P-24V-4A2B | — | AUTONICS | Safety I/O terminal block | SFT Series | Safety relay terminal 6P | 4NO+2NC SFS4 forced-guided | Mechanical relay contact | 24 VDC coil | Screw terminal | IP20 | DIN-rail or screw mount | ||
| AUTONICS-SFTS-6P-24V-5A1B | — | AUTONICS | Safety I/O terminal block | SFT Series | Safety relay terminal 6P | 5NO+1NC SFS5 forced-guided | Mechanical relay contact | 24 VDC coil | Screw terminal | IP20 | DIN-rail or screw mount | ||
| AUTONICS-SFTS-6P-24V-3A3B | — | AUTONICS | Safety I/O terminal block | SFT Series | Safety relay terminal 6P | 3NO+3NC SFS6 forced-guided | Mechanical relay contact | 24 VDC coil | Screw terminal | IP20 | DIN-rail or screw mount | ||
| AUTONICS-SFTL-6P-24V-4A2B | — | AUTONICS | Safety I/O terminal block | SFT Series | Safety relay terminal 6P | 4NO+2NC SFS4 forced-guided | Mechanical relay contact | 24 VDC coil | Screwless terminal | IP20 | DIN-rail or screw mount | ||
| AUTONICS-SFTL-6P-24V-5A1B | — | AUTONICS | Safety I/O terminal block | SFT Series | Safety relay terminal 6P | 5NO+1NC SFS5 forced-guided | Mechanical relay contact | 24 VDC coil | Screwless terminal | IP20 | DIN-rail or screw mount | ||
| AUTONICS-SFTL-6P-24V-3A3B | — | AUTONICS | Safety I/O terminal block | SFT Series | Safety relay terminal 6P | 3NO+3NC SFS6 forced-guided | Mechanical relay contact | 24 VDC coil | Screwless terminal | IP20 | DIN-rail or screw mount |
