![[AUTONICS] SPB-A Series DIN Rail Switching Mode Power Supplies](https://img.prosourcemro.com/2026/04/001-1413.png)
SMPS
Autonics

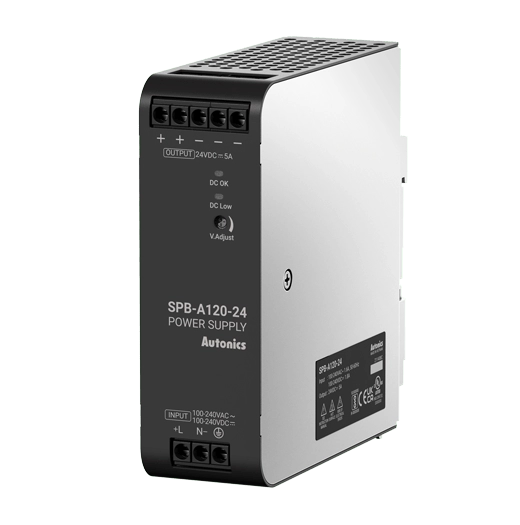

[AUTONICS] SPB-A Series DIN Rail Switching Mode Power Supplies
Family ID: AUTONICS-SPB-A-SERIES
DIN-rail mount switching mode power supplies. Wide lineup from 15 W to 480 W. PFC circuit for improved power factor. Compact size for maximum space efficiency. Output indicator (green LED) and low voltage indicator (red LED). Over-current, over-voltage, output short-circuit, and overheating protection. Wide ambient temperature range -20 to 70 °C. Parallel operation supported. EN61000-6-2/-6-4 compliant. IP20 rated.
13 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-SPB-A015-12 | — | AUTONICS | Switching mode power supply | SPB-A Series | DIN-rail mount 15 W | 12 VDC output | AC-DC | 100-240 VAC | DIN-rail screw terminal | IP20 | DIN-rail SMPS PFC built-in | ||
| AUTONICS-SPB-A015-24 | — | AUTONICS | Switching mode power supply | SPB-A Series | DIN-rail mount 15 W | 24 VDC output | AC-DC | 100-240 VAC | DIN-rail screw terminal | IP20 | DIN-rail SMPS PFC built-in | ||
| AUTONICS-SPB-A030-12 | — | AUTONICS | Switching mode power supply | SPB-A Series | DIN-rail mount 30 W | 12 VDC output | AC-DC | 100-240 VAC | DIN-rail screw terminal | IP20 | DIN-rail SMPS PFC built-in | ||
| AUTONICS-SPB-A030-24 | — | AUTONICS | Switching mode power supply | SPB-A Series | DIN-rail mount 30 W | 24 VDC output | AC-DC | 100-240 VAC | DIN-rail screw terminal | IP20 | DIN-rail SMPS PFC built-in | ||
| AUTONICS-SPB-A060-12 | — | AUTONICS | Switching mode power supply | SPB-A Series | DIN-rail mount 60 W | 12 VDC output | AC-DC | 100-240 VAC | DIN-rail screw terminal | IP20 | DIN-rail SMPS PFC built-in | ||
| AUTONICS-SPB-A060-24 | — | AUTONICS | Switching mode power supply | SPB-A Series | DIN-rail mount 60 W | 24 VDC output | AC-DC | 100-240 VAC | DIN-rail screw terminal | IP20 | DIN-rail SMPS PFC built-in | ||
| AUTONICS-SPB-A120-12 | — | AUTONICS | Switching mode power supply | SPB-A Series | DIN-rail mount 120 W | 12 VDC output | AC-DC | 100-240 VAC | DIN-rail screw terminal | IP20 | DIN-rail SMPS PFC built-in | ||
| AUTONICS-SPB-A120-24 | — | AUTONICS | Switching mode power supply | SPB-A Series | DIN-rail mount 120 W | 24 VDC output | AC-DC | 100-240 VAC | DIN-rail screw terminal | IP20 | DIN-rail SMPS PFC built-in | ||
| AUTONICS-SPB-A240-12 | — | AUTONICS | Switching mode power supply | SPB-A Series | DIN-rail mount 240 W | 12 VDC output | AC-DC | 100-240 VAC | DIN-rail screw terminal | IP20 | DIN-rail SMPS PFC built-in | ||
| AUTONICS-SPB-A240-24 | — | AUTONICS | Switching mode power supply | SPB-A Series | DIN-rail mount 240 W | 24 VDC output | AC-DC | 100-240 VAC | DIN-rail screw terminal | IP20 | DIN-rail SMPS PFC built-in | ||
| AUTONICS-SPB-A240-48 | — | AUTONICS | Switching mode power supply | SPB-A Series | DIN-rail mount 240 W | 48 VDC output | AC-DC | 100-240 VAC | DIN-rail screw terminal | IP20 | DIN-rail SMPS PFC built-in | ||
| AUTONICS-SPB-A480-24 | — | AUTONICS | Switching mode power supply | SPB-A Series | DIN-rail mount 480 W | 24 VDC output | AC-DC | 100-240 VAC | DIN-rail screw terminal | IP20 | DIN-rail SMPS PFC built-in | ||
| AUTONICS-SPB-A480-48 | — | AUTONICS | Switching mode power supply | SPB-A Series | DIN-rail mount 480 W | 48 VDC output | AC-DC | 100-240 VAC | DIN-rail screw terminal | IP20 | DIN-rail SMPS PFC built-in |
