Power Controller
Autonics

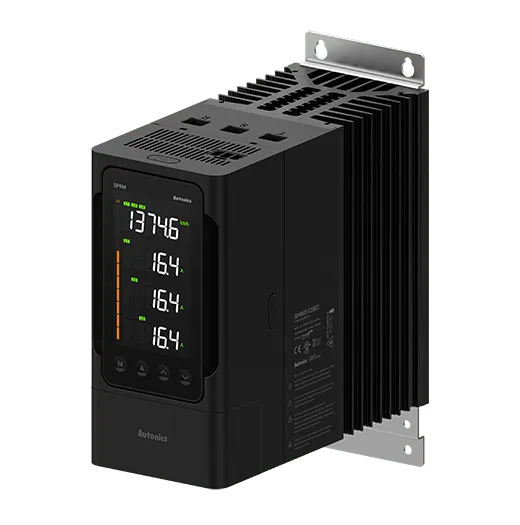

[AUTONICS] SPRM Series Multi-Channel Power Controllers
Family ID: AUTONICS-SPRM-SERIES
Multi-channel single-phase or 3-phase power controllers. Wide rated voltage range 220-440 VAC. Multiple current ratings 25/40/55/70/90/110/160 A. 4-line LCD display for monitoring load current/voltage/output/resistance/heatsink temperature/power. Detachable display module. Auto control via 4-20 mA, 0-5/1-5/0-10 V, external adjuster, RS485, or EtherCAT. SCCR rating 100 kA (UL).
14 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-SPRM3-F025R | — | AUTONICS | Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 25 A load | RS485 | 220-440 VAC | Screw terminal | IP20 | multi-channel RS485 | ||
| AUTONICS-SPRM3-F025EC | — | AUTONICS | Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 25 A load | RS485 + EtherCAT | 220-440 VAC | Screw terminal | IP20 | multi-channel EtherCAT | ||
| AUTONICS-SPRM3-F040R | — | AUTONICS | Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 40 A load | RS485 | 220-440 VAC | Screw terminal | IP20 | multi-channel RS485 | ||
| AUTONICS-SPRM3-F040EC | — | AUTONICS | Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 40 A load | RS485 + EtherCAT | 220-440 VAC | Screw terminal | IP20 | multi-channel EtherCAT | ||
| AUTONICS-SPRM3-F055R | — | AUTONICS | Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 55 A load | RS485 | 220-440 VAC | Screw terminal | IP20 | multi-channel RS485 | ||
| AUTONICS-SPRM3-F055EC | — | AUTONICS | Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 55 A load | RS485 + EtherCAT | 220-440 VAC | Screw terminal | IP20 | multi-channel EtherCAT | ||
| AUTONICS-SPRM3-F070R | — | AUTONICS | Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 70 A load | RS485 | 220-440 VAC | Screw terminal | IP20 | multi-channel RS485 | ||
| AUTONICS-SPRM3-F070EC | — | AUTONICS | Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 70 A load | RS485 + EtherCAT | 220-440 VAC | Screw terminal | IP20 | multi-channel EtherCAT | ||
| AUTONICS-SPRM3-F090R | — | AUTONICS | Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 90 A load | RS485 | 220-440 VAC | Screw terminal | IP20 | multi-channel RS485 | ||
| AUTONICS-SPRM3-F090EC | — | AUTONICS | Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 90 A load | RS485 + EtherCAT | 220-440 VAC | Screw terminal | IP20 | multi-channel EtherCAT | ||
| AUTONICS-SPRM3-F110R | — | AUTONICS | Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 10 A load | RS485 | 220-440 VAC | Screw terminal | IP20 | multi-channel RS485 | ||
| AUTONICS-SPRM3-F110EC | — | AUTONICS | Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 10 A load | RS485 + EtherCAT | 220-440 VAC | Screw terminal | IP20 | multi-channel EtherCAT | ||
| AUTONICS-SPRM3-F160R | — | AUTONICS | Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 60 A load | RS485 | 220-440 VAC | Screw terminal | IP20 | multi-channel RS485 | ||
| AUTONICS-SPRM3-F160EC | — | AUTONICS | Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 60 A load | RS485 + EtherCAT | 220-440 VAC | Screw terminal | IP20 | multi-channel EtherCAT |
