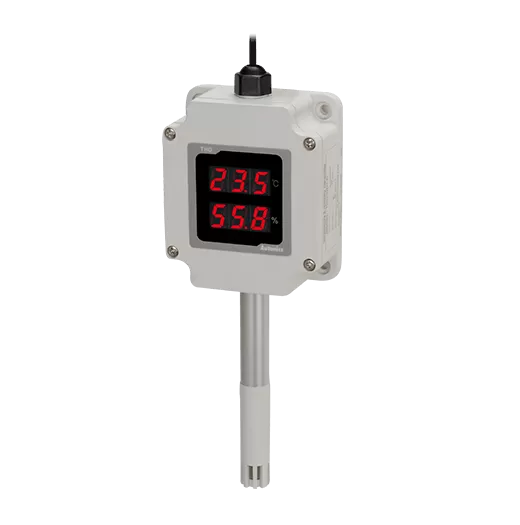

[AUTONICS] THD Series Temperature / Humidity Sensors

Family ID: AUTONICS-THD-SERIES

Compact temperature and humidity sensors with built-in high-accuracy sensor element. Non-display, single display, and dual display variants. Multiple output options: DPt100 RTD, 4-20 mA, 1-5 VDC, and RS485 Modbus RTU. Measurement range -19.9 to 60.0 C and 0.0 to 99.9 %RH. IP10 (non-display) or IP65 (display) rated.

17 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code	Description	Brand	Spec
AUTONICS-THD-R-PT	—	AUTONICS	Temperature/humidity sensor \| THD Series \| Non-display Pt100 RTD \| -19.9 to 60.0 C / 0-99.9 %RH \| DPt100 ohm RTD output \| 24 VDC \| Cable type \| IP10 \| non-display Pt100
AUTONICS-THD-R-PT/C	—	AUTONICS	Temperature/humidity sensor \| THD Series \| Non-display Pt100+4-20mA \| -19.9 to 60.0 C / 0-99.9 %RH \| DPt100 + 4-20 mA \| 24 VDC \| Cable type \| IP10 \| non-display dual output
AUTONICS-THD-R-C	—	AUTONICS	Temperature/humidity sensor \| THD Series \| Non-display 4-20 mA \| -19.9 to 60.0 C / 0-99.9 %RH \| 4-20 mA current \| 24 VDC \| Cable type \| IP10 \| non-display analog current
AUTONICS-THD-R-V	—	AUTONICS	Temperature/humidity sensor \| THD Series \| Non-display 1-5 VDC \| -19.9 to 60.0 C / 0-99.9 %RH \| 1-5 VDC voltage \| 24 VDC \| Cable type \| IP10 \| non-display analog voltage
AUTONICS-THD-R-T	—	AUTONICS	Temperature/humidity sensor \| THD Series \| Non-display RS485 \| -19.9 to 60.0 C / 0-99.9 %RH \| RS485 Modbus RTU \| 24 VDC \| Cable type \| IP10 \| non-display Modbus
AUTONICS-THD-D-C	—	AUTONICS	Temperature/humidity sensor \| THD Series \| Single display desk-mount \| -19.9 to 60.0 C / 0-99.9 %RH \| 4-20 mA \| 24 VDC \| Cable type \| IP65 \| 7-segment LED display
AUTONICS-THD-DD-C	—	AUTONICS	Temperature/humidity sensor \| THD Series \| Dual display desk-mount \| -19.9 to 60.0 C / 0-99.9 %RH \| 4-20 mA \| 24 VDC \| Cable type \| IP65 \| dual 7-segment LED display
AUTONICS-THD-D-V	—	AUTONICS	Temperature/humidity sensor \| THD Series \| Single display desk-mount \| -19.9 to 60.0 C / 0-99.9 %RH \| 1-5 VDC \| 24 VDC \| Cable type \| IP65 \| 7-segment LED display
AUTONICS-THD-DD-V	—	AUTONICS	Temperature/humidity sensor \| THD Series \| Dual display desk-mount \| -19.9 to 60.0 C / 0-99.9 %RH \| 1-5 VDC \| 24 VDC \| Cable type \| IP65 \| dual 7-segment LED display
AUTONICS-THD-D-T	—	AUTONICS	Temperature/humidity sensor \| THD Series \| Single display desk-mount \| -19.9 to 60.0 C / 0-99.9 %RH \| RS485 \| 24 VDC \| Cable type \| IP65 \| 7-segment LED display
AUTONICS-THD-DD-T	—	AUTONICS	Temperature/humidity sensor \| THD Series \| Dual display desk-mount \| -19.9 to 60.0 C / 0-99.9 %RH \| RS485 \| 24 VDC \| Cable type \| IP65 \| dual 7-segment LED display
AUTONICS-THD-W-C	—	AUTONICS	Temperature/humidity sensor \| THD Series \| Single display wall-mount \| -19.9 to 60.0 C / 0-99.9 %RH \| 4-20 mA \| 24 VDC \| Cable type \| IP65 \| 7-segment LED display
AUTONICS-THD-WD-C	—	AUTONICS	Temperature/humidity sensor \| THD Series \| Dual display wall-mount \| -19.9 to 60.0 C / 0-99.9 %RH \| 4-20 mA \| 24 VDC \| Cable type \| IP65 \| dual 7-segment LED display
AUTONICS-THD-W-V	—	AUTONICS	Temperature/humidity sensor \| THD Series \| Single display wall-mount \| -19.9 to 60.0 C / 0-99.9 %RH \| 1-5 VDC \| 24 VDC \| Cable type \| IP65 \| 7-segment LED display
AUTONICS-THD-WD-V	—	AUTONICS	Temperature/humidity sensor \| THD Series \| Dual display wall-mount \| -19.9 to 60.0 C / 0-99.9 %RH \| 1-5 VDC \| 24 VDC \| Cable type \| IP65 \| dual 7-segment LED display
AUTONICS-THD-W-T	—	AUTONICS	Temperature/humidity sensor \| THD Series \| Single display wall-mount \| -19.9 to 60.0 C / 0-99.9 %RH \| RS485 \| 24 VDC \| Cable type \| IP65 \| 7-segment LED display
AUTONICS-THD-WD-T	—	AUTONICS	Temperature/humidity sensor \| THD Series \| Dual display wall-mount \| -19.9 to 60.0 C / 0-99.9 %RH \| RS485 \| 24 VDC \| Cable type \| IP65 \| dual 7-segment LED display
