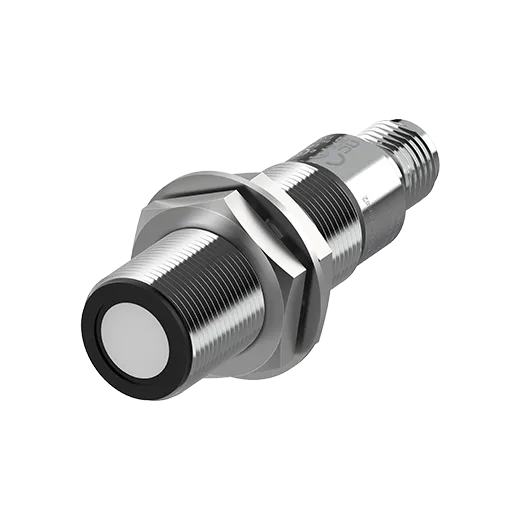

[AUTONICS] UTR Series Cylindrical Ultrasonic Sensors

Family ID: AUTONICS-UTR-SERIES

M30 cylindrical ultrasonic sensors with diffuse sensing type. NPN, PNP, and analog (4-20 mA / 0-10 V) output options. Reliable detection of transparent objects, liquids, and irregular surfaces. Adjustable sensing range via teach button. IP67 rated.

16 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code	Description	Brand	Spec
AUTONICS-UTR-30-N	—	AUTONICS	Ultrasonic sensor \| UTR Series \| Diffuse type \| 30 cm \| NPN open collector \| 12-24 VDC \| M12 connector \| IP67 \| M30 cylindrical
AUTONICS-UTR-30-P	—	AUTONICS	Ultrasonic sensor \| UTR Series \| Diffuse type \| 30 cm \| PNP open collector \| 12-24 VDC \| M12 connector \| IP67 \| M30 cylindrical
AUTONICS-UTR-30-AI	—	AUTONICS	Ultrasonic sensor \| UTR Series \| Diffuse type \| 30 cm \| 4-20 mA analog \| 12-24 VDC \| M12 connector \| IP67 \| analog current output
AUTONICS-UTR-30-AV	—	AUTONICS	Ultrasonic sensor \| UTR Series \| Diffuse type \| 30 cm \| 0-10 V analog \| 12-24 VDC \| M12 connector \| IP67 \| analog voltage output
AUTONICS-UTR-100-N	—	AUTONICS	Ultrasonic sensor \| UTR Series \| Diffuse type \| 100 cm \| NPN open collector \| 12-24 VDC \| M12 connector \| IP67 \| M30 cylindrical
AUTONICS-UTR-100-P	—	AUTONICS	Ultrasonic sensor \| UTR Series \| Diffuse type \| 100 cm \| PNP open collector \| 12-24 VDC \| M12 connector \| IP67 \| M30 cylindrical
AUTONICS-UTR-100-AI	—	AUTONICS	Ultrasonic sensor \| UTR Series \| Diffuse type \| 100 cm \| 4-20 mA analog \| 12-24 VDC \| M12 connector \| IP67 \| analog current output
AUTONICS-UTR-100-AV	—	AUTONICS	Ultrasonic sensor \| UTR Series \| Diffuse type \| 100 cm \| 0-10 V analog \| 12-24 VDC \| M12 connector \| IP67 \| analog voltage output
AUTONICS-UTR-300-N	—	AUTONICS	Ultrasonic sensor \| UTR Series \| Diffuse type \| 300 cm \| NPN open collector \| 12-24 VDC \| M12 connector \| IP67 \| M30 cylindrical
AUTONICS-UTR-300-P	—	AUTONICS	Ultrasonic sensor \| UTR Series \| Diffuse type \| 300 cm \| PNP open collector \| 12-24 VDC \| M12 connector \| IP67 \| M30 cylindrical
AUTONICS-UTR-300-AI	—	AUTONICS	Ultrasonic sensor \| UTR Series \| Diffuse type \| 300 cm \| 4-20 mA analog \| 12-24 VDC \| M12 connector \| IP67 \| analog current output
AUTONICS-UTR-300-AV	—	AUTONICS	Ultrasonic sensor \| UTR Series \| Diffuse type \| 300 cm \| 0-10 V analog \| 12-24 VDC \| M12 connector \| IP67 \| analog voltage output
AUTONICS-UTR-600-N	—	AUTONICS	Ultrasonic sensor \| UTR Series \| Diffuse type \| 600 cm \| NPN open collector \| 12-24 VDC \| M12 connector \| IP67 \| M30 cylindrical
AUTONICS-UTR-600-P	—	AUTONICS	Ultrasonic sensor \| UTR Series \| Diffuse type \| 600 cm \| PNP open collector \| 12-24 VDC \| M12 connector \| IP67 \| M30 cylindrical
AUTONICS-UTR-600-AI	—	AUTONICS	Ultrasonic sensor \| UTR Series \| Diffuse type \| 600 cm \| 4-20 mA analog \| 12-24 VDC \| M12 connector \| IP67 \| analog current output
AUTONICS-UTR-600-AV	—	AUTONICS	Ultrasonic sensor \| UTR Series \| Diffuse type \| 600 cm \| 0-10 V analog \| 12-24 VDC \| M12 connector \| IP67 \| analog voltage output
