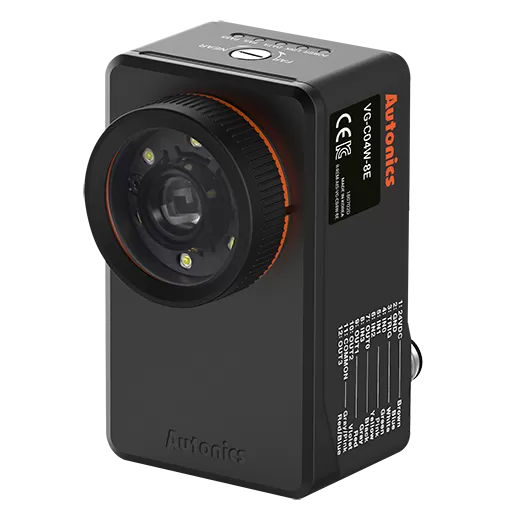

[AUTONICS] VG Series 0.4MP Monochrome / Color Vision Sensors

Family ID: AUTONICS-VG-SERIES

0.4 MP (752 x 480 pixel) vision sensors with integrated LED lighting. Monochrome and color variants. 3 focal length options (8 mm, 16 mm, 25 mm). 1/3 inch CMOS sensor, global shutter for accurate motion capture. Up to 60 fps. White/Red/Green/Blue light modes. 32 work groups, free Vision Master software. Light interference prevention technology. IP67 rated.

6 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code	Description	Brand	Spec
AUTONICS-VG-M040-08E	—	AUTONICS	Vision sensor \| VG Series \| 0.4MP monochrome integrated LED \| 752x480 60fps focal 8 mm min 50 mm \| NPN/PNP open collector software config \| 24 VDC \| M12 12-pin \| IP67 \| global shutter integrated illumination
AUTONICS-VG-M040-16E	—	AUTONICS	Vision sensor \| VG Series \| 0.4MP monochrome integrated LED \| 752x480 60fps focal 16 mm min 100 mm \| NPN/PNP open collector software config \| 24 VDC \| M12 12-pin \| IP67 \| global shutter integrated illumination
AUTONICS-VG-M040-25E	—	AUTONICS	Vision sensor \| VG Series \| 0.4MP monochrome integrated LED \| 752x480 60fps focal 25 mm min 200 mm \| NPN/PNP open collector software config \| 24 VDC \| M12 12-pin \| IP67 \| global shutter integrated illumination
AUTONICS-VG-C040-08E	—	AUTONICS	Vision sensor \| VG Series \| 0.4MP color integrated LED \| 752x480 60fps focal 8 mm min 50 mm \| NPN/PNP open collector software config \| 24 VDC \| M12 12-pin \| IP67 \| global shutter integrated illumination
AUTONICS-VG-C040-16E	—	AUTONICS	Vision sensor \| VG Series \| 0.4MP color integrated LED \| 752x480 60fps focal 16 mm min 100 mm \| NPN/PNP open collector software config \| 24 VDC \| M12 12-pin \| IP67 \| global shutter integrated illumination
AUTONICS-VG-C040-25E	—	AUTONICS	Vision sensor \| VG Series \| 0.4MP color integrated LED \| 752x480 60fps focal 25 mm min 200 mm \| NPN/PNP open collector software config \| 24 VDC \| M12 12-pin \| IP67 \| global shutter integrated illumination
