![[BOSCH AC] — 1609201795 Heat Gun Nozzle](https://img.prosourcemro.com/2026/05/1100988-1.jpg)
General Power Tools
BOSCH AC

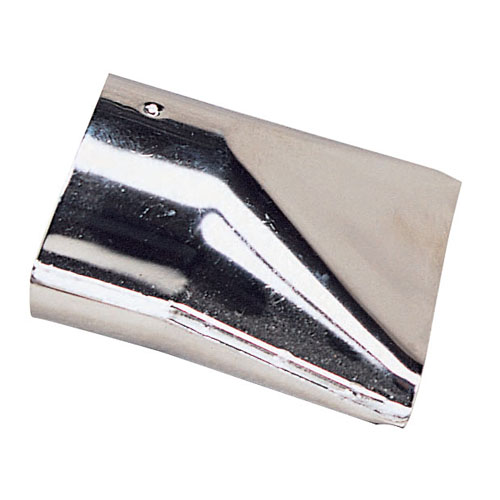

[BOSCH AC] — 1609201795 Heat Gun Nozzle
Family ID: 505-3399
BOSCH AC 1609201795 Heat Gun Nozzle is an accessory attachment designed to direct and concentrate airflow from a compatible heat gun, sourced direct from Korea. Heat gun nozzles are commonly used in tasks such as paint stripping, shrink wrapping, pipe bending, and soldering preparation, allowing tradespeople and technicians to control heat application with greater precision. Request a quote today for export-ready supply at competitive pricing through a KITA-registered Korean exporter.
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 505-3399 | 1609201795 | BOSCH AC | Surface Nozzle 50mm (795) | Width: 50 | Name: Surface Nozzle | Feature: Wide heat distribution to surface | Compatible Model: GHG500-2/ GHG630DCE/ GHG16-50/ GHG20-63/ GHG20-60 | Diameter: 33.5 | ||
| 505-3405 | 1609201797 | BOSCH AC | Narrow Nozzle 9mm (797) | Width: - | Name: Narrow Nozzle | Feature: Special Nozzle Adapter | Compatible Model: GHG630DCE/ GHG20-63/ GHG20-60 | Diameter: 9 | ||
| 505-3414 | 1609390452 | BOSCH AC | Glass Protection Nozzle 75mm (452) | Width: 75 | Name: Glass Protection Nozzle | Feature: Protection from heat-sensitive materials | Compatible Model: GHG500-2/GHG630DCE/ GHG16-50/ GHG20-63/ GHG20-60 | Diameter: 33.5 | ||
| 505-3423 | 1609201751 | BOSCH AC | Angle Nozzle (751) | Width: 80 | Name: Angle Nozzle | Feature: Heat-Sensitive Material Removal | Compatible Model: GHG500-2/GHG630DCE/ GHG16-50/ GHG20-63 | Diameter: 33.5 | ||
| 505-3432 | 1609201798 | BOSCH AC | Welding Nozzle 5mm (798) | Width: - | Name: Welding Nozzle (5mm) | Feature: Plastic Welding - Use with 9mm Narrow Nozzle | Compatible Model: GHG630DCE/ GHG20-63/ GHG20-60 | Diameter: 10 | ||
| 506-3299 | 1609201648 | BOSCH AC | Narrow Nozzle 20mm (648) | Width: - | Name: Narrow Nozzle | Feature: Concentrated Heat Spray | Compatible Model: GHG500-2/GHG630DCE/ GHG16-50/ GHG20-63/ GHG20-60 | Diameter: 20 | ||
| 506-7356 | 1609201647 | BOSCH AC | Narrow Nozzle 14mm (647) | Width: - | Name: Narrow Nozzle | Feature: Concentrated Heat Spray | Compatible Model: GHG630DCE/ GHG20-63/ GHG20-60 | Diameter: 14 | ||
| 524-6430 | 1609390451 | BOSCH AC | Surface Nozzle 75mm (451) | Width: 75 | Name: Surface Nozzle | Feature: Distributes heat broadly to surface | Compatible Model: GHG500-2/ GHG630DCE/ GHG16-50/ GHG20-63/ GHG20-60 | Diameter: 33.5 |
