Cable Carriers
CP SYSTEM

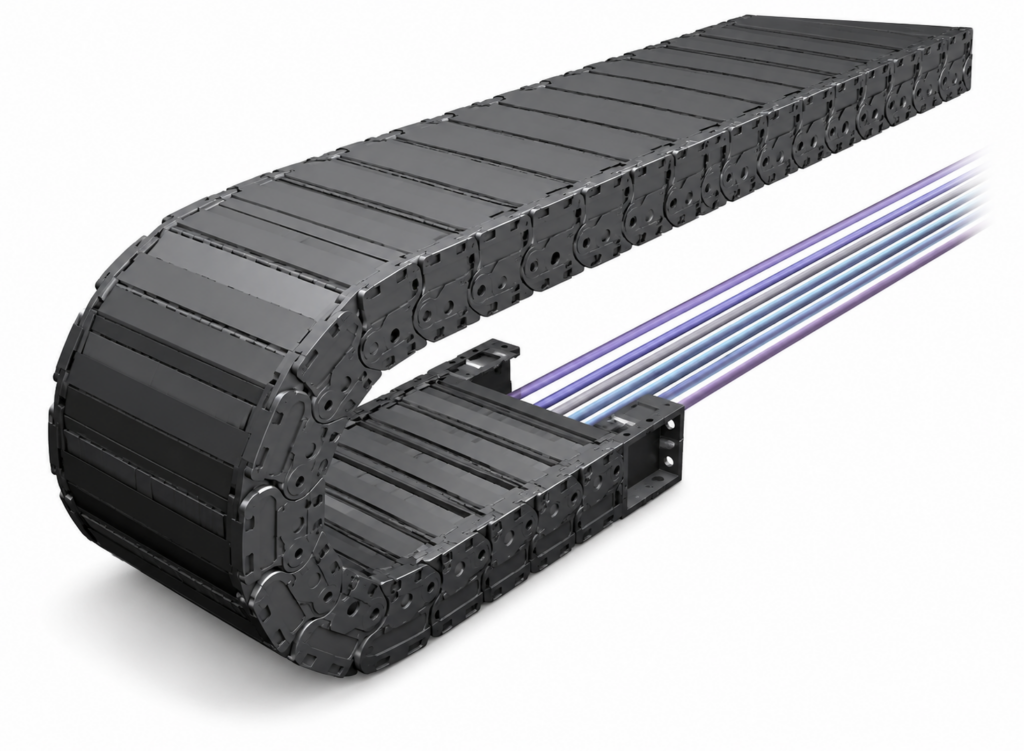

[CP SYSTEM] — nsb028E Sabin Chain Enclosed Cable Carrier (Inside Width 35-100mm, R66-R146)
Family ID: CPS-NSB-028E
Sabin Chain nsb-E Enclosed Type cable carrier. Fully enclosed cable & hose carrier; FEB can be fully enclosed by inserting a steel plate (ordered separately) to protect cables from external particles. Hinge-type frame for easy assembly and maintenance. Material CPS-Amide (PA6+G.F). Speed 10 m/s, operating temperature -30 ~ +130°C. Can be produced as ESD type; ESD / UV / customized color options available. Model nsb028E: inside width 35-100mm, bending radius R66-R146. Brackets, dividers, separators, length and steel plate are made-to-order.
16 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| nsb028E.35.R66 | Sabin nsb028E Enclosed cable chain, inside width 35mm, R66 | CP SYSTEM | Type: Enclosed (E) | Model: nsb028E | Inside Width (C): 35mm | Bending Radius (R): 66mm | Inside Height (D): 26mm | Outer Width (A): 55mm | Outer Height (B): 38mm | Weight: 1.0 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Temperature: -30 ~ +130°C | Steel Plate: fully enclosable (ordered separately) | Brackets/Dividers/Separators/Length: made-to-order | ||
| nsb028E.35.R86 | Sabin nsb028E Enclosed cable chain, inside width 35mm, R86 | CP SYSTEM | Type: Enclosed (E) | Model: nsb028E | Inside Width (C): 35mm | Bending Radius (R): 86mm | Inside Height (D): 26mm | Outer Width (A): 55mm | Outer Height (B): 38mm | Weight: 1.0 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Temperature: -30 ~ +130°C | Steel Plate: fully enclosable (ordered separately) | Brackets/Dividers/Separators/Length: made-to-order | ||
| nsb028E.35.R116 | Sabin nsb028E Enclosed cable chain, inside width 35mm, R116 | CP SYSTEM | Type: Enclosed (E) | Model: nsb028E | Inside Width (C): 35mm | Bending Radius (R): 116mm | Inside Height (D): 26mm | Outer Width (A): 55mm | Outer Height (B): 38mm | Weight: 1.0 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Temperature: -30 ~ +130°C | Steel Plate: fully enclosable (ordered separately) | Brackets/Dividers/Separators/Length: made-to-order | ||
| nsb028E.35.R146 | Sabin nsb028E Enclosed cable chain, inside width 35mm, R146 | CP SYSTEM | Type: Enclosed (E) | Model: nsb028E | Inside Width (C): 35mm | Bending Radius (R): 146mm | Inside Height (D): 26mm | Outer Width (A): 55mm | Outer Height (B): 38mm | Weight: 1.0 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Temperature: -30 ~ +130°C | Steel Plate: fully enclosable (ordered separately) | Brackets/Dividers/Separators/Length: made-to-order | ||
| nsb028E.55.R66 | Sabin nsb028E Enclosed cable chain, inside width 55mm, R66 | CP SYSTEM | Type: Enclosed (E) | Model: nsb028E | Inside Width (C): 55mm | Bending Radius (R): 66mm | Inside Height (D): 26mm | Outer Width (A): 75mm | Outer Height (B): 38mm | Weight: 1.13 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Temperature: -30 ~ +130°C | Steel Plate: fully enclosable (ordered separately) | Brackets/Dividers/Separators/Length: made-to-order | ||
| nsb028E.55.R86 | Sabin nsb028E Enclosed cable chain, inside width 55mm, R86 | CP SYSTEM | Type: Enclosed (E) | Model: nsb028E | Inside Width (C): 55mm | Bending Radius (R): 86mm | Inside Height (D): 26mm | Outer Width (A): 75mm | Outer Height (B): 38mm | Weight: 1.13 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Temperature: -30 ~ +130°C | Steel Plate: fully enclosable (ordered separately) | Brackets/Dividers/Separators/Length: made-to-order | ||
| nsb028E.55.R116 | Sabin nsb028E Enclosed cable chain, inside width 55mm, R116 | CP SYSTEM | Type: Enclosed (E) | Model: nsb028E | Inside Width (C): 55mm | Bending Radius (R): 116mm | Inside Height (D): 26mm | Outer Width (A): 75mm | Outer Height (B): 38mm | Weight: 1.13 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Temperature: -30 ~ +130°C | Steel Plate: fully enclosable (ordered separately) | Brackets/Dividers/Separators/Length: made-to-order | ||
| nsb028E.55.R146 | Sabin nsb028E Enclosed cable chain, inside width 55mm, R146 | CP SYSTEM | Type: Enclosed (E) | Model: nsb028E | Inside Width (C): 55mm | Bending Radius (R): 146mm | Inside Height (D): 26mm | Outer Width (A): 75mm | Outer Height (B): 38mm | Weight: 1.13 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Temperature: -30 ~ +130°C | Steel Plate: fully enclosable (ordered separately) | Brackets/Dividers/Separators/Length: made-to-order | ||
| nsb028E.75.R66 | Sabin nsb028E Enclosed cable chain, inside width 75mm, R66 | CP SYSTEM | Type: Enclosed (E) | Model: nsb028E | Inside Width (C): 75mm | Bending Radius (R): 66mm | Inside Height (D): 26mm | Outer Width (A): 95mm | Outer Height (B): 38mm | Weight: 1.3 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Temperature: -30 ~ +130°C | Steel Plate: fully enclosable (ordered separately) | Brackets/Dividers/Separators/Length: made-to-order | ||
| nsb028E.75.R86 | Sabin nsb028E Enclosed cable chain, inside width 75mm, R86 | CP SYSTEM | Type: Enclosed (E) | Model: nsb028E | Inside Width (C): 75mm | Bending Radius (R): 86mm | Inside Height (D): 26mm | Outer Width (A): 95mm | Outer Height (B): 38mm | Weight: 1.3 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Temperature: -30 ~ +130°C | Steel Plate: fully enclosable (ordered separately) | Brackets/Dividers/Separators/Length: made-to-order | ||
| nsb028E.75.R116 | Sabin nsb028E Enclosed cable chain, inside width 75mm, R116 | CP SYSTEM | Type: Enclosed (E) | Model: nsb028E | Inside Width (C): 75mm | Bending Radius (R): 116mm | Inside Height (D): 26mm | Outer Width (A): 95mm | Outer Height (B): 38mm | Weight: 1.3 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Temperature: -30 ~ +130°C | Steel Plate: fully enclosable (ordered separately) | Brackets/Dividers/Separators/Length: made-to-order | ||
| nsb028E.75.R146 | Sabin nsb028E Enclosed cable chain, inside width 75mm, R146 | CP SYSTEM | Type: Enclosed (E) | Model: nsb028E | Inside Width (C): 75mm | Bending Radius (R): 146mm | Inside Height (D): 26mm | Outer Width (A): 95mm | Outer Height (B): 38mm | Weight: 1.3 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Temperature: -30 ~ +130°C | Steel Plate: fully enclosable (ordered separately) | Brackets/Dividers/Separators/Length: made-to-order | ||
| nsb028E.100.R66 | Sabin nsb028E Enclosed cable chain, inside width 100mm, R66 | CP SYSTEM | Type: Enclosed (E) | Model: nsb028E | Inside Width (C): 100mm | Bending Radius (R): 66mm | Inside Height (D): 26mm | Outer Width (A): 120mm | Outer Height (B): 38mm | Weight: 1.5 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Temperature: -30 ~ +130°C | Steel Plate: fully enclosable (ordered separately) | Brackets/Dividers/Separators/Length: made-to-order | ||
| nsb028E.100.R86 | Sabin nsb028E Enclosed cable chain, inside width 100mm, R86 | CP SYSTEM | Type: Enclosed (E) | Model: nsb028E | Inside Width (C): 100mm | Bending Radius (R): 86mm | Inside Height (D): 26mm | Outer Width (A): 120mm | Outer Height (B): 38mm | Weight: 1.5 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Temperature: -30 ~ +130°C | Steel Plate: fully enclosable (ordered separately) | Brackets/Dividers/Separators/Length: made-to-order | ||
| nsb028E.100.R116 | Sabin nsb028E Enclosed cable chain, inside width 100mm, R116 | CP SYSTEM | Type: Enclosed (E) | Model: nsb028E | Inside Width (C): 100mm | Bending Radius (R): 116mm | Inside Height (D): 26mm | Outer Width (A): 120mm | Outer Height (B): 38mm | Weight: 1.5 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Temperature: -30 ~ +130°C | Steel Plate: fully enclosable (ordered separately) | Brackets/Dividers/Separators/Length: made-to-order | ||
| nsb028E.100.R146 | Sabin nsb028E Enclosed cable chain, inside width 100mm, R146 | CP SYSTEM | Type: Enclosed (E) | Model: nsb028E | Inside Width (C): 100mm | Bending Radius (R): 146mm | Inside Height (D): 26mm | Outer Width (A): 120mm | Outer Height (B): 38mm | Weight: 1.5 kg/m | Material: CPS-Amide (PA6+G.F) | Speed: 10 m/s | Temperature: -30 ~ +130°C | Steel Plate: fully enclosable (ordered separately) | Brackets/Dividers/Separators/Length: made-to-order |
