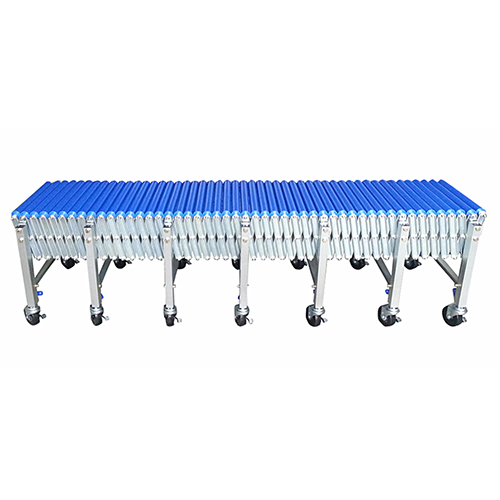

[Daehwa Conveyor] — DFC-4035 Bellows Conveyor
Family ID: 567-0150
The Daehwa Conveyor DFC-4035 Bellows Conveyor is a flexible conveying unit designed to transport materials through elevation changes or irregular paths, sourced direct from Korea. Bellows conveyors are commonly used in manufacturing and assembly lines where goods must move between different levels or around obstructions without manual handling. Request a quote today for export-ready supply, competitive pricing, and reliable fulfillment through a KITA-registered Korean exporter.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 567-0150 | DFC-4035 | Daehwa Conveyor | DFC-4035 (Standard Type) | Weight: 41.0 | Note: ABS Roller / Low & High Profile Available | Number of Rollers: 23 | Number of Legs: 3 | Length L: Min 900 / Max 3440mm | Roller Frame: Inner W400 / Outer W570mm | Height (H): Std(S):600~900 Low(L):450~600 High(H):900~1500mm | ||
| 567-0169 | DFC-4050 | Daehwa Conveyor | DFC-4050 (Standard Type) | Weight: 60.0 | Note: ABS Roller / Low & High Profile Available | Number of Rollers: 33 | Number of Legs: 5 | Length L: Min 1430 / Max 4980mm | Roller Frame: Inner W400 / Outer W570mm | Height (H): Std(S):600~900 Low(L):450~600 High(H):900~1500mm | ||
| 567-0178 | DFC-4075 | Daehwa Conveyor | DFC-4075 (Standard Type) | Weight: 71.0 | Note: ABS Roller / Low & High Profile Available | Number of Rollers: 49 | Number of Legs: 7 | Length L: Min 2140 / Max 7440mm | Roller Frame: Inner W400 / Outer W570mm | Height (H): Std(S):600~900 Low(L):450~600 High(H):900~1500mm | ||
| 567-0187 | DFC-4535 | Daehwa Conveyor | DFC-4535 (Standard Type) | Weight: 44.0 | Note: ABS Roller / Low & High Profile Available | Number of Rollers: 23 | Number of Legs: 3 | Length L: Min 900 / Max 3440mm | Roller Frame: Inner W450 / Outer W620mm | Height (H): Std(S):600~900 Low(L):450~600 High(H):900~1500mm | ||
| 567-0196 | DFC-4550 | Daehwa Conveyor | DFC-4550 (Standard Type) | Weight: 64.0 | Note: ABS Roller / Low & High Profile Available | Number of Rollers: 33 | Number of Legs: 5 | Length L: Min 1430 / Max 4980mm | Roller Frame: Inner W450 / Outer W620mm | Height (H): Std(S):600~900 Low(L):450~600 High(H):900~1500mm | ||
| 567-0202 | DFC-4575 | Daehwa Conveyor | DFC-4575 (Standard Type) ★Individual Transport Item | Weight: 81.0 | Note: ABS Roller / Low & High Profile Available | Number of Rollers: 49 | Number of Legs: 7 | Length L: Min 2140 / Max 7440mm | Roller Frame: Inner W450 / Outer W620mm | Height (H): Std(S):600~900 Low(L):450~600 High(H):900~1500mm |
