![[Daejin] — TPUN2410 Hydraulic Punching Machine](https://img.prosourcemro.com/2026/05/1123627-1-2.jpg)
Hydraulic Construction Tools
Daejin

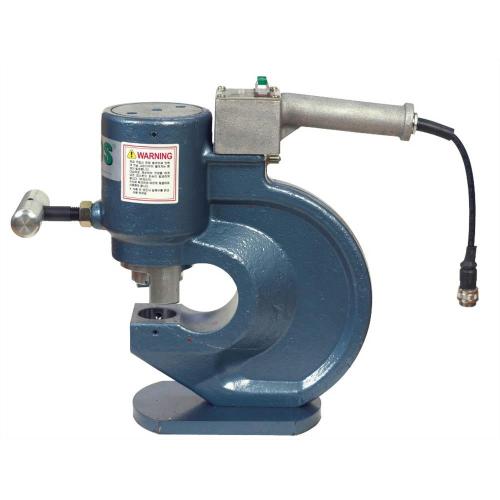

[Daejin] — TPUN2410 Hydraulic Punching Machine
Family ID: 662-0514
Daejin TPUN2410 Hydraulic Punching Machine is a hydraulically driven hole-punching tool for structural metalwork, sourced direct from Korea. Fabricators and steel construction crews rely on hydraulic punching machines to cleanly punch precise holes through steel plates, angle iron, and channel sections without the distortion associated with drilling. Request a quote today for export-ready supply, competitive pricing, and reliable fulfillment through a KITA-registered Korean exporter.
7 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 662-0514 | TPUN2410 | Daejin | TPUN-2410=2012 (Double Acting) | Height: 356 | Weight: 13 | Components: Punch Blade 10/12/14/16mm | Port Size: 20.5 | Shape: Double-Acting | Output: 32 | Compatible Pump: TMP-1/2A (Double-Acting) | Center Depth: 70 | ||
| 662-0523 | TPUN2416 | Daejin | TPUN-2416-07 (Double Acting) | Height: 344 | Weight: 21 | Components: Punch Blade 18/20/22/24mm | Port Size: 24 | Shape: Double-Acting | Output: 47 | Compatible Pump: TMP-2A/ 3A | Center Depth: 70 | ||
| 662-0532 | TPUN2416 | Daejin | TPUN-2416-11 (Double Acting) | Height: 379 | Weight: 28 | Components: Punch Blade 18/20/22/24mm | Port Size: 24 | Shape: Double-Acting | Output: 47 | Compatible Pump: TMP-2A/ 3A | Center Depth: 110 | ||
| 662-0541 | TPUN2420 | Daejin | TPUN-2420 (Double Acting) | Height: 387 | Weight: 34 | Components: Punch Blade 18/20/22/24mm | Port Size: 24 | Shape: Double-Acting | Output: 60 | Compatible Pump: TMP-2A/ 3A | Center Depth: 110 | ||
| 662-2099 | TPUN2410 | Daejin | TPUN-2410=2012 (Single Acting) | Height: 356 | Weight: 13 | Components: Punch Blade 10/12/14/16mm | Port Size: 20.5 | Shape: Single-Acting | Output: 32 | Compatible Pump: TMP-1/2A (Single-Acting) | Center Depth: 70 | ||
| 666-0761 | TPUN2010 | Daejin | TPUN-2010 (Single Acting) | Height: 312 | Weight: 8.5 | Components: Punch Blade 10.5/13.5/17.5/20.5mm | Port Size: 20.5 | Shape: Single-Acting | Output: 24 | Compatible Pump: TMPM-1/2A (Single-Acting) | Center Depth: 50 | ||
| 666-0770 | TPUN1710C | Daejin | TPUN-1710C (Single Acting) | Height: 312 | Weight: 8.5 | Components: Punch Blade 10.5/13.5/17.5mm | Port Size: 17.5 | Shape: Single-Acting | Output: 24 | Compatible Pump: TMPM-1/2A (Single-Acting) | Center Depth: 50 |
