Hoists & Winches
Daesan

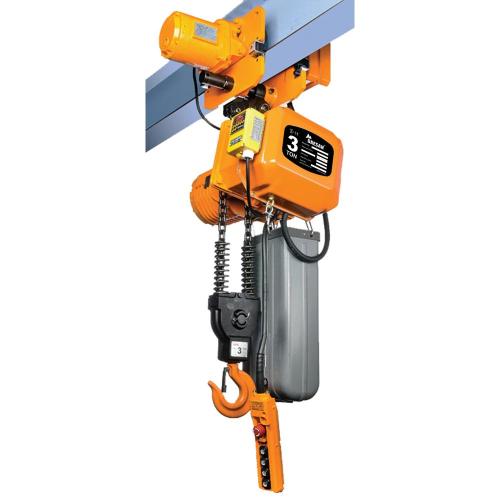

[Daesan] — DSM-1S Hoist Chain Hoist (4-Point)
Family ID: 555-1226
The Daesan DSM-1S is a 4-point hoist chain hoist designed for controlled vertical lifting in demanding industrial environments, sourced direct from Korea. Four-point suspension models are commonly used in heavy fabrication, shipbuilding, and construction applications where balanced load distribution is critical to safe operation. Request a quote today for export-ready supply, competitive pricing, and reliable fulfillment through a KITA-registered Korean exporter.
7 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 555-1226 | DSM-1S | Daesan | DSM-1S (1.0T) Three Phase 380V | Spec: 1.0 | Weight: 106.0 | Motor: 1.8 | Power Source: 3-Phase 380V | Trolley: 0.4 | Number of Strings: 1 | Hoisting Speed: 8.2 | Traversing Speed: 15 | Chain Thickness: 7.1 | Lift Height: 4 | Min Beam Spec: 75 | Max Beam Spec: 125 | ||
| 555-1378 | DSM-1.5S | Daesan | [Order] DSM-1.5S (1.5T) Three-phase 380V | Spec: 1.5 | Weight: 162.0 | Motor: 3.5 | Power Source: 3-Phase 380V | Trolley: 0.4 | Number of Strings: 1 | Hoisting Speed: 10.3 | Traversing Speed: 15 | Chain Thickness: 9.5 | Lift Height: 4 | Min Beam Spec: 100 | Max Beam Spec: 150 | ||
| 555-1387 | DSM-2S | Daesan | [Order] DSM-2S (2.0T) Three-phase 380V | Spec: 2.0 | Weight: 170.0 | Motor: 3.5 | Power Source: 3-Phase 380V | Trolley: 0.4 | Number of Strings: 1 | Hoisting Speed: 8.1 | Traversing Speed: 15 | Chain Thickness: 11.2 | Lift Height: 4 | Min Beam Spec: 100 | Max Beam Spec: 150 | ||
| 555-1396 | DSM-2W | Daesan | [Order] DSM-2W (2.0T) Three-phase 380V | Spec: 2.0 | Weight: 129.0 | Motor: 1.8 | Power Source: 3-Phase 380V | Trolley: 0.4 | Number of Strings: 2 | Hoisting Speed: 4.1 | Traversing Speed: 15 | Chain Thickness: 7.1 | Lift Height: 4 | Min Beam Spec: 100 | Max Beam Spec: 150 | ||
| 555-1402 | DSM-3W | Daesan | [Order] DSM-3W (3.0T) Three Phase 380V | Spec: 3.0 | Weight: 222.0 | Motor: 3.5 | Power Source: 3-Phase 380V | Trolley: 0.75 | Number of Strings: 2 | Hoisting Speed: 5.15 | Traversing Speed: 14 | Chain Thickness: 9.5 | Lift Height: 5 | Min Beam Spec: 100 | Max Beam Spec: 150 | ||
| 555-1411 | DSM-5W | Daesan | [Order] DSM-5W (5.0T) Three-phase 380V | Spec: 5.0 | Weight: 256.0 | Motor: 3.5 | Power Source: 3-Phase 380V | Trolley: 0.75 | Number of Strings: 2 | Hoisting Speed: 3.25 | Traversing Speed: 14 | Chain Thickness: 11.2 | Lift Height: 5 | Min Beam Spec: 125 | Max Beam Spec: 175 | ||
| 555-1448 | DSM-2.5S | Daesan | [Order] DSM-2.5S (2.5T) Three Phase 380V | Spec: 2.5 | Weight: 200.0 | Motor: 3.5 | Power Source: 3-Phase 380V | Trolley: 0.75 | Number of Strings: 1 | Hoisting Speed: 6.5 | Traversing Speed: 14 | Chain Thickness: 11.2 | Lift Height: 5 | Min Beam Spec: 100 | Max Beam Spec: 150 |
