![[Daesan] — EDL-125-1 Hoist Chain Hoist (2-Point)](https://img.prosourcemro.com/2026/05/3355583-1-2.jpg)
Hoists & Winches
Daesan

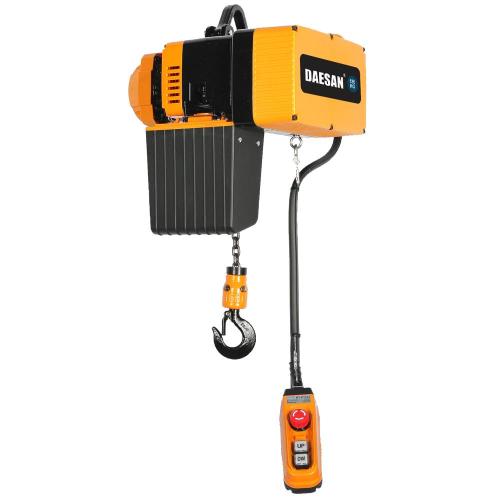

[Daesan] — EDL-125-1 Hoist Chain Hoist (2-Point)
Family ID: 555-8618
The Daesan EDL-125-1 is a 2-point hoist chain hoist designed for reliable vertical lifting and load handling in demanding industrial environments, sourced direct from Korea. Chain hoists of this type are commonly used by construction crews, manufacturing facilities, and warehousing operations that require controlled, overhead lifting of heavy materials or equipment. Request a quote today to access export-ready supply, competitive pricing, and the assurance of working with a KITA-registered Korean exporter.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 555-8618 | EDL-125-1 | Daesan | EDL-125-1 (125KG) ★Single-Phase 220V | Spec: 125 | Weight: 27.0 | Motor: 0.75 | Power Source: Single-Phase 220V | Number of Strings: 1 | Hoisting Speed: 2.8~17 | Chain Thickness: 5.0 | Lift Height: 4 | ||
| 555-8627 | EDL-250-1 | Daesan | EDL-250-1 (250KG) ★Single-Phase 220V | Spec: 250 | Weight: 27.0 | Motor: 0.75 | Power Source: Single-Phase 220V | Number of Strings: 1 | Hoisting Speed: 1.7~10 | Chain Thickness: 5.0 | Lift Height: 4 | ||
| 555-8636 | EDL-500-1 | Daesan | EDL-500-1 (490KG) Single Phase 220V | Spec: 490 | Weight: 28.0 | Motor: 0.75 | Power Source: Single-Phase 220V | Number of Strings: 1 | Hoisting Speed: 1.1~6.4 | Chain Thickness: 5.0 | Lift Height: 4 | ||
| 555-8645 | EDL-125-3 | Daesan | EDL-125-3 (125KG) Three-Phase 380V | Spec: 125 | Weight: 27.0 | Motor: 0.75 | Power Source: 3-Phase 380V | Number of Strings: 1 | Hoisting Speed: 2.8~17 | Chain Thickness: 5.0 | Lift Height: 4 | ||
| 555-8654 | EDL-250-3 | Daesan | EDL-250-3 (250KG) Three-phase 380V | Spec: 250 | Weight: 27.0 | Motor: 0.75 | Power Source: 3-Phase 380V | Number of Strings: 1 | Hoisting Speed: 1.7~10 | Chain Thickness: 5.0 | Lift Height: 4 | ||
| 555-8663 | EDL-500-3 | Daesan | EDL-500-3 (490KG) Three-Phase 380V | Spec: 490 | Weight: 28.0 | Motor: 0.75 | Power Source: 3-Phase 380V | Number of Strings: 1 | Hoisting Speed: 1.1~6.4 | Chain Thickness: 5.0 | Lift Height: 4 |
