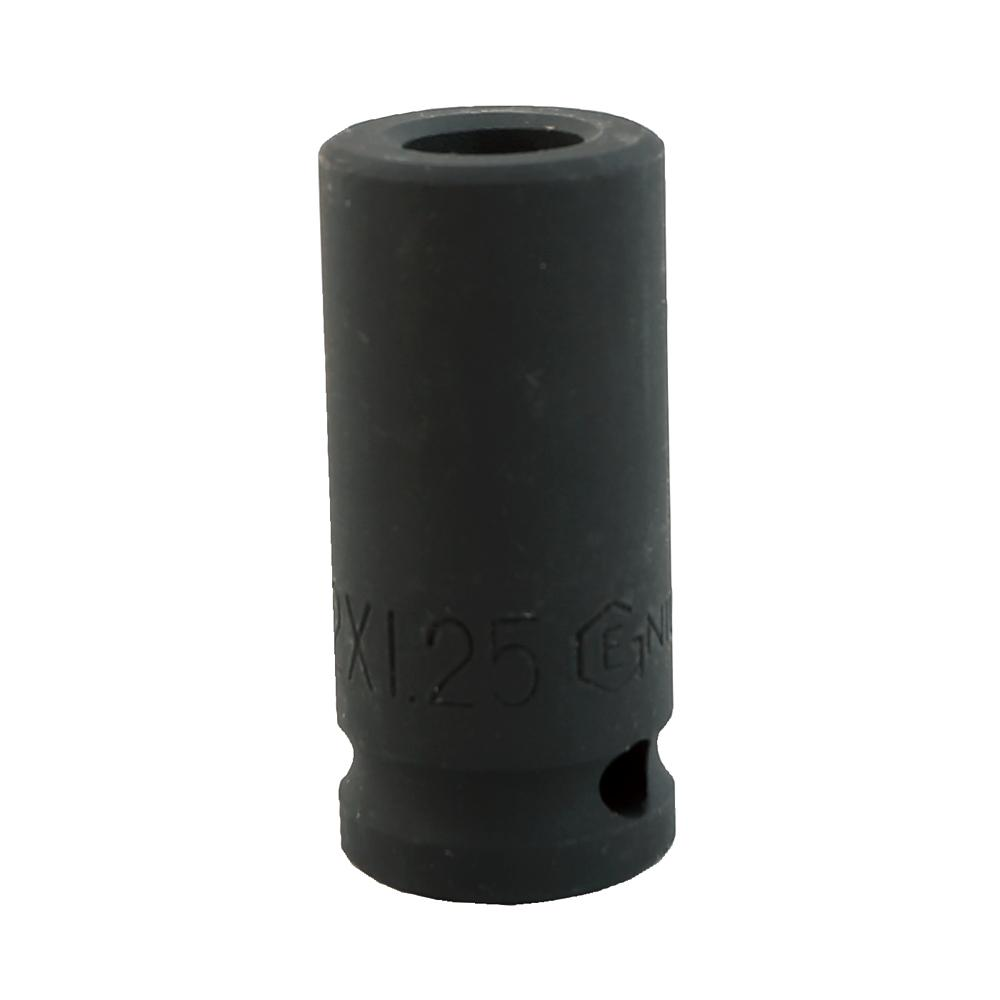

Genius — Stud Bolt Socket 3/8" Drive (M6–M10x1.5)
Family ID: 200-4107
Genius 3/8 in (9.5mm) drive stud bolt socket. Available: M6x1.0 / M8x1.25 / M10x1.25 / M10x1.5. D1: 12–17mm / D2: 20mm / A: 6.4–10.4mm / B: 5.2–8.9mm / L: 40–46mm. Origin: Taiwan.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 200-4107 | 3/8 in drive stud bolt socket. | Genius | Drive: 3/8 in | Thread: M6x1.0 | D1: 12mm | D2: 20mm | A: 6.4mm | B: 5.2mm | L: 40mm | ||
| 200-4116 | 3/8 in drive stud bolt socket. | Genius | Drive: 3/8 in | Thread: M8x1.25 | D1: 14.5mm | D2: 20mm | A: 8.4mm | B: 6.9mm | L: 40mm | ||
| 200-4125 | 3/8 in drive stud bolt socket. | Genius | Drive: 3/8 in | Thread: M10x1.25 | D1: 17mm | D2: 20mm | A: 10.4mm | B: 8.9mm | L: 40mm | ||
| 200-4134 | 3/8 in drive stud bolt socket. | Genius | Drive: 3/8 in | Thread: M10x1.5 | D1: 17mm | D2: 20mm | A: 10.4mm | B: 8.9mm | L: 46mm |
