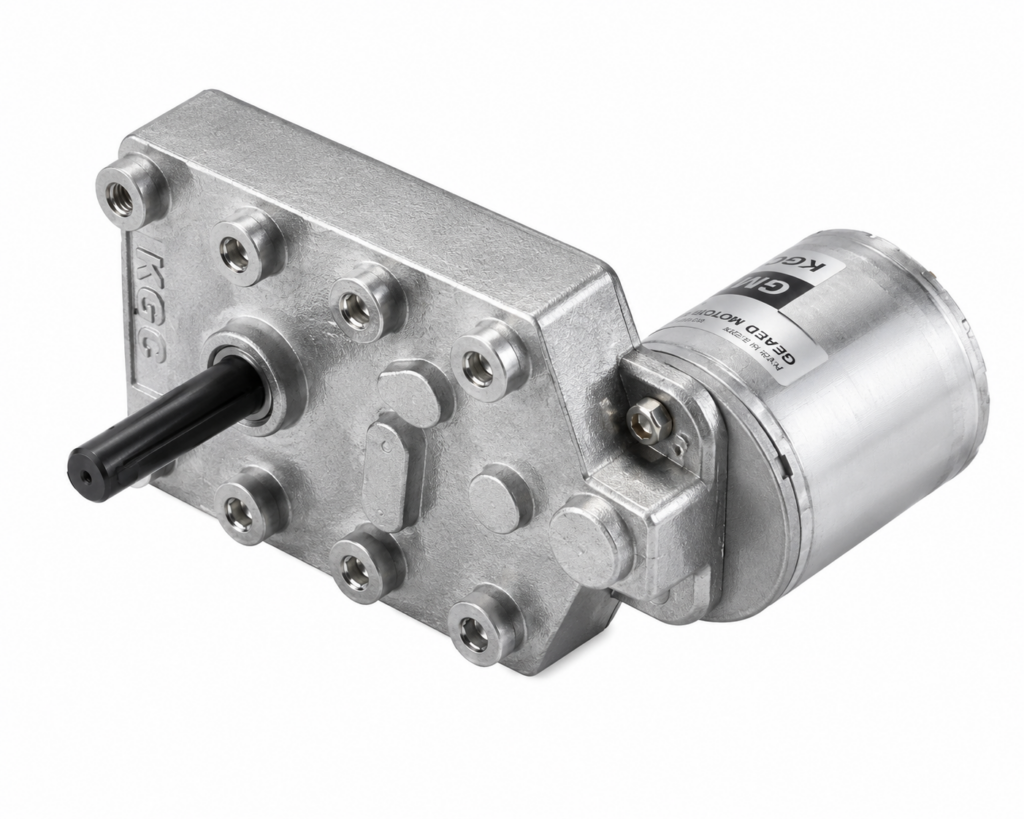

[GGM] — KGE-3640-S2 R-Type BLDC Offset Geared Motor (DC 24V, 5000rpm base, 18 ratios 1/22-1/687)
Family ID: GGM-KGE3640-S2-R
GGM KGE-3640-S2 r-type BLDC offset parallel-shaft geared motor, DC 24V (5000 rpm base motor). 18 gear ratios 1/22-1/687, output torque up to 20 kgf·cm, ø8 output shaft, 8-M4 mounting on 56x100.5 housing. R-Type shaft orientation (F-Type is standard). Built-in brake and 1FG (6P/R) feedback, 6-lead wire (195mm), CW/CCW reversible, GUN-type PWM speed controller.
18 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| KGE-0022-KB3640S2-R | KGE-3640-S2 R-Type BLDC offset geared, 1/22, 177rpm, 4kgf·cm | GGM | Gear Ratio: 1/22 | Output Speed: 177 rpm | Output Torque: 4 kgf·cm | Shaft Type: R-Type | ||
| KGE-0034-KB3640S2-R | KGE-3640-S2 R-Type BLDC offset geared, 1/34, 114.7rpm, 6.2kgf·cm | GGM | Gear Ratio: 1/34 | Output Speed: 114.7 rpm | Output Torque: 6.2 kgf·cm | Shaft Type: R-Type | ||
| KGE-0043-KB3640S2-R | KGE-3640-S2 R-Type BLDC offset geared, 1/43, 90.6rpm, 7.8kgf·cm | GGM | Gear Ratio: 1/43 | Output Speed: 90.6 rpm | Output Torque: 7.8 kgf·cm | Shaft Type: R-Type | ||
| KGE-0050-KB3640S2-R | KGE-3640-S2 R-Type BLDC offset geared, 1/50, 78rpm, 9.1kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 78 rpm | Output Torque: 9.1 kgf·cm | Shaft Type: R-Type | ||
| KGE-0062-KB3640S2-R | KGE-3640-S2 R-Type BLDC offset geared, 1/62, 62.9rpm, 11.3kgf·cm | GGM | Gear Ratio: 1/62 | Output Speed: 62.9 rpm | Output Torque: 11.3 kgf·cm | Shaft Type: R-Type | ||
| KGE-0068-KB3640S2-R | KGE-3640-S2 R-Type BLDC offset geared, 1/68, 57.3rpm, 12.4kgf·cm | GGM | Gear Ratio: 1/68 | Output Speed: 57.3 rpm | Output Torque: 12.4 kgf·cm | Shaft Type: R-Type | ||
| KGE-0083-KB3640S2-R | KGE-3640-S2 R-Type BLDC offset geared, 1/83, 46.9rpm, 15.1kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 46.9 rpm | Output Torque: 15.1 kgf·cm | Shaft Type: R-Type | ||
| KGE-0105-KB3640S2-R | KGE-3640-S2 R-Type BLDC offset geared, 1/105, 37.1rpm, 19.1kgf·cm | GGM | Gear Ratio: 1/105 | Output Speed: 37.1 rpm | Output Torque: 19.1 kgf·cm | Shaft Type: R-Type | ||
| KGE-0116-KB3640S2-R | KGE-3640-S2 R-Type BLDC offset geared, 1/116, 33.6rpm, 20kgf·cm | GGM | Gear Ratio: 1/116 | Output Speed: 33.6 rpm | Output Torque: 20 kgf·cm | Shaft Type: R-Type | ||
| KGE-0162-KB3640S2-R | KGE-3640-S2 R-Type BLDC offset geared, 1/162, 24rpm, 20kgf·cm | GGM | Gear Ratio: 1/162 | Output Speed: 24 rpm | Output Torque: 20 kgf·cm | Shaft Type: R-Type | ||
| KGE-0182-KB3640S2-R | KGE-3640-S2 R-Type BLDC offset geared, 1/182, 21.4rpm, 20kgf·cm | GGM | Gear Ratio: 1/182 | Output Speed: 21.4 rpm | Output Torque: 20 kgf·cm | Shaft Type: R-Type | ||
| KGE-0204-KB3640S2-R | KGE-3640-S2 R-Type BLDC offset geared, 1/204, 19.1rpm, 20kgf·cm | GGM | Gear Ratio: 1/204 | Output Speed: 19.1 rpm | Output Torque: 20 kgf·cm | Shaft Type: R-Type | ||
| KGE-0240-KB3640S2-R | KGE-3640-S2 R-Type BLDC offset geared, 1/240, 16.2rpm, 20kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 16.2 rpm | Output Torque: 20 kgf·cm | Shaft Type: R-Type | ||
| KGE-0308-KB3640S2-R | KGE-3640-S2 R-Type BLDC offset geared, 1/308, 12.6rpm, 20kgf·cm | GGM | Gear Ratio: 1/308 | Output Speed: 12.6 rpm | Output Torque: 20 kgf·cm | Shaft Type: R-Type | ||
| KGE-0350-KB3640S2-R | KGE-3640-S2 R-Type BLDC offset geared, 1/350, 11.1rpm, 20kgf·cm | GGM | Gear Ratio: 1/350 | Output Speed: 11.1 rpm | Output Torque: 20 kgf·cm | Shaft Type: R-Type | ||
| KGE-0452-KB3640S2-R | KGE-3640-S2 R-Type BLDC offset geared, 1/452, 8.6rpm, 20kgf·cm | GGM | Gear Ratio: 1/452 | Output Speed: 8.6 rpm | Output Torque: 20 kgf·cm | Shaft Type: R-Type | ||
| KGE-0615-KB3640S2-R | KGE-3640-S2 R-Type BLDC offset geared, 1/615, 6.3rpm, 20kgf·cm | GGM | Gear Ratio: 1/615 | Output Speed: 6.3 rpm | Output Torque: 20 kgf·cm | Shaft Type: R-Type | ||
| KGE-0687-KB3640S2-R | KGE-3640-S2 R-Type BLDC offset geared, 1/687, 5.6rpm, 20kgf·cm | GGM | Gear Ratio: 1/687 | Output Speed: 5.6 rpm | Output Torque: 20 kgf·cm | Shaft Type: R-Type |
