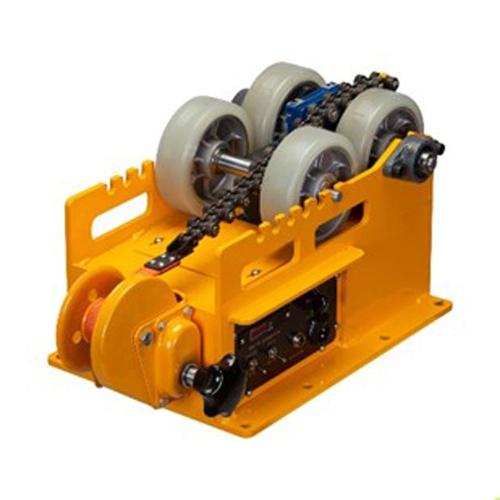

[GM] — TR Welding Turning Roll
Family ID: 741-1162
The GM TR Welding Turning Roll is a rotary positioning device designed to support and rotate cylindrical workpieces during welding, sourced direct from Korea. Fabricators and pipe welders rely on turning rolls to maintain consistent weld quality on tanks, pressure vessels, and large-diameter pipework by keeping the weld in the optimal flat position throughout the process. Request a quote today for export-ready supply with competitive pricing through a KITA-registered Korean exporter.
2 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 741-1162 | Wellman TR | GM | Wellman TR (Piping) | Width: 300 | Depth: 600 | Height: 300 | Weight: 55 | Speed: 0.4~13 | Allowable Load: 1500 | Piping Specification: 25~300 | ||
| 741-1171 | Wellman TR | GM | Wellman TR (Industrial) | Width: 300 | Depth: 900 | Height: 300 | Weight: 70 | Speed: 0.4~13 | Allowable Load: 1500 | Piping Specification: 25~1000 |
