Drills & Drill Sets
Hanguk Tuksu

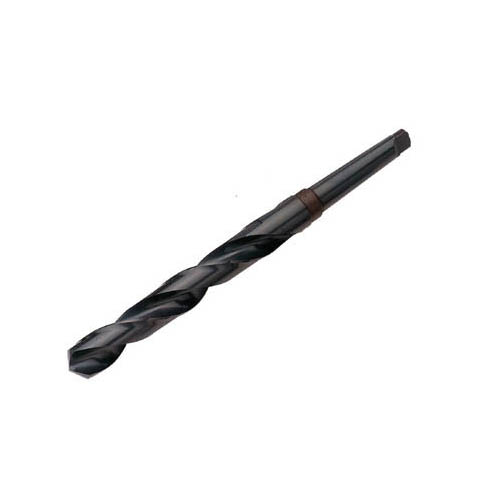

[Hanguk Tuksu] — 316-6635 Taper Drill
Family ID: 316-6635
Hanguk Tuksu 316-6635 Taper Drill is a precision cutting tool designed to produce tapered holes and prepare work-pieces for taper pins, reamers, or tapered fasteners, sourced direct from Korea. Taper drills are commonly used in metalworking, toolroom operations, and mechanical assembly wherever a conical bore profile is required for a secure, self-locking fit. Request a quote today to access export-ready supply, competitive pricing, and reliable fulfillment through a KITA-registered Korean exporter.
28 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 316-6635 | — | Hanguk Tuksu | 32.5MM | Spec: MT4 32.5 | Cutting Length: 195 | Overall Length: 315 | ||
| 316-6644 | — | Hanguk Tuksu | 33.0MM | Spec: MT4 33.0 | Cutting Length: 200 | Overall Length: 345 | ||
| 316-6662 | — | Hanguk Tuksu | 34.0MM | Spec: MT4 34.0 | Cutting Length: 205 | Overall Length: 350 | ||
| 316-6680 | — | Hanguk Tuksu | 35.0MM | Spec: MT4 35.0 | Cutting Length: 205 | Overall Length: 350 | ||
| 316-6705 | — | Hanguk Tuksu | 36.0MM | Spec: MT4 36.0 | Cutting Length: 210 | Overall Length: 355 | ||
| 316-6723 | — | Hanguk Tuksu | 37.0MM | Spec: MT4 37.0 | Cutting Length: 210 | Overall Length: 355 | ||
| 316-6741 | — | Hanguk Tuksu | 38.0MM | Spec: MT4 38.0 | Cutting Length: 215 | Overall Length: 360 | ||
| 316-6769 | — | Hanguk Tuksu | 39.0MM | Spec: MT4 39.0 | Cutting Length: 215 | Overall Length: 360 | ||
| 316-6787 | — | Hanguk Tuksu | 40.0MM | Spec: MT4 40.0 | Cutting Length: 220 | Overall Length: 365 | ||
| 316-6802 | — | Hanguk Tuksu | 41.0MM | Spec: MT4 41.0 | Cutting Length: 220 | Overall Length: 365 | ||
| 316-6820 | — | Hanguk Tuksu | 42.0MM | Spec: MT4 42.0 | Cutting Length: 225 | Overall Length: 370 | ||
| 316-6839 | — | Hanguk Tuksu | 43.0MM | Spec: MT4 43.0 | Cutting Length: 225 | Overall Length: 370 | ||
| 316-6857 | — | Hanguk Tuksu | 44.0MM | Spec: MT4 44.0 | Cutting Length: 230 | Overall Length: 375 | ||
| 316-6875 | — | Hanguk Tuksu | 45.0MM | Spec: MT4 45.0 | Cutting Length: 230 | Overall Length: 375 | ||
| 316-6884 | — | Hanguk Tuksu | 46.0MM | Spec: MT4 46.0 | Cutting Length: 230 | Overall Length: 375 | ||
| 316-6909 | — | Hanguk Tuksu | 47.0MM | Spec: MT4 47.0 | Cutting Length: 230 | Overall Length: 375 | ||
| 316-6918 | — | Hanguk Tuksu | 48.0MM | Spec: MT4 48.0 | Cutting Length: 240 | Overall Length: 385 | ||
| 316-6936 | — | Hanguk Tuksu | 49.0MM | Spec: MT4 49.0 | Cutting Length: 240 | Overall Length: 385 | ||
| 316-6954 | — | Hanguk Tuksu | 50.0MM | Spec: MT4 50.0 | Cutting Length: 245 | Overall Length: 390 | ||
| 316-6963 | — | Hanguk Tuksu | 51.0MM | Spec: MT5 51.0 | Cutting Length: 245 | Overall Length: 390 | ||
| 316-6981 | — | Hanguk Tuksu | 52.0MM | Spec: MT5 52.0 | Cutting Length: 250 | Overall Length: 430 | ||
| 316-6990 | — | Hanguk Tuksu | 53.0MM | Spec: MT5 53.0 | Cutting Length: 250 | Overall Length: 430 | ||
| 316-7005 | — | Hanguk Tuksu | 54.0MM | Spec: MT5 54.0 | Cutting Length: 255 | Overall Length: 435 | ||
| 316-7023 | — | Hanguk Tuksu | 55.0MM | Spec: MT5 55.0 | Cutting Length: 255 | Overall Length: 435 | ||
| 316-7032 | — | Hanguk Tuksu | 56.0MM | Spec: MT5 56.0 | Cutting Length: 265 | Overall Length: 435 | ||
| 316-7041 | — | Hanguk Tuksu | 57.0MM | Spec: MT5 57.0 | Cutting Length: 265 | Overall Length: 445 | ||
| 316-7050 | — | Hanguk Tuksu | 58.0MM | Spec: MT5 58.0 | Cutting Length: 265 | Overall Length: 445 | ||
| 316-7069 | — | Hanguk Tuksu | 59.0MM | Spec: MT5 59.0 | Cutting Length: 265 | Overall Length: 445 |
