![[Hanil] — PH-255A Automatic Pump Submersible Pump](https://img.prosourcemro.com/2026/05/3355723-1-2.jpg)
Pumps
Hanil

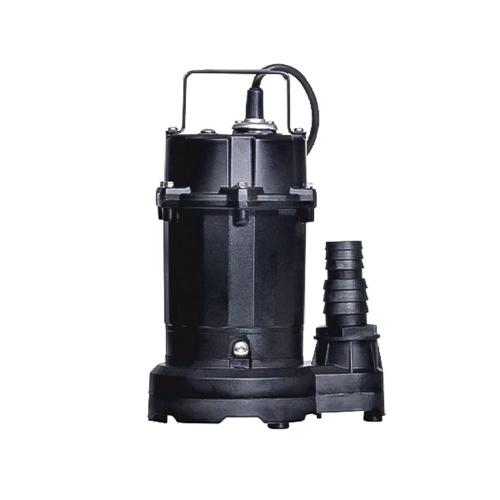

[Hanil] — PH-255A Automatic Pump Submersible Pump
Family ID: 529-5922
Hanil's PH-255A Automatic Pump is a submersible pump designed for efficient fluid transfer and water removal, sourced direct from Korea. Submersible pumps of this type are commonly used in construction sites, basements, agricultural drainage, and industrial water management applications where reliable automatic operation is essential. Request a quote today for export-ready supply of the PH-255A at competitive pricing through a KITA-registered Korean exporter.
15 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 529-5922 | PH-255A | Hanil | IP-217 | Weight: 4.8 | Outlet Diameter: 25A Thread / Φ19/25 Hose | A: 189 | C: 274 | Rated Output: 1/6 | Max Flow Rate: 6/900 | Total Head: 7 | Suction Head: - | Lift Height: 7 | B: 142 | Supply Voltage: Single-Phase 220V | ||
| 529-5931 | PA-1688 | Hanil | IP-217-F | Weight: 5.1 | Outlet Diameter: 25A Thread / Φ19/25 Hose | A: 189 | C: 274 | Rated Output: 1/6 | Max Flow Rate: 6/900 | Total Head: 7 | Suction Head: - | Lift Height: 7 | B: 142 | Supply Voltage: Single-Phase 220V | ||
| 529-5940 | IP-317 (114730) | Hanil | IP-317 | Weight: 5.5 | Outlet Diameter: 32A Thread / Φ32/38 Hose | A: 196 | C: 287 | Rated Output: 1/3 | Max Flow Rate: 10/200 | Total Head: 9.5 | Suction Head: - | Lift Height: 9.5 | B: 143 | Supply Voltage: Single-Phase 220V | ||
| 529-5959 | IP-317-F (114731) | Hanil | IP-317-F | Weight: 5.8 | Outlet Diameter: 32A Thread / Φ32/38 Hose | A: 196 | C: 287 | Rated Output: 1/3 | Max Flow Rate: 10/200 | Total Head: 9.5 | Suction Head: - | Lift Height: 9.5 | B: 143 | Supply Voltage: Single-Phase 220V | ||
| 529-5968 | IPV-327 (112324) | Hanil | IPV-327 | Weight: 10.5 | Outlet Diameter: 32A Thread / Φ32/38 Hose | A: 140 | C: 345 | Rated Output: 1/3 | Max Flow Rate: 10/200 | Total Head: 8.5 | Suction Head: - | Lift Height: 8.5 | B: 193 | Supply Voltage: Single-Phase 220V | ||
| 529-5977 | IPV-327-F (112325) | Hanil | IPV-327-F | Weight: 11.0 | Outlet Diameter: 32A Thread / Φ32/38 Hose | A: 140 | C: 345 | Rated Output: 1/3 | Max Flow Rate: 10/200 | Total Head: 8.5 | Suction Head: - | Lift Height: 8.5 | B: 193 | Supply Voltage: Single-Phase 220V | ||
| 529-7081 | IP-415HC (130931) | Hanil | IP-415HC | Weight: 15.3 | Outlet Diameter: 50A Thread / Φ50 Hose | A: 184 | C: 397 | Rated Output: 1/2 | Max Flow Rate: 19/200 | Total Head: 13 | Suction Head: - | Lift Height: 13 | B: 256 | Supply Voltage: Single-Phase 220V | ||
| 529-7090 | IP-415HC F (130932) | Hanil | IP-415HC-F | Weight: 15.6 | Outlet Diameter: 50A Thread / Φ50 Hose | A: 184 | C: 397 | Rated Output: 1/2 | Max Flow Rate: 19/200 | Total Head: 13 | Suction Head: - | Lift Height: 13 | B: 256 | Supply Voltage: Single-Phase 220V | ||
| 529-7106 | IP-815HC (130949) | Hanil | IP-815HC | Weight: 18.4 | Outlet Diameter: 50A Thread / Φ50 Hose | A: 184 | C: 437 | Rated Output: 1 | Max Flow Rate: 23/000 | Total Head: 17 | Suction Head: - | Lift Height: 17 | B: 256 | Supply Voltage: Single-Phase 220V | ||
| 529-7115 | IP-815HC-F (130950) | Hanil | IP-815HC-F | Weight: 18.7 | Outlet Diameter: 50A Thread / Φ50 Hose | A: 184 | C: 437 | Rated Output: 1 | Max Flow Rate: 23/000 | Total Head: 17 | Suction Head: - | Lift Height: 17 | B: 256 | Supply Voltage: Single-Phase 220V | ||
| 529-7124 | IPV-415HC(130940) | Hanil | IPV-415HC | Weight: 15.2 | Outlet Diameter: 50A Thread / Φ50 Hose | A: 160 | C: 43 | Rated Output: 1/2 | Max Flow Rate: 21/900 | Total Head: 10 | Suction Head: - | Lift Height: 10 | B: 248 | Supply Voltage: Single-Phase 220V | ||
| 529-7133 | IPV-415HC-F(130941) | Hanil | IPV-415HC-F | Weight: 15.5 | Outlet Diameter: 50A Thread / Φ50 Hose | A: 160 | C: 423 | Rated Output: 1/2 | Max Flow Rate: 21/900 | Total Head: 10 | Suction Head: - | Lift Height: 10 | B: 256 | Supply Voltage: Single-Phase 220V | ||
| 529-7142 | IPV-815HC (130963) | Hanil | IPV-815HC | Weight: 18.2 | Outlet Diameter: 50A Thread / Φ50 Hose | A: 160 | C: 463 | Rated Output: 1 | Max Flow Rate: 24/600 | Total Head: 12 | Suction Head: - | Lift Height: 13 | B: 248 | Supply Voltage: Single-Phase 220V | ||
| 529-7151 | IPV-815HC-F (130964) | Hanil | IPV-815HC-F | Weight: 18.5 | Outlet Diameter: 50A Thread / Φ50 Hose | A: 160 | C: 463 | Rated Output: 1 | Max Flow Rate: 24/600 | Total Head: 12 | Suction Head: - | Lift Height: 13 | B: 248 | Supply Voltage: Single-Phase 220V | ||
| 529-7160 | IP-835HC-F (130957) | Hanil | IP-835HC-F | Weight: 10.7 | Outlet Diameter: 50A Thread / Φ50 Hose | A: 190 | C: 410 | Rated Output: 1 | Max Flow Rate: 26/700 | Total Head: 20 | Suction Head: - | Lift Height: 20 | B: 255 | Supply Voltage: Single-Phase 220V |
