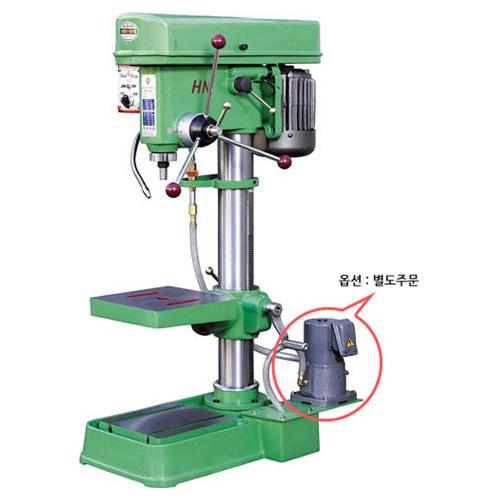

[Heenam] — HN-360 Drilling Machine

Family ID: 545-0121

The Heenam HN-360 Drilling Machine is a machine tool designed for precision hole-making operations, sourced direct from Korea. Drilling machines of this type are widely used across metalworking, fabrication, and manufacturing facilities to bore accurate, repeatable holes in metal, wood, and composite materials. Request a quote today for export-ready supply at competitive pricing, fulfilled through a KITA-registered Korean exporter.

8 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code	Description	Brand	Spec
545-0121	HN-360	Heenam	HN-360 (Three-phase 380V), 13mm \| Weight: 80.0 \| Drilling Capacity: 13 \| Chuck Size: JT6 \| Voltage: Three-phase 380 \| Motor: 0.40x4-Pole \| V-Belt: A43x1 pcs
545-0130	HN-400	Heenam	HN-400 (3-phase 380V), 19mm \| Weight: 88.0 \| Drilling Capacity: 19 \| Chuck Size: MT2 \| Voltage: Three-phase 380 \| Motor: 0.40x4-Pole \| V-Belt: A47x1 pcs
545-0149	HN-450	Heenam	HN-450 (Three-phase 380V), 23mm \| Weight: 125.0 \| Drilling Capacity: 23 \| Chuck Size: MT2 \| Voltage: Three-phase 380 \| Motor: 0.75x4-Pole \| V-Belt: A50x1 pcs
545-0158	HN-025	Heenam	HN-025 (Three-phase 380V), 32mm \| Weight: 140.0 \| Drilling Capacity: 32 \| Chuck Size: MT3 \| Voltage: Three-phase 380 \| Motor: 0.75x4-Pole \| V-Belt: B30/B36x1 pcs
545-0167	HN-032	Heenam	HN-032 (Three-phase 380V), 50mm \| Weight: 310.0 \| Drilling Capacity: 50 \| Chuck Size: MT4 \| Voltage: Three-phase 380 \| Motor: 1.5x6-Pole \| V-Belt: C40/C45/C72x1 pcs
545-0176	HN-500	Heenam	HN-500 (Three-phase 380V), 13mm \| Weight: 150.0 \| Drilling Capacity: 13 \| Chuck Size: JT6 \| Voltage: Three-phase 380 \| Motor: 0.40x4-Pole \| V-Belt: A79x1 pcs
545-0185	HN-510	Heenam	HN-510 (Three-phase 380V), 19mm \| Weight: 160.0 \| Drilling Capacity: 19 \| Chuck Size: MT2 \| Voltage: Three-phase 380 \| Motor: 0.40x4-Pole \| V-Belt: A79x1 pcs
545-0194	HN-520	Heenam	HN-520 (Three-phase 380V), 32mm \| Weight: 280.0 \| Drilling Capacity: 32 \| Chuck Size: MT3 \| Voltage: Three-phase 380 \| Motor: 0.75x4-Pole \| V-Belt: B47/B58x1 pcs
