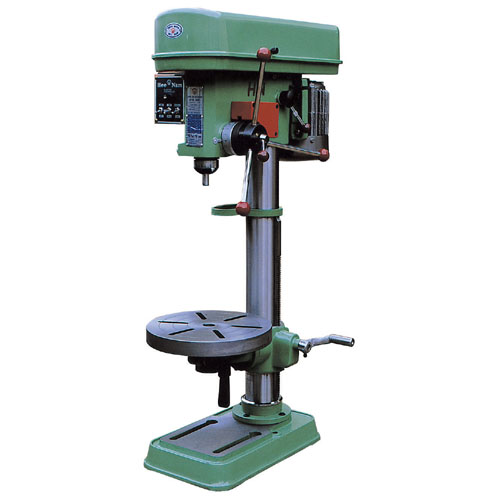

[Heenam] — HNTD-360 Tapping Drilling Machine
Family ID: 545-0228
The Heenam HNTD-360 Tapping Drilling Machine is a combined tapping and drilling unit designed to handle both hole-making and thread-cutting operations in a single machine, sourced direct from Korea. Fabricators, machine shops, and production facilities rely on this type of equipment to streamline metalworking workflows by eliminating the need to transfer workpieces between separate drilling and tapping stations. Request a quote today to access export-ready supply, competitive ex-works pricing, and the full backing of a KITA-registered Korean exporter.
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 545-0228 | HNTD-360 | Heenam | HNTD-360 (Three-phase 380V), 13mm | Weight: 102.0 | Tapping Capacity: Steel:10/Cast Iron:12 | Drilling Capacity: 13 | Chuck Size: JT6 | Voltage: Three-phase 380 | Motor: 0.40x4-Pole | V-Belt: A28/A32/A46x1 pcs | ||
| 545-0237 | HNTD-400 | Heenam | HNTD-400 (Three-phase 380V), 23mm | Weight: 104.0 | Tapping Capacity: Steel:14/Cast Iron:16 | Drilling Capacity: 23 | Chuck Size: MT2 | Voltage: Three-phase 380 | Motor: 0.40x6-Pole | V-Belt: A32/A47/B29x1 pcs | ||
| 545-0246 | HNTD-450 | Heenam | HNTD-450 (Three-Phase 380V), 23mm | Weight: 140.0 | Tapping Capacity: Steel:16/Cast Iron:16 | Drilling Capacity: 23 | Chuck Size: MT2 | Voltage: Three-phase 380 | Motor: 0.75x4-Pole | V-Belt: A37/A52/B31x1 pcs | ||
| 545-0255 | HNTD-025 | Heenam | HNTD-025 (3-phase 380V), 32mm | Weight: 172.0 | Tapping Capacity: Steel:16/Cast Iron:19 | Drilling Capacity: 32 | Chuck Size: MT3 | Voltage: Three-phase 380 | Motor: 0.75x6-Pole | V-Belt: B33/B36/B54x1 pcs | ||
| 545-0264 | HNTD-032 | Heenam | HNTD-032 (3-phase 380V), 50mm | Weight: 315.0 | Tapping Capacity: Steel:20/Cast Iron:25 | Drilling Capacity: 50 | Chuck Size: MT4 | Voltage: Three-phase 380 | Motor: 1.5x6-Pole | V-Belt: C45/C50/C54x1 pcs | ||
| 545-0273 | HNTD-500 | Heenam | HNTD-500 (Three-phase 380V), 13mm | Weight: 155.0 | Tapping Capacity: Steel:10/Cast Iron:12 | Drilling Capacity: 13 | Chuck Size: JT6 | Voltage: Three-phase 380 | Motor: 0.40x4-Pole | V-Belt: A42/A50/A78x1 pcs | ||
| 545-0282 | HNTD-510 | Heenam | HNTD-510 (Three-phase 380V), 23mm | Weight: 165.0 | Tapping Capacity: Steel:14/Cast Iron:16 | Drilling Capacity: 23 | Chuck Size: MT2 | Voltage: Three-phase 380 | Motor: 0.40x6-Pole | V-Belt: A50/A78/B43x1 pcs | ||
| 545-0291 | HNTD-520 | Heenam | HNTD-520 (3-phase 380V), 32mm | Weight: 285.0 | Tapping Capacity: Steel:16/Cast Iron:19 | Drilling Capacity: 32 | Chuck Size: MT3 | Voltage: Three-phase 380 | Motor: 0.75x6-Pole | V-Belt: B51/B57/B93x1 pcs |
