![[Honda] — WB-20XT4 Pump (Honda)](https://img.prosourcemro.com/2026/05/3364966-1-2.jpg)
Generators & Pumps
Honda

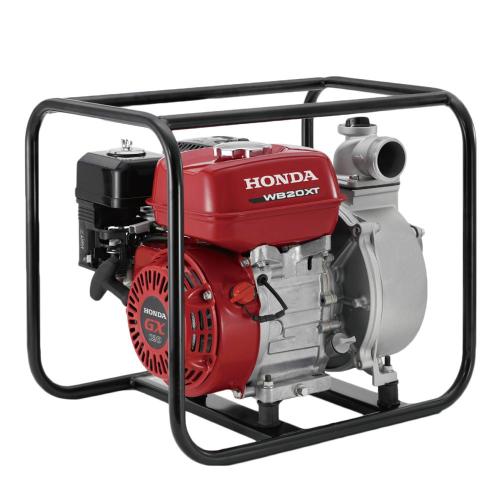

[Honda] — WB-20XT4 Pump (Honda)
Family ID: 528-3246
Honda WB-20XT4 is a gasoline-powered water transfer pump built for high-volume fluid movement, sourced direct from Korea. Commonly deployed on construction sites, agricultural operations, and flood-response applications, this type of centrifugal pump handles the demanding task of moving large quantities of water efficiently across worksites. Request a quote today for export-ready supply, competitive pricing, and reliable fulfillment through a KITA-registered Korean exporter.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 528-3246 | WB-20XT4 | Honda | WB-20XT4(50mm 2') | Width: 485 | Depth: 365 | Height: 425 | Weight: 20.0 | Engine Model: Honda GX120 | Displacement: 122.0 | Max Output: 3.2/2.4 | Flow Rate: 620 | Fuel Tank Capacity: 2.0 | Total Head: 32.0 | Suction Head: 7.5 | Inlet/Outlet Pipe Diameter: 50(2') | ||
| 528-3255 | WB-30XT3 | Honda | WB-30XT3(75mm 3') | Width: 510 | Depth: 385 | Height: 455 | Weight: 26.0 | Engine Model: Honda GX160 | Displacement: 163.0 | Max Output: 4.8/3.6 | Flow Rate: 1/100 | Fuel Tank Capacity: 3.1 | Total Head: 23.0 | Suction Head: 7.5 | Inlet/Outlet Pipe Diameter: 80(3') | ||
| 528-3264 | WL-20XH | Honda | WL-20XH 50mm (2') | Width: 490 | Depth: 385 | Height: 410 | Weight: 24.0 | Engine Model: Honda GP160 | Displacement: 163.0 | Max Output: 4.8/3.6 | Flow Rate: 670 | Fuel Tank Capacity: 3.1 | Total Head: 32.0 | Suction Head: 7.5 | Inlet/Outlet Pipe Diameter: 50(2') | ||
| 528-3273 | WL-30XH | Honda | WL-30XH (75mm 3') | Width: 510 | Depth: 385 | Height: 435 | Weight: 25.0 | Engine Model: Honda GP160 | Displacement: 163.0 | Max Output: 4.8/3.6 | Flow Rate: 1/100 | Fuel Tank Capacity: 3.1 | Total Head: 23.0 | Suction Head: 7.5 | Inlet/Outlet Pipe Diameter: 80(3') |
