![[Hwaseung] — HHHR036401Q6 High-Pressure Hose](https://img.prosourcemro.com/2026/05/2212567-1.jpg)
Hoses & Bands
Hwaseung

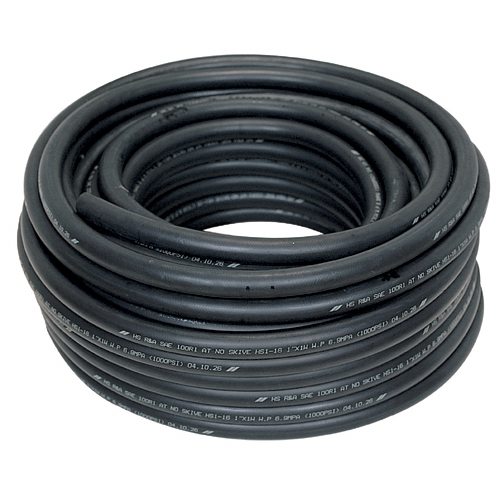

[Hwaseung] — HHHR036401Q6 High-Pressure Hose
Family ID: 800-0699
Hwaseung HHHR036401Q6 High-Pressure Hose delivers reliable fluid conveyance under demanding pressure conditions, sourced direct from Korea. High-pressure hoses of this type are widely used in hydraulic systems, heavy machinery, and industrial fluid transfer applications where secure, leak-free performance is critical. Request a quote today for export-ready supply at competitive pricing through a KITA-registered Korean exporter.
14 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 800-0699 | HHHR036401Q6 | Hwaseung | 6.4mm (1/4')x1W | Spec: 1/4x1W | Inner: 6.4 | Max Pressure: 230 | Length: 100 | Outer: 13.4 | ||
| 800-0705 | HHHT036501Q6 | Hwaseung | 6.4mm (1/4')x2W | Spec: 1/4X2W | Inner: 6.4 | Max Pressure: 410 | Length: 100 | Outer: 15.0 | ||
| 800-0714 | HHHR066401Q6 | Hwaseung | 9.5mm (3/8')x1W | Spec: 3/8x1W | Inner: 9.5 | Max Pressure: 210 | Length: 100 | Outer: 17.4 | ||
| 800-0723 | HHHT066501Q6 | Hwaseung | 9.5mm (3/8')x2W | Spec: 3/8x2W | Inner: 9.5 | Max Pressure: 350 | Length: 100 | Outer: 19 | ||
| 800-0732 | HHHR086401Q6 | Hwaseung | 13mm (1/2')x1W | Spec: 1/2x1W | Inner: 12.7 | Max Pressure: 175 | Length: 100 | Outer: 20.6 | ||
| 800-0741 | HHHT086501Q6 | Hwaseung | 13mm (1/2')x2W | Spec: 1/2x2W | Inner: 12.7 | Max Pressure: 300 | Length: 100 | Outer: 22.2 | ||
| 800-0750 | HHHR116401Q6 | Hwaseung | 19mm (3/4')x1W | Spec: 3/4x1W | Inner: 19.1 | Max Pressure: 123 | Length: 60 | Outer: 27.7 | ||
| 800-0769 | HHHT116501Q6 | Hwaseung | 19mm (3/4')x2W | Spec: 3/4x2W | Inner: 19.1 | Max Pressure: 217 | Length: 60 | Outer: 29.3 | ||
| 800-0778 | HHHR136401Q6 | Hwaseung | 25mm (1')x1W | Spec: 1x1W | Inner: 25.4 | Max Pressure: 90 | Length: 50 | Outer: 35.6 | ||
| 800-0787 | HHHT136501Q6 | Hwaseung | 25mm (1')x2W | Spec: 1x2W | Inner: 25.4 | Max Pressure: 175 | Length: 50 | Outer: 38.1 | ||
| 800-0796 | HHHR156401Q6 | Hwaseung | 32mm (1 1/4')x1W | Spec: 1 1/4x1W | Inner: 31.8 | Max Pressure: 63 | Length: 20 | Outer: 43.5 | ||
| 800-0802 | HHHT156501Q6 | Hwaseung | 32mm (1 1/4')x2W | Spec: 1 1/4x2W | Inner: 31.8 | Max Pressure: 158 | Length: 20 | Outer: 48.3 | ||
| 800-0839 | HHHR226401Q6 | Hwaseung | 50mm (2')x1W | Spec: 2x1W | Inner: 50.8 | Max Pressure: 40 | Length: 20 | Outer: 64.0 | ||
| 800-0848 | HHHT226501Q6 | Hwaseung | 50mm (2')x2W | Spec: 2x2W | Inner: 50.8 | Max Pressure: 88 | Length: 20 | Outer: 67.3 |
