Electrical Controls
JINHUNG

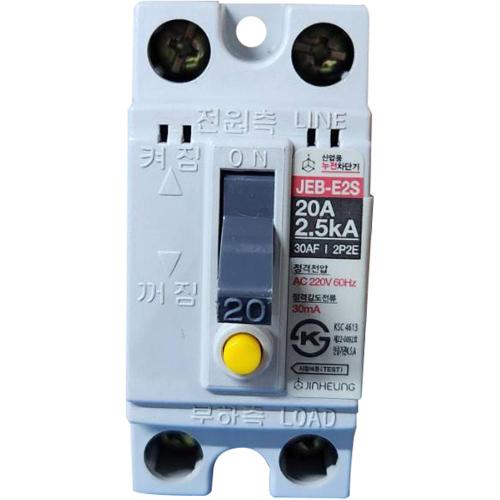

[JINHUNG] — JEB-E2S Residual Current Circuit Breaker
Family ID: 784-0018
JINHUNG JEB-E2S Residual Current Circuit Breaker delivers ground-fault and leakage-current protection for electrical circuits, sourced direct from Korea. RCCBs of this type are commonly installed in commercial and industrial distribution panels to interrupt power automatically when leakage current exceeds a safe threshold, protecting personnel and equipment from electric shock hazards. Request a quote today for export-ready supply at competitive pricing through a KITA-registered Korean exporter.
16 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 784-0018 | JEB-E2S | JINHUNG | JEB-E2S (20A) 2.5kA | Breaking Current: 2.5 | Rated Current: 20 | ||
| 784-0027 | JEB-E2S | JINHUNG | JEB-E2S (30A) 2.5kA | Breaking Current: 2.5 | Rated Current: 30 | ||
| 784-0036 | JEB-E2S | JINHUNG | JEB-E2S (15A) High-Sensitivity 2.5kA | Breaking Current: 2.5 | Rated Current: 15 | ||
| 784-0045 | JEB-E2S | JINHUNG | JEB-E2S (20A) High-Sensitivity 2.5kA | Breaking Current: 2.5 | Rated Current: 20 | ||
| 784-0063 | JEB-2022LS | JINHUNG | JEB-2022LS (20A) 2.5kA | Breaking Current: 2.5 | Rated Current: 20 | ||
| 784-0072 | JEB-3022LS | JINHUNG | JEB-3022LS (30A) 2.5kA | Breaking Current: 2.5 | Rated Current: 30 | ||
| 784-0081 | JEB-52P | JINHUNG | JEB-52P (30A) 5kA | Breaking Current: 5 | Rated Current: 30 | ||
| 784-0090 | JEB-52P | JINHUNG | JEB-52P (40A) 5kA | Breaking Current: 5 | Rated Current: 40 | ||
| 784-0106 | JEB-52P | JINHUNG | JEB-52P (50A) 5kA | Breaking Current: 5 | Rated Current: 50 | ||
| 784-0115 | JEB-53P | JINHUNG | JEB-53P (30A) 5kA | Breaking Current: 5 | Rated Current: 30 | ||
| 784-0133 | JEB-53P | JINHUNG | JEB-53P (50A) 5kA | Breaking Current: 5 | Rated Current: 50 | ||
| 784-0188 | JEBS-102H | JINHUNG | JEBS-102H (100A) 14kA | Breaking Current: 14 | Rated Current: 100 | ||
| 784-0203 | JEBS-103H | JINHUNG | JEBS-103H (100A) 14kA | Breaking Current: 14 | Rated Current: 100 | ||
| 784-0221 | JEBS-104H | JINHUNG | JEBS-104H (30A) 14kA | Breaking Current: 14 | Rated Current: 30 | ||
| 784-0249 | JEBS-104H | JINHUNG | JEBS-104H (50A) 14kA | Breaking Current: 14 | Rated Current: 50 | ||
| 784-0258 | JEBS-104H | JINHUNG | JEBS-104H (100A) 14kA | Breaking Current: 14 | Rated Current: 100 |
