Surface Plates
Jungwoo

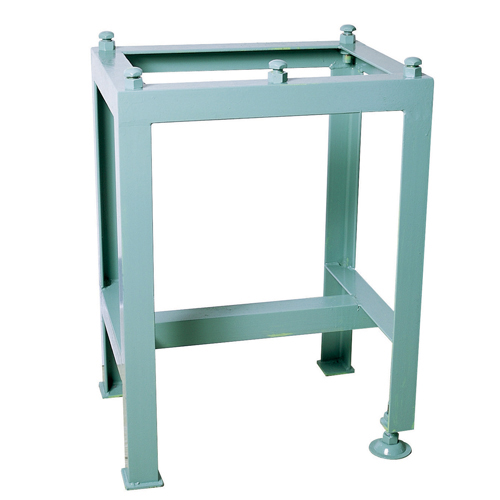

[Jungwoo] — 457-1630 Surface Plate Stand
Family ID: 457-1630
The Jungwoo 457-1630 Surface Plate Stand is a dedicated support stand designed to hold surface plates securely at a stable working height, sourced direct from Korea. Surface plate stands are used in metrology and quality control environments to position granite or cast iron surface plates at an ergonomic level, allowing inspectors and machinists to perform accurate layout, measurement, and part inspection work. Request a quote today for export-ready supply at competitive pricing through a KITA-registered Korean exporter.
13 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 457-1630 | — | Jungwoo | 300 x 300 Type | Surface Plate Size: 300x300 | LxWxH: 310x310x770 | ||
| 457-1649 | — | Jungwoo | 450*300 Size | Plate Spec: 450x300 | LxWxH: 460x310x750 | ||
| 457-1658 | — | Jungwoo | 500×500 Size | Surface Plate Size: 500x500 | LxWxH: 420x420x750 | ||
| 457-1667 | — | Jungwoo | For 600×450 | Surface Plate Size: 600x450 | LxWxH: 500x370x750 | ||
| 457-1676 | — | Jungwoo | 600×600 Size | Surface Plate Specification: 600x600 | LxWxH: 500x500x730 | ||
| 457-1685 | — | Jungwoo | 750*500 Size | Surface Plate Spec: 750x500 | LxWxH: 630x420x720 | ||
| 457-1694 | — | Jungwoo | For 900*600 | Surface Plate Size: 900x600 | LxWxH: 670x500x720 | ||
| 457-1700 | — | Jungwoo | 1000*750 Size | Surface Plate Specification: 1/000x750 | LxWxH: 700x630x720 | ||
| 457-1719 | — | Jungwoo | 1000*1000 Type | Surface Plate Specification: 1/000x1/000 | LxWxH: 700x700x700 | ||
| 457-1728 | — | Jungwoo | 1200*900 Size | Surface Plate Spec: 1/200x900 | LxWxH: 920x650x700 | ||
| 457-1737 | — | Jungwoo | 1500*1000 | Surface Plate Size: 1/500x1/000 | LxWxH: 1/100x700x650 | ||
| 457-1746 | — | Jungwoo | 2000*1000 Type | Surface Plate Specification: 2,000x1,000 | LxWxH: 1,500x700x650 | ||
| 457-1755 | — | Jungwoo | 2000*1500 Size | Surface Plate Specification: 2,000x1,500 | LxWxH: 1,500x1,100x550 |
