Air Units
KCC

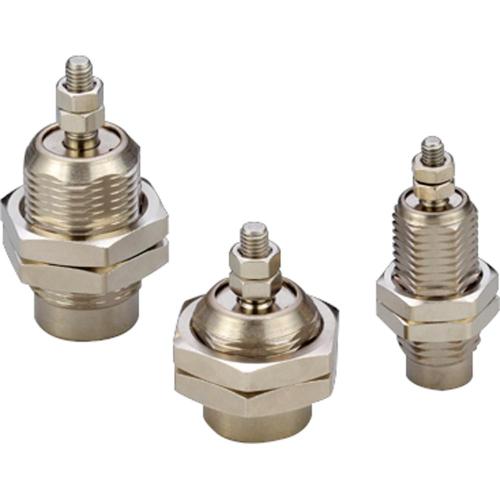

[KCC] — AJPB6-5 Single Acting Cylinder
Family ID: 627-1682
The KCC AJPB6-5 is a single acting cylinder designed to deliver controlled linear motion in one direction using air pressure, sourced direct from Korea. Single acting cylinders are widely used in clamping, pressing, and ejection applications where a spring return mechanism handles the retraction stroke, making them a practical choice for automated machinery and production line equipment. Request a quote today for export-ready supply of KCC pneumatic cylinders at competitive pricing through a KITA-registered Korean exporter.
9 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 627-1682 | AJPB6-5 | KCC | AJPB6-5 | Inner: 6 | Thread Spec: M3 | Stroke Length: 5 | ||
| 627-1691 | AJPB6-10 | KCC | AJPB6-10 | Inner: 6 | Thread Spec: M3 | Stroke Length: 10 | ||
| 627-1707 | AJPB6-15 | KCC | AJPB6-15 | Inner: 6 | Thread Spec: M3 | Stroke Length: 15 | ||
| 627-1716 | AJPB10-5 | KCC | AJPB10-5 | Inner: 10 | Thread Spec: M4 | Stroke Length: 5 | ||
| 627-1725 | AJPB10-10 | KCC | AJPB10-10 | Inner: 10 | Thread Spec: M4 | Stroke Length: 10 | ||
| 627-1734 | AJPB10-15 | KCC | AJPB10-15 | Inner: 10 | Thread Spec: M4 | Stroke Length: 15 | ||
| 627-1743 | AJPB15-5 | KCC | AJPB15-5 | Inner: 15 | Thread Spec: M5 | Stroke Length: 5 | ||
| 627-1752 | AJPB15-10 | KCC | AJPB15-10 | Inner: 15 | Thread Spec: M5 | Stroke Length: 10 | ||
| 627-1761 | AJPB15-15 | KCC | AJPB15-15 | Inner: 15 | Thread Spec: M5 | Stroke Length: 15 |
