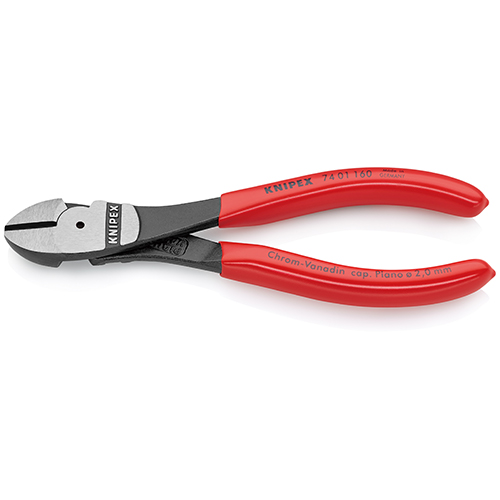

KNIPEX — High Leverage Diagonal Cutter 74 01 Series
Family ID: 215-6598
KNIPEX 74 01 series high leverage diagonal cutter. 20% less handle force vs standard. Sharp blade angle for flush cuts. Cuts piano wire and all common wire types. Chrome vanadium steel. Hardness: 64 HRC. Available: 74 01 140 SB / 74 01 160 SB / 74 01 180 SB / 74 01 200 SB / 74 01 250 SB. Origin: Germany.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 215-6598 | High leverage diagonal cutter. 20% less handle force. Cuts piano wire. Blade: 64 HRC. | KNIPEX | Model: 74 01 140 SB | Length: 140mm | Soft wire: 3.1mm | Copper wire: 2.0mm | Piano wire: 1.5mm | Weight: 131g | ||
| 215-6613 | High leverage diagonal cutter. 20% less handle force. Cuts piano wire. | KNIPEX | Model: 74 01 160 SB | Length: 160mm | Soft wire: 4.0mm | Copper wire: 2.5mm | Piano wire: 1.8mm | Weight: 224g | ||
| 215-6844 | High leverage diagonal cutter. 20% less handle force. Cuts piano wire. | KNIPEX | Model: 74 01 180 SB | Length: 180mm | Soft wire: 4.2mm | Copper wire: 3.0mm | Piano wire: 2.0mm | Weight: 263g | ||
| 215-8028 | High leverage diagonal cutter. 20% less handle force. Cuts piano wire. | KNIPEX | Model: 74 01 250 SB | Length: 250mm | Soft wire: 4.6mm | Copper wire: 3.5mm | Piano wire: 3.0mm | Weight: 391g |
