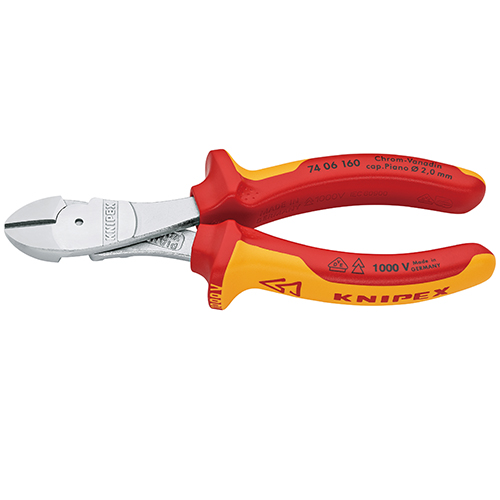

KNIPEX — Insulated High Leverage Diagonal Cutter 74 06 Series
Family ID: 215-7278
KNIPEX 74 06 series insulated high leverage diagonal cutter. Chrome finish. Hardness: 64 HRC. Optimized angle and force ratio for high cutting with minimal force. Cuts piano wire and all wire types. 1000V insulated. Available: 74 06 160 SB / 74 06 180 SB / 74 06 200 SB. Wire: 3.4–4.2mm / hard wire: 2.5–3.0mm / piano wire: 2.0–2.5mm. Origin: Germany.
3 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 215-7278 | Insulated high leverage diagonal cutter. 1000V. Piano wire cutting. Blade: 64 HRC. | KNIPEX | Model: 74 06 160 SB | Size: 6 in | Length: 160mm | Wire: 3.4mm | Hard wire: 2.5mm | Piano wire: 2.0mm | Weight: 215g | ||
| 217-2143 | Insulated high leverage diagonal cutter. 1000V. Piano wire cutting. Blade: 64 HRC. | KNIPEX | Model: 74 06 180 SB | Size: 7 in | Length: 180mm | Wire: 3.8mm | Hard wire: 2.7mm | Piano wire: 2.2mm | Weight: 280g | ||
| 215-6905 | Insulated high leverage diagonal cutter. 1000V. Piano wire cutting. Blade: 64 HRC. | KNIPEX | Model: 74 06 200 SB | Size: 8 in | Length: 200mm | Wire: 4.2mm | Hard wire: 3.0mm | Piano wire: 2.5mm | Weight: 308g |
