Clamps
LOBSTER

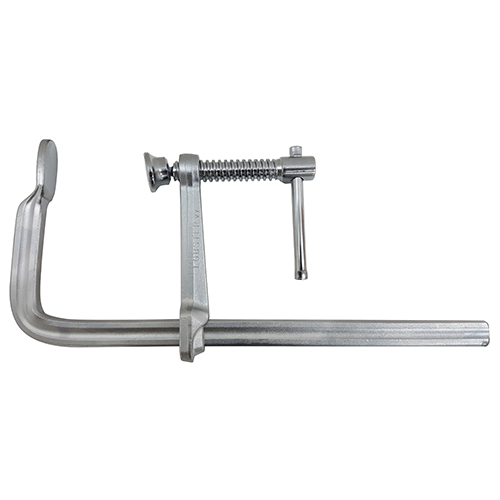

LOBSTER — L-Clamp BM-Series (Standard)
Family ID: 215-0956
LOBSTER BM-series standard L-clamp. Clamping force: 6500N. For core work and general steel fabrication. Both jaws tilt 20°. Bar handle for strong grip. Available sizes: 4 in (BM10-10A) / 6 in (BM15-10A) / 8 in (BM20-10A) / 10 in (BM25-12A) / 12 in (BM30-12A) / 14 in (BM35-12A) / 16 in (BM40-12A). Max opening: 180–400mm.
7 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 215-0956 | Standard L-clamp. Both jaws tilt 20°. Bar handle for strong grip. | LOBSTER | Model: BM10-10A | Size: 4 in | Max opening: 180mm | D: 32mm | H1: 10.4mm | H2: 21.4mm | ||
| 215-0965 | Standard L-clamp. Both jaws tilt 20°. Bar handle for strong grip. | LOBSTER | Model: BM15-10A | Size: 6 in | Max opening: 150mm | D: 32mm | H1: 10.4mm | H2: 21.4mm | ||
| 215-0974 | Standard L-clamp. Both jaws tilt 20°. Bar handle for strong grip. | LOBSTER | Model: BM20-10A | Size: 8 in | Max opening: 200mm | D: 32mm | H1: 10.4mm | H2: 21.4mm | ||
| 215-0983 | Standard L-clamp. Both jaws tilt 20°. Bar handle for strong grip. | LOBSTER | Model: BM25-12A | Size: 10 in | Max opening: 250mm | D: 32mm | H1: 10.4mm | H2: 21.4mm | ||
| 215-0992 | Standard L-clamp. Both jaws tilt 20°. Bar handle for strong grip. | LOBSTER | Model: BM30-12A | Size: 12 in | Max opening: 300mm | D: 32mm | H1: 10.4mm | H2: 21.4mm | ||
| 215-7481 | Standard L-clamp. Both jaws tilt 20°. Bar handle for strong grip. | LOBSTER | Model: BM35-12A | Size: 14 in | Max opening: 350mm | D: 32mm | H1: 10.4mm | H2: 21.4mm | ||
| 215-1016 | Standard L-clamp. Both jaws tilt 20°. Bar handle for strong grip. | LOBSTER | Model: BM40-12A | Size: 16 in | Max opening: 400mm | D: 32mm | H1: 10.4mm | H2: 21.4mm |
