Clamps
LOBSTER

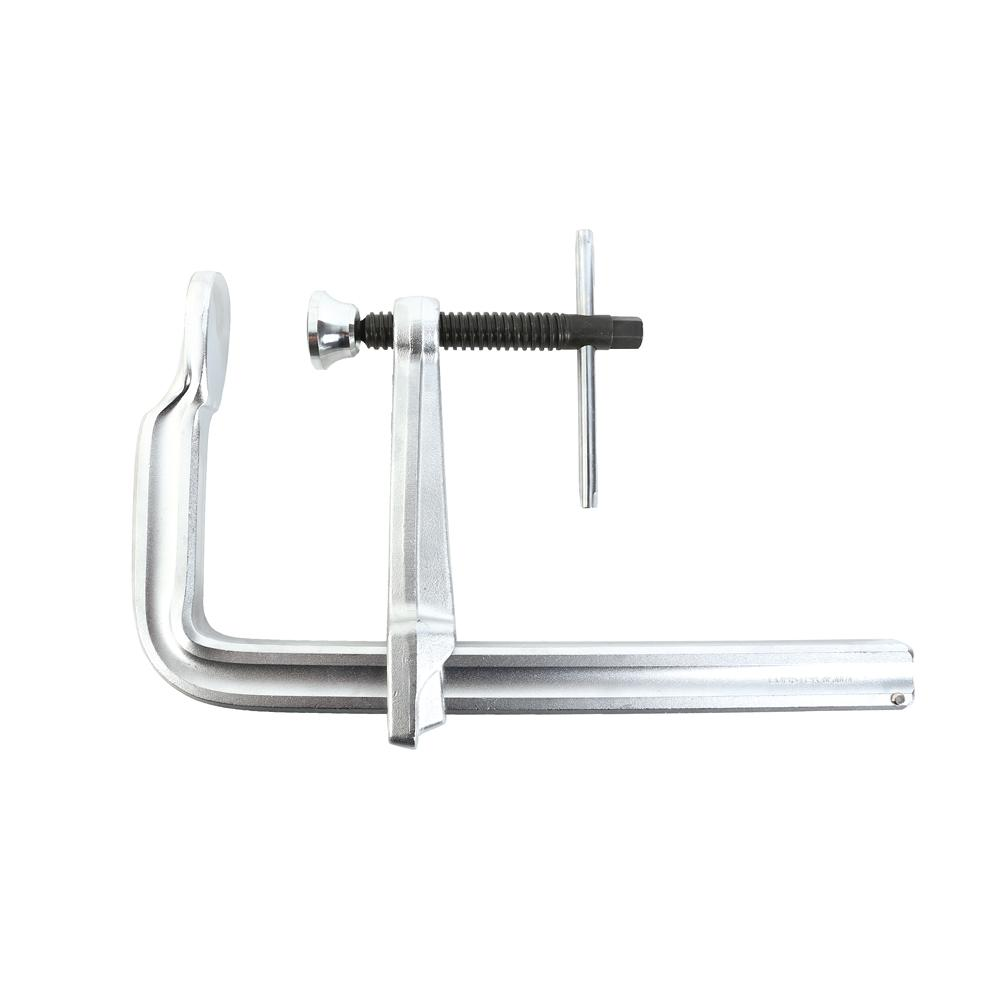

LOBSTER — L-Clamp BP-Series (High Strength Steel)
Family ID: 215-1025
LOBSTER BP-series high strength L-clamp for steel fabrication, shipbuilding, bridge construction. Clamping force: 21500N. Both jaws tilt 20°. Available sizes: 12 in (BP30-17A) / 16 in (BP40-17A) / 24 in (BP60-17A) / 32 in (BP80-17A). Max opening: 300–800mm.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 215-1025 | High strength L-clamp for steel fabrication, shipbuilding, bridge construction. Both jaws tilt 20°. Force: 21500N. | LOBSTER | Model: BP30-17A | Size: 12 in | Max opening: 300mm | H1: 20mm | H2: 39.4mm | ||
| 215-1034 | High strength L-clamp for steel fabrication, shipbuilding, bridge construction. Both jaws tilt 20°. Force: 21500N. | LOBSTER | Model: BP40-17A | Size: 16 in | Max opening: 400mm | H1: 20mm | H2: 39.4mm | ||
| 215-1043 | High strength L-clamp for steel fabrication, shipbuilding, bridge construction. Both jaws tilt 20°. Force: 21500N. | LOBSTER | Model: BP60-17A | Size: 24 in | Max opening: 600mm | H1: 20mm | H2: 39.4mm | ||
| 215-1052 | High strength L-clamp for steel fabrication, shipbuilding, bridge construction. Both jaws tilt 20°. Force: 21500N. | LOBSTER | Model: BP80-17A | Size: 32 in | Max opening: 800mm | H1: 20mm | H2: 39.4mm |
