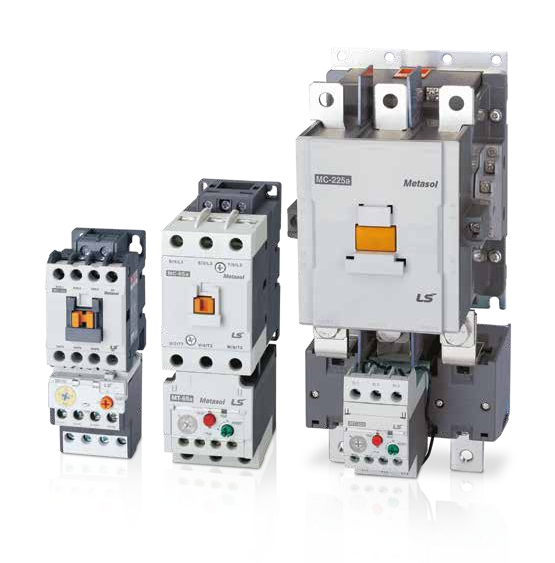

![[LS ELECTRIC] — Metasol MC 40AF Magnetic Contactor (MC-32a~MC-40a)](https://img.prosourcemro.com/2026/04/001-1508.png)
Magnetic Contactors
LS ELECTRIC
[LS ELECTRIC] — Metasol MC 40AF Magnetic Contactor (MC-32a~MC-40a)
Family ID: LSE-MC-40AF
LS ELECTRIC Metasol MC 40AF Magnetic Contactor family. | Application: Motor switching, line contactor, control panel. | Frame: 40AF | Pole: 3P | Type: AC Magnetic Contactor (IEC60947-4-1) | Models: MC-32a, MC-40a | AC-3 current range (440V): 32~40A | AC-1 current up to: 60A | Coil voltage options: AC 24V/110V/220V/380V/440V (60Hz, std options shown) | Frequency: 50/60Hz (60Hz nominal here) | Rated insulation: 690V (18/22AF) / 1000V (40AF+) | Switching frequency: up to 1800 ops/hour (AC-3) | Mechanical life: depends on frame (250~1500 만회) | Mounting: 35mm DIN rail + screw (~150AF) / screw-only (>150AF) | Approval: IEC, UL, RoHS — see RFQ table for specific MPN.
10 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| MC-32a/AC24V/60Hz | Metasol MC-32a 3P contactor, AC 24V 60Hz coil | LS ELECTRIC | Frame: 40AF | Model: MC-32a | Pole: 3P | Coil: AC 24V 60Hz | AC-1 current: 55A | AC-3 (440V): 32A / 15kW | Standard aux contact: 1P (1a or 1b) | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS | ||
| MC-32a/AC110V/60Hz | Metasol MC-32a 3P contactor, AC 110V 60Hz coil | LS ELECTRIC | Frame: 40AF | Model: MC-32a | Pole: 3P | Coil: AC 110V 60Hz | AC-1 current: 55A | AC-3 (440V): 32A / 15kW | Standard aux contact: 1P (1a or 1b) | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS | ||
| MC-32a/AC220V/60Hz | Metasol MC-32a 3P contactor, AC 220V 60Hz coil | LS ELECTRIC | Frame: 40AF | Model: MC-32a | Pole: 3P | Coil: AC 220V 60Hz | AC-1 current: 55A | AC-3 (440V): 32A / 15kW | Standard aux contact: 1P (1a or 1b) | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS | ||
| MC-32a/AC380V/60Hz | Metasol MC-32a 3P contactor, AC 380V 60Hz coil | LS ELECTRIC | Frame: 40AF | Model: MC-32a | Pole: 3P | Coil: AC 380V 60Hz | AC-1 current: 55A | AC-3 (440V): 32A / 15kW | Standard aux contact: 1P (1a or 1b) | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS | ||
| MC-32a/AC440V/60Hz | Metasol MC-32a 3P contactor, AC 440V 60Hz coil | LS ELECTRIC | Frame: 40AF | Model: MC-32a | Pole: 3P | Coil: AC 440V 60Hz | AC-1 current: 55A | AC-3 (440V): 32A / 15kW | Standard aux contact: 1P (1a or 1b) | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS | ||
| MC-40a/AC24V/60Hz | Metasol MC-40a 3P contactor, AC 24V 60Hz coil | LS ELECTRIC | Frame: 40AF | Model: MC-40a | Pole: 3P | Coil: AC 24V 60Hz | AC-1 current: 60A | AC-3 (440V): 40A / 18.5kW | Standard aux contact: 2 (2a) | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS | ||
| MC-40a/AC110V/60Hz | Metasol MC-40a 3P contactor, AC 110V 60Hz coil | LS ELECTRIC | Frame: 40AF | Model: MC-40a | Pole: 3P | Coil: AC 110V 60Hz | AC-1 current: 60A | AC-3 (440V): 40A / 18.5kW | Standard aux contact: 2 (2a) | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS | ||
| MC-40a/AC220V/60Hz | Metasol MC-40a 3P contactor, AC 220V 60Hz coil | LS ELECTRIC | Frame: 40AF | Model: MC-40a | Pole: 3P | Coil: AC 220V 60Hz | AC-1 current: 60A | AC-3 (440V): 40A / 18.5kW | Standard aux contact: 2 (2a) | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS | ||
| MC-40a/AC380V/60Hz | Metasol MC-40a 3P contactor, AC 380V 60Hz coil | LS ELECTRIC | Frame: 40AF | Model: MC-40a | Pole: 3P | Coil: AC 380V 60Hz | AC-1 current: 60A | AC-3 (440V): 40A / 18.5kW | Standard aux contact: 2 (2a) | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS | ||
| MC-40a/AC440V/60Hz | Metasol MC-40a 3P contactor, AC 440V 60Hz coil | LS ELECTRIC | Frame: 40AF | Model: MC-40a | Pole: 3P | Coil: AC 440V 60Hz | AC-1 current: 60A | AC-3 (440V): 40A / 18.5kW | Standard aux contact: 2 (2a) | Terminal: Screw | Frequency: 60Hz (50Hz also available) | Rated insulation (Ui): 1000V | Standard: IEC60947-4-1 | Approval: IEC, UL, RoHS |
