Servo Motors
MITSUBISHI ELECTRIC

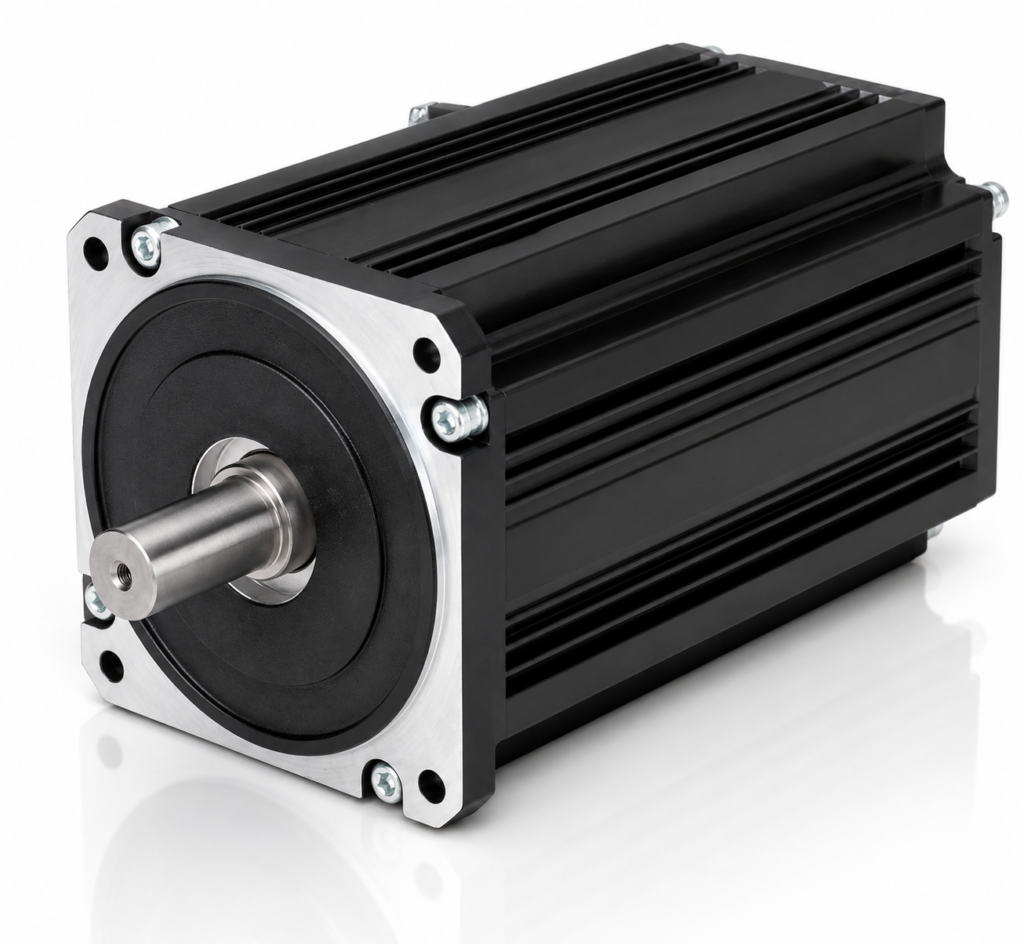

[MITSUBISHI ELECTRIC] — EM-A Series Sensorless Servo / Global PM Motor, 200V Class (0.1-7.5kW, 3000 r/min)
Family ID: MEL-EMA-200V
Mitsubishi EM-A series sensorless servo / global PM motor, 200V class, 0.1-7.5kW, 3000 r/min rated (4000 max), 200% max torque, 200 p/rev positioning. IE5-class efficiency, encoderless position & speed control; UL/cUL, CE/UKCA and China CEL ready for export.
18 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| EM-AMF-0.1K-200V | EM-AMF 200V PM sensorless servo motor, 0.1kW, 0.32Nm, 3000rpm | MITSUBISHI ELECTRIC | Rated Output: 0.1 kW · Rated Torque: 0.32 Nm · Motor Rated Voltage: 130 V · Motor Rated Current: 0.55 A · Frame / Flange: 50Fr / □90 · Poles / Rated Freq: 4-pole / 100 Hz · Brake: None · Moment of Inertia: 1.51 x10^-4 kg.m2 · Output Shaft Load (overhang/thrust): 392 / 196 N · Weight: 2.9 kg · Protection: IP44 (IP65 with -W option) · Compatible Inverter: FR-E820 / FR-E820S / FR-E810W / FR-E720EX · Options: Key (-K), IP65 (-W), Terminal block (-T, <=2.2kW), Global spec (UL/cUL, CE/UKCA, China CEL) | ||
| EM-AMFB-0.1K-200V | EM-AMFB 200V PM sensorless servo motor, 0.1kW, 0.32Nm, 3000rpm, with brake | MITSUBISHI ELECTRIC | Rated Output: 0.1 kW · Rated Torque: 0.32 Nm · Motor Rated Voltage: 130 V · Motor Rated Current: 0.55 A · Frame / Flange: 50Fr / □90 · Poles / Rated Freq: 4-pole / 100 Hz · Brake: DC24V spring-applied holding (150%+ brake torque) · Moment of Inertia: 1.53 x10^-4 kg.m2 · Output Shaft Load (overhang/thrust): 392 / 196 N · Weight: 3.9 kg · Protection: IP44 (IP65 with -W option) · Compatible Inverter: FR-E820 / FR-E820S / FR-E810W / FR-E720EX · Options: Key (-K), IP65 (-W), Terminal block (-T, <=2.2kW), Global spec (UL/cUL, CE/UKCA, China CEL) | ||
| EM-AMF-0.2K-200V | EM-AMF 200V PM sensorless servo motor, 0.2kW, 0.64Nm, 3000rpm | MITSUBISHI ELECTRIC | Rated Output: 0.2 kW · Rated Torque: 0.64 Nm · Motor Rated Voltage: 135 V · Motor Rated Current: 1.1 A · Frame / Flange: 50Fr / □90 · Poles / Rated Freq: 4-pole / 100 Hz · Brake: None · Moment of Inertia: 1.51 x10^-4 kg.m2 · Output Shaft Load (overhang/thrust): 392 / 196 N · Weight: 2.9 kg · Protection: IP44 (IP65 with -W option) · Compatible Inverter: FR-E820 / FR-E820S / FR-E810W / FR-E720EX · Options: Key (-K), IP65 (-W), Terminal block (-T, <=2.2kW), Global spec (UL/cUL, CE/UKCA, China CEL) | ||
| EM-AMFB-0.2K-200V | EM-AMFB 200V PM sensorless servo motor, 0.2kW, 0.64Nm, 3000rpm, with brake | MITSUBISHI ELECTRIC | Rated Output: 0.2 kW · Rated Torque: 0.64 Nm · Motor Rated Voltage: 135 V · Motor Rated Current: 1.1 A · Frame / Flange: 50Fr / □90 · Poles / Rated Freq: 4-pole / 100 Hz · Brake: DC24V spring-applied holding (150%+ brake torque) · Moment of Inertia: 1.53 x10^-4 kg.m2 · Output Shaft Load (overhang/thrust): 392 / 196 N · Weight: 3.9 kg · Protection: IP44 (IP65 with -W option) · Compatible Inverter: FR-E820 / FR-E820S / FR-E810W / FR-E720EX · Options: Key (-K), IP65 (-W), Terminal block (-T, <=2.2kW), Global spec (UL/cUL, CE/UKCA, China CEL) | ||
| EM-AMF-0.4K-200V | EM-AMF 200V PM sensorless servo motor, 0.4kW, 1.27Nm, 3000rpm | MITSUBISHI ELECTRIC | Rated Output: 0.4 kW · Rated Torque: 1.27 Nm · Motor Rated Voltage: 160 V · Motor Rated Current: 1.8 A · Frame / Flange: 63Fr / □110 · Poles / Rated Freq: 4-pole / 100 Hz · Brake: None · Moment of Inertia: 3.72 x10^-4 kg.m2 · Output Shaft Load (overhang/thrust): 490 / 294 N · Weight: 4.9 kg · Protection: IP44 (IP65 with -W option) · Compatible Inverter: FR-E820 / FR-E820S / FR-E810W / FR-E720EX · Options: Key (-K), IP65 (-W), Terminal block (-T, <=2.2kW), Global spec (UL/cUL, CE/UKCA, China CEL) | ||
| EM-AMFB-0.4K-200V | EM-AMFB 200V PM sensorless servo motor, 0.4kW, 1.27Nm, 3000rpm, with brake | MITSUBISHI ELECTRIC | Rated Output: 0.4 kW · Rated Torque: 1.27 Nm · Motor Rated Voltage: 160 V · Motor Rated Current: 1.8 A · Frame / Flange: 63Fr / □110 · Poles / Rated Freq: 4-pole / 100 Hz · Brake: DC24V spring-applied holding (150%+ brake torque) · Moment of Inertia: 4.03 x10^-4 kg.m2 · Output Shaft Load (overhang/thrust): 490 / 294 N · Weight: 6.7 kg · Protection: IP44 (IP65 with -W option) · Compatible Inverter: FR-E820 / FR-E820S / FR-E810W / FR-E720EX · Options: Key (-K), IP65 (-W), Terminal block (-T, <=2.2kW), Global spec (UL/cUL, CE/UKCA, China CEL) | ||
| EM-AMF-0.75K-200V | EM-AMF 200V PM sensorless servo motor, 0.75kW, 2.39Nm, 3000rpm | MITSUBISHI ELECTRIC | Rated Output: 0.75 kW · Rated Torque: 2.39 Nm · Motor Rated Voltage: 165 V · Motor Rated Current: 3.3 A · Frame / Flange: 63Fr / □110 · Poles / Rated Freq: 4-pole / 100 Hz · Brake: None · Moment of Inertia: 5.43 x10^-4 kg.m2 · Output Shaft Load (overhang/thrust): 490 / 294 N · Weight: 6.4 kg · Protection: IP44 (IP65 with -W option) · Compatible Inverter: FR-E820 / FR-E820S / FR-E810W / FR-E720EX · Options: Key (-K), IP65 (-W), Terminal block (-T, <=2.2kW), Global spec (UL/cUL, CE/UKCA, China CEL) | ||
| EM-AMFB-0.75K-200V | EM-AMFB 200V PM sensorless servo motor, 0.75kW, 2.39Nm, 3000rpm, with brake | MITSUBISHI ELECTRIC | Rated Output: 0.75 kW · Rated Torque: 2.39 Nm · Motor Rated Voltage: 165 V · Motor Rated Current: 3.3 A · Frame / Flange: 63Fr / □110 · Poles / Rated Freq: 4-pole / 100 Hz · Brake: DC24V spring-applied holding (150%+ brake torque) · Moment of Inertia: 5.74 x10^-4 kg.m2 · Output Shaft Load (overhang/thrust): 490 / 294 N · Weight: 8.2 kg · Protection: IP44 (IP65 with -W option) · Compatible Inverter: FR-E820 / FR-E820S / FR-E810W / FR-E720EX · Options: Key (-K), IP65 (-W), Terminal block (-T, <=2.2kW), Global spec (UL/cUL, CE/UKCA, China CEL) | ||
| EM-AMF-1.5K-200V | EM-AMF 200V PM sensorless servo motor, 1.5kW, 4.78Nm, 3000rpm | MITSUBISHI ELECTRIC | Rated Output: 1.5 kW · Rated Torque: 4.78 Nm · Motor Rated Voltage: 170 V · Motor Rated Current: 6.1 A · Frame / Flange: 71Fr / □125 · Poles / Rated Freq: 4-pole / 100 Hz · Brake: None · Moment of Inertia: 11.4 x10^-4 kg.m2 · Output Shaft Load (overhang/thrust): 686 / 490 N · Weight: 9.5 kg · Protection: IP44 (IP65 with -W option) · Compatible Inverter: FR-E820 / FR-E820S / FR-E720EX · Options: Key (-K), IP65 (-W), Terminal block (-T, <=2.2kW), Global spec (UL/cUL, CE/UKCA, China CEL) | ||
| EM-AMFB-1.5K-200V | EM-AMFB 200V PM sensorless servo motor, 1.5kW, 4.78Nm, 3000rpm, with brake | MITSUBISHI ELECTRIC | Rated Output: 1.5 kW · Rated Torque: 4.78 Nm · Motor Rated Voltage: 170 V · Motor Rated Current: 6.1 A · Frame / Flange: 71Fr / □125 · Poles / Rated Freq: 4-pole / 100 Hz · Brake: DC24V spring-applied holding (150%+ brake torque) · Moment of Inertia: 12.2 x10^-4 kg.m2 · Output Shaft Load (overhang/thrust): 686 / 490 N · Weight: 12.2 kg · Protection: IP44 (IP65 with -W option) · Compatible Inverter: FR-E820 / FR-E820S / FR-E720EX · Options: Key (-K), IP65 (-W), Terminal block (-T, <=2.2kW), Global spec (UL/cUL, CE/UKCA, China CEL) | ||
| EM-AMF-2.2K-200V | EM-AMF 200V PM sensorless servo motor, 2.2kW, 7.0Nm, 3000rpm | MITSUBISHI ELECTRIC | Rated Output: 2.2 kW · Rated Torque: 7.0 Nm · Motor Rated Voltage: 165 V · Motor Rated Current: 9.3 A · Frame / Flange: 71Fr / □125 · Poles / Rated Freq: 4-pole / 100 Hz · Brake: None · Moment of Inertia: 16.5 x10^-4 kg.m2 · Output Shaft Load (overhang/thrust): 686 / 490 N · Weight: 11.7 kg · Protection: IP44 (IP65 with -W option) · Compatible Inverter: FR-E820 / FR-E820S / FR-E720EX · Options: Key (-K), IP65 (-W), Terminal block (-T, <=2.2kW), Global spec (UL/cUL, CE/UKCA, China CEL) | ||
| EM-AMFB-2.2K-200V | EM-AMFB 200V PM sensorless servo motor, 2.2kW, 7.0Nm, 3000rpm, with brake | MITSUBISHI ELECTRIC | Rated Output: 2.2 kW · Rated Torque: 7.0 Nm · Motor Rated Voltage: 165 V · Motor Rated Current: 9.3 A · Frame / Flange: 71Fr / □125 · Poles / Rated Freq: 4-pole / 100 Hz · Brake: DC24V spring-applied holding (150%+ brake torque) · Moment of Inertia: 17.3 x10^-4 kg.m2 · Output Shaft Load (overhang/thrust): 686 / 490 N · Weight: 14.4 kg · Protection: IP44 (IP65 with -W option) · Compatible Inverter: FR-E820 / FR-E820S / FR-E720EX · Options: Key (-K), IP65 (-W), Terminal block (-T, <=2.2kW), Global spec (UL/cUL, CE/UKCA, China CEL) | ||
| EM-AMF-3.7K-200V | EM-AMF 200V PM sensorless servo motor, 3.7kW, 11.8Nm, 3000rpm | MITSUBISHI ELECTRIC | Rated Output: 3.7 kW · Rated Torque: 11.8 Nm · Motor Rated Voltage: 160 V · Motor Rated Current: 16.5 A · Frame / Flange: 100Fr / □176 · Poles / Rated Freq: 6-pole / 150 Hz · Brake: None · Moment of Inertia: 62.0 x10^-4 kg.m2 · Output Shaft Load (overhang/thrust): 1470 / 980 N · Weight: 22 kg · Protection: IP44 (IP65 with -W option) · Compatible Inverter: FR-E820 / FR-E720EX · Options: Key (-K), IP65 (-W), Terminal block (-T, <=2.2kW), Global spec (UL/cUL, CE/UKCA, China CEL) | ||
| EM-AMFB-3.7K-200V | EM-AMFB 200V PM sensorless servo motor, 3.7kW, 11.8Nm, 3000rpm, with brake | MITSUBISHI ELECTRIC | Rated Output: 3.7 kW · Rated Torque: 11.8 Nm · Motor Rated Voltage: 160 V · Motor Rated Current: 16.5 A · Frame / Flange: 100Fr / □176 · Poles / Rated Freq: 6-pole / 150 Hz · Brake: DC24V spring-applied holding (150%+ brake torque) · Moment of Inertia: 66.5 x10^-4 kg.m2 · Output Shaft Load (overhang/thrust): 1470 / 980 N · Weight: 28 kg · Protection: IP44 (IP65 with -W option) · Compatible Inverter: FR-E820 / FR-E720EX · Options: Key (-K), IP65 (-W), Terminal block (-T, <=2.2kW), Global spec (UL/cUL, CE/UKCA, China CEL) | ||
| EM-AMF-5.5K-200V | EM-AMF 200V PM sensorless servo motor, 5.5kW, 17.5Nm, 3000rpm | MITSUBISHI ELECTRIC | Rated Output: 5.5 kW · Rated Torque: 17.5 Nm · Motor Rated Voltage: 170 V · Motor Rated Current: 22 A · Frame / Flange: 100Fr / □176 · Poles / Rated Freq: 6-pole / 150 Hz · Brake: None · Moment of Inertia: 85.5 x10^-4 kg.m2 · Output Shaft Load (overhang/thrust): 1470 / 980 N · Weight: 28 kg · Protection: IP44 (IP65 with -W option) · Compatible Inverter: FR-E820 · Options: Key (-K), IP65 (-W), Terminal block (-T, <=2.2kW), Global spec (UL/cUL, CE/UKCA, China CEL) | ||
| EM-AMFB-5.5K-200V | EM-AMFB 200V PM sensorless servo motor, 5.5kW, 17.5Nm, 3000rpm, with brake | MITSUBISHI ELECTRIC | Rated Output: 5.5 kW · Rated Torque: 17.5 Nm · Motor Rated Voltage: 170 V · Motor Rated Current: 22 A · Frame / Flange: 100Fr / □176 · Poles / Rated Freq: 6-pole / 150 Hz · Brake: DC24V spring-applied holding (150%+ brake torque) · Moment of Inertia: 90.0 x10^-4 kg.m2 · Output Shaft Load (overhang/thrust): 1470 / 980 N · Weight: 34 kg · Protection: IP44 (IP65 with -W option) · Compatible Inverter: FR-E820 · Options: Key (-K), IP65 (-W), Terminal block (-T, <=2.2kW), Global spec (UL/cUL, CE/UKCA, China CEL) | ||
| EM-AMF-7.5K-200V | EM-AMF 200V PM sensorless servo motor, 7.5kW, 23.9Nm, 3000rpm | MITSUBISHI ELECTRIC | Rated Output: 7.5 kW · Rated Torque: 23.9 Nm · Motor Rated Voltage: 165 V · Motor Rated Current: 31 A · Frame / Flange: 100Fr / □176 · Poles / Rated Freq: 6-pole / 150 Hz · Brake: None · Moment of Inertia: 109 x10^-4 kg.m2 · Output Shaft Load (overhang/thrust): 1470 / 980 N · Weight: 34 kg · Protection: IP44 (IP65 with -W option) · Compatible Inverter: FR-E820 · Options: Key (-K), IP65 (-W), Terminal block (-T, <=2.2kW), Global spec (UL/cUL, CE/UKCA, China CEL) | ||
| EM-AMFB-7.5K-200V | EM-AMFB 200V PM sensorless servo motor, 7.5kW, 23.9Nm, 3000rpm, with brake | MITSUBISHI ELECTRIC | Rated Output: 7.5 kW · Rated Torque: 23.9 Nm · Motor Rated Voltage: 165 V · Motor Rated Current: 31 A · Frame / Flange: 100Fr / □176 · Poles / Rated Freq: 6-pole / 150 Hz · Brake: DC24V spring-applied holding (150%+ brake torque) · Moment of Inertia: 113.5 x10^-4 kg.m2 · Output Shaft Load (overhang/thrust): 1470 / 980 N · Weight: 40 kg · Protection: IP44 (IP65 with -W option) · Compatible Inverter: FR-E820 · Options: Key (-K), IP65 (-W), Terminal block (-T, <=2.2kW), Global spec (UL/cUL, CE/UKCA, China CEL) |
