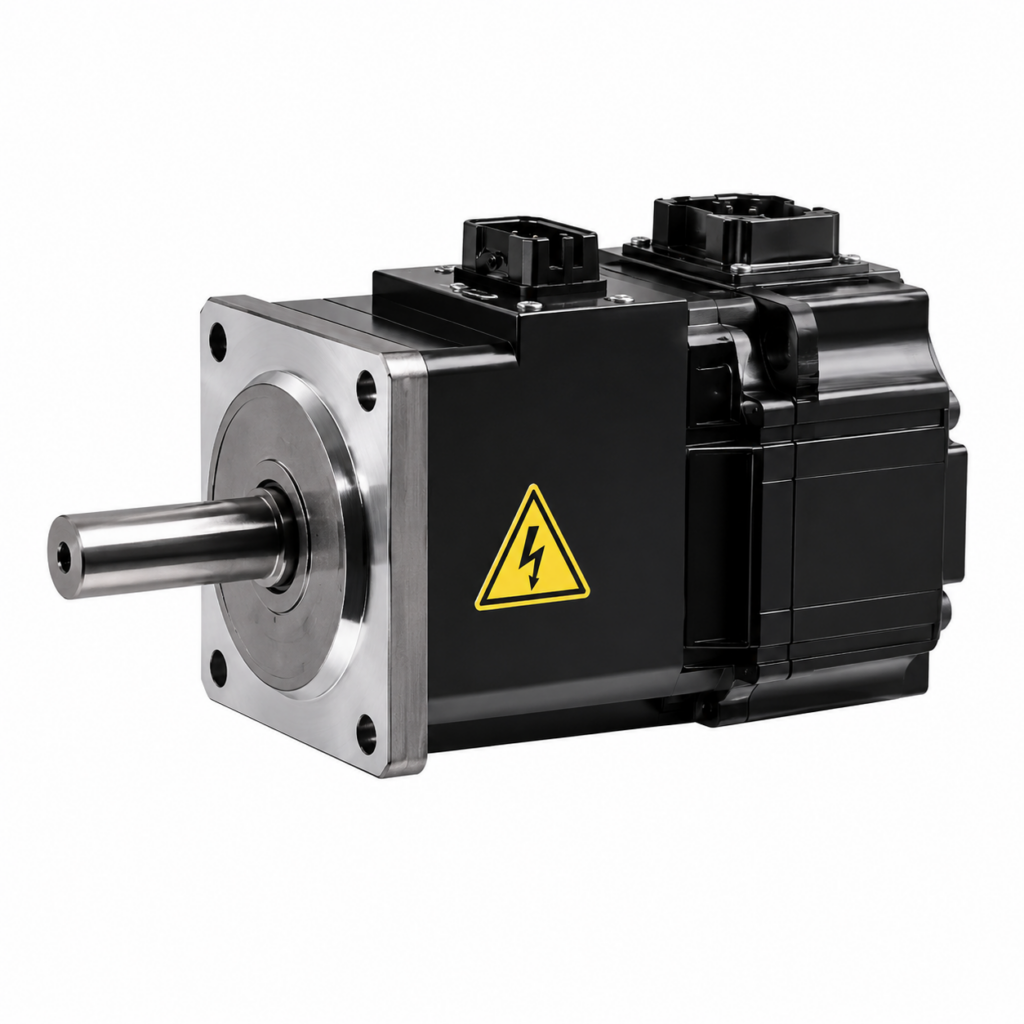

[MITSUBISHI ELECTRIC] — MELSERVO-J4 HG-KR Geared Servo Motor (G1, General Industrial, Flange Type)
Geared Servo Motors MITSUBISHI ELECTRIC

[MITSUBISHI ELECTRIC] — MELSERVO-J4 HG-KR Geared Servo Motor (G1, General Industrial, Flange Type)

Family ID: MEL-HGKR-G1

Mitsubishi Electric MELSERVO-J4 HG-KR series geared servo motors with G1 general-industrial flange-mount gearhead, 50-750 W, 200V class. Reduction ratios 1/5, 1/12 and 1/20 in standard and electromagnetic-brake variants; backlash within 60 arc-min, IP44 gear section. Genuine Mitsubishi Electric low-inertia geared servomotors for compact automation, conveyors, robotics and precision motion control, sourced from Korea.

30 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
HG-KR053G1 1/5 HG-KR053 G1 geared servo motor, ratio 1/5, no brake MITSUBISHI ELECTRIC Series: HG-KR053 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/5 · Actual Ratio: 9/44 · Rated Output: 50 W · Rotor Inertia: 0.0820 x10-4 kg.m2 · Brake: None · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR053BG1 1/5 HG-KR053 G1 geared servo motor, ratio 1/5, brake MITSUBISHI ELECTRIC Series: HG-KR053 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/5 · Actual Ratio: 9/44 · Rated Output: 50 W · Rotor Inertia: 0.0840 x10-4 kg.m2 · Brake: Electromagnetic · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR053G1 1/12 HG-KR053 G1 geared servo motor, ratio 1/12, no brake MITSUBISHI ELECTRIC Series: HG-KR053 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/12 · Actual Ratio: 49/576 · Rated Output: 50 W · Rotor Inertia: 0.104 x10-4 kg.m2 · Brake: None · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR053BG1 1/12 HG-KR053 G1 geared servo motor, ratio 1/12, brake MITSUBISHI ELECTRIC Series: HG-KR053 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/12 · Actual Ratio: 49/576 · Rated Output: 50 W · Rotor Inertia: 0.106 x10-4 kg.m2 · Brake: Electromagnetic · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR053G1 1/20 HG-KR053 G1 geared servo motor, ratio 1/20, no brake MITSUBISHI ELECTRIC Series: HG-KR053 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/20 · Actual Ratio: 25/484 · Rated Output: 50 W · Rotor Inertia: 0.0860 x10-4 kg.m2 · Brake: None · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR053BG1 1/20 HG-KR053 G1 geared servo motor, ratio 1/20, brake MITSUBISHI ELECTRIC Series: HG-KR053 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/20 · Actual Ratio: 25/484 · Rated Output: 50 W · Rotor Inertia: 0.0880 x10-4 kg.m2 · Brake: Electromagnetic · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR13G1 1/5 HG-KR13 G1 geared servo motor, ratio 1/5, no brake MITSUBISHI ELECTRIC Series: HG-KR13 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/5 · Actual Ratio: 9/44 · Rated Output: 100 W · Rotor Inertia: 0.115 x10-4 kg.m2 · Brake: None · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR13BG1 1/5 HG-KR13 G1 geared servo motor, ratio 1/5, brake MITSUBISHI ELECTRIC Series: HG-KR13 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/5 · Actual Ratio: 9/44 · Rated Output: 100 W · Rotor Inertia: 0.121 x10-4 kg.m2 · Brake: Electromagnetic · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR13G1 1/12 HG-KR13 G1 geared servo motor, ratio 1/12, no brake MITSUBISHI ELECTRIC Series: HG-KR13 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/12 · Actual Ratio: 49/576 · Rated Output: 100 W · Rotor Inertia: 0.137 x10-4 kg.m2 · Brake: None · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR13BG1 1/12 HG-KR13 G1 geared servo motor, ratio 1/12, brake MITSUBISHI ELECTRIC Series: HG-KR13 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/12 · Actual Ratio: 49/576 · Rated Output: 100 W · Rotor Inertia: 0.143 x10-4 kg.m2 · Brake: Electromagnetic · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR13G1 1/20 HG-KR13 G1 geared servo motor, ratio 1/20, no brake MITSUBISHI ELECTRIC Series: HG-KR13 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/20 · Actual Ratio: 25/484 · Rated Output: 100 W · Rotor Inertia: 0.119 x10-4 kg.m2 · Brake: None · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR13BG1 1/20 HG-KR13 G1 geared servo motor, ratio 1/20, brake MITSUBISHI ELECTRIC Series: HG-KR13 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/20 · Actual Ratio: 25/484 · Rated Output: 100 W · Rotor Inertia: 0.125 x10-4 kg.m2 · Brake: Electromagnetic · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR23G1 1/5 HG-KR23 G1 geared servo motor, ratio 1/5, no brake MITSUBISHI ELECTRIC Series: HG-KR23 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/5 · Actual Ratio: 19/96 · Rated Output: 200 W · Rotor Inertia: 0.375 x10-4 kg.m2 · Brake: None · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR23BG1 1/5 HG-KR23 G1 geared servo motor, ratio 1/5, brake MITSUBISHI ELECTRIC Series: HG-KR23 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/5 · Actual Ratio: 19/96 · Rated Output: 200 W · Rotor Inertia: 0.397 x10-4 kg.m2 · Brake: Electromagnetic · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR23G1 1/12 HG-KR23 G1 geared servo motor, ratio 1/12, no brake MITSUBISHI ELECTRIC Series: HG-KR23 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/12 · Actual Ratio: 961/11664 · Rated Output: 200 W · Rotor Inertia: 0.418 x10-4 kg.m2 · Brake: None · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR23BG1 1/12 HG-KR23 G1 geared servo motor, ratio 1/12, brake MITSUBISHI ELECTRIC Series: HG-KR23 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/12 · Actual Ratio: 961/11664 · Rated Output: 200 W · Rotor Inertia: 0.440 x10-4 kg.m2 · Brake: Electromagnetic · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR23G1 1/20 HG-KR23 G1 geared servo motor, ratio 1/20, no brake MITSUBISHI ELECTRIC Series: HG-KR23 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/20 · Actual Ratio: 513/9984 · Rated Output: 200 W · Rotor Inertia: 0.391 x10-4 kg.m2 · Brake: None · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR23BG1 1/20 HG-KR23 G1 geared servo motor, ratio 1/20, brake MITSUBISHI ELECTRIC Series: HG-KR23 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/20 · Actual Ratio: 513/9984 · Rated Output: 200 W · Rotor Inertia: 0.413 x10-4 kg.m2 · Brake: Electromagnetic · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR43G1 1/5 HG-KR43 G1 geared servo motor, ratio 1/5, no brake MITSUBISHI ELECTRIC Series: HG-KR43 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/5 · Actual Ratio: 19/96 · Rated Output: 400 W · Rotor Inertia: 0.525 x10-4 kg.m2 · Brake: None · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR43BG1 1/5 HG-KR43 G1 geared servo motor, ratio 1/5, brake MITSUBISHI ELECTRIC Series: HG-KR43 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/5 · Actual Ratio: 19/96 · Rated Output: 400 W · Rotor Inertia: 0.547 x10-4 kg.m2 · Brake: Electromagnetic · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR43G1 1/12 HG-KR43 G1 geared servo motor, ratio 1/12, no brake MITSUBISHI ELECTRIC Series: HG-KR43 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/12 · Actual Ratio: 961/11664 · Rated Output: 400 W · Rotor Inertia: 0.568 x10-4 kg.m2 · Brake: None · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR43BG1 1/12 HG-KR43 G1 geared servo motor, ratio 1/12, brake MITSUBISHI ELECTRIC Series: HG-KR43 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/12 · Actual Ratio: 961/11664 · Rated Output: 400 W · Rotor Inertia: 0.590 x10-4 kg.m2 · Brake: Electromagnetic · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR43G1 1/20 HG-KR43 G1 geared servo motor, ratio 1/20, no brake MITSUBISHI ELECTRIC Series: HG-KR43 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/20 · Actual Ratio: 7/135 · Rated Output: 400 W · Rotor Inertia: 0.881 x10-4 kg.m2 · Brake: None · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR43BG1 1/20 HG-KR43 G1 geared servo motor, ratio 1/20, brake MITSUBISHI ELECTRIC Series: HG-KR43 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/20 · Actual Ratio: 7/135 · Rated Output: 400 W · Rotor Inertia: 0.903 x10-4 kg.m2 · Brake: Electromagnetic · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR73G1 1/5 HG-KR73 G1 geared servo motor, ratio 1/5, no brake MITSUBISHI ELECTRIC Series: HG-KR73 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/5 · Actual Ratio: 1/5 · Rated Output: 750 W · Rotor Inertia: 1.68 x10-4 kg.m2 · Brake: None · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR73BG1 1/5 HG-KR73 G1 geared servo motor, ratio 1/5, brake MITSUBISHI ELECTRIC Series: HG-KR73 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/5 · Actual Ratio: 1/5 · Rated Output: 750 W · Rotor Inertia: 1.79 x10-4 kg.m2 · Brake: Electromagnetic · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR73G1 1/12 HG-KR73 G1 geared servo motor, ratio 1/12, no brake MITSUBISHI ELECTRIC Series: HG-KR73 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/12 · Actual Ratio: 7/87 · Rated Output: 750 W · Rotor Inertia: 2.35 x10-4 kg.m2 · Brake: None · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR73BG1 1/12 HG-KR73 G1 geared servo motor, ratio 1/12, brake MITSUBISHI ELECTRIC Series: HG-KR73 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/12 · Actual Ratio: 7/87 · Rated Output: 750 W · Rotor Inertia: 2.46 x10-4 kg.m2 · Brake: Electromagnetic · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR73G1 1/20 HG-KR73 G1 geared servo motor, ratio 1/20, no brake MITSUBISHI ELECTRIC Series: HG-KR73 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/20 · Actual Ratio: 625/12544 · Rated Output: 750 W · Rotor Inertia: 2.41 x10-4 kg.m2 · Brake: None · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
HG-KR73BG1 1/20 HG-KR73 G1 geared servo motor, ratio 1/20, brake MITSUBISHI ELECTRIC Series: HG-KR73 · Gear Type: G1 (general industrial, flange) · Reduction Ratio: 1/20 · Actual Ratio: 625/12544 · Rated Output: 750 W · Rotor Inertia: 2.52 x10-4 kg.m2 · Brake: Electromagnetic · Backlash: 60 arc-min max · Allowed Speed: 4500 r/min (peak 5175) · Gear Efficiency: 45-75% · Protection: IP44
