![[MUNJU HARDWARE] — 938-3 Sink Hinge](https://img.prosourcemro.com/2026/05/3385189-1-2.jpg)
Hardware
MUNJU HARDWARE

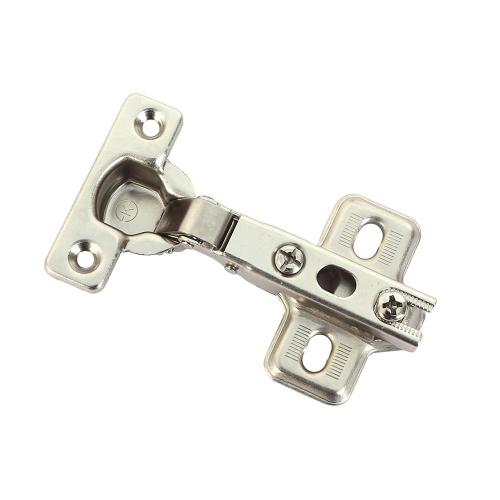

[MUNJU HARDWARE] — 938-3 Sink Hinge
Family ID: 167-1407
MUNJU HARDWARE 938-3 Sink Hinge is a cabinet and panel mounting hinge designed for reliable, concealed or surface-mounted door articulation, sourced direct from Korea. Sink hinges of this type are commonly used in cabinetry, furniture assembly, and light enclosure fabrication where a flush, low-profile pivot point is required. Request a quote today for export-ready supply at competitive pricing through a KITA-registered Korean exporter.
13 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 167-1407 | 938-3 | MUNJU HARDWARE | 90° 18T (938-3) | Depth: 11.5 | Method: - | A: 38 | B: 32 | Installation: Outdoor | Opening Angle: 90 | Cup Hole Specification: 26 | ||
| 167-1416 | 938-5 | MUNJU HARDWARE | 90° 15T (938-5) | Depth: 11.5 | Type: - | A: 38 | B: 32 | Installation: Outdoor | Opening Angle: 90 | Cup Hole Specification: 26 | ||
| 167-1425 | M952-3 | MUNJU HARDWARE | 90 Degree 18T (M952-3) | Depth: 11.5 | Type: - | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 90 | Cup Hole Spec: 35 | ||
| 167-1434 | M952-5 | MUNJU HARDWARE | 90° 15T (M952-5) | Depth: 11.5 | Method: - | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 90 | Cup Drilling Specification: 35 | ||
| 167-1443 | MC90-3 | MUNJU HARDWARE | 90° 18T (MC90-3) | Depth: 11.5 | Type: One-Touch Detachable MP | A: 38 | B: 32 | Installation: Outdoor | Opening Angle: 90 | Cup Hole Drilling Spec: 26 | ||
| 167-1452 | H052M-3 | MUNJU HARDWARE | 105° 18T (H052M-3) | Depth: 11.5 | Type: - | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 105 | Cup Hole Spec: 35 | ||
| 167-1461 | H052M-5 | MUNJU HARDWARE | 105° 15T (H052M-5) | Depth: 11.5 | Type: - | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 105 | Cup Drilling Spec: 35 | ||
| 167-1470 | CC052-3 | MUNJU HARDWARE | 105° 18T (CC052-3) | Depth: 11.5 | Type: Quick Release MP | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 105 | Cup Hole Specification: 35 | ||
| 167-1489 | CC052-5 | MUNJU HARDWARE | 105° 15T (CC052-5) | Depth: 11.5 | Type: One-Touch Detachable MP | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 105 | Cup Bore Spec: 35 | ||
| 167-1498 | CC052N-3 | MUNJU HARDWARE | 105° 18T (CC052N-3) | Depth: 11.5 | Type: One-Touch Detachable MP | A: 52 | B: 32 | Installation: Indoor | Opening Angle: 105 | Cup Hole Spec: 35 | ||
| 167-1513 | M052-3 | MUNJU HARDWARE | 106° 18T (M052-3) | Depth: 11.5 | Type: - | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 106 | Cup Drilling Spec: 35 | ||
| 167-1522 | M052-5 | MUNJU HARDWARE | 106° 15T (M052-5) | Depth: 11.5 | Method: - | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 106° | Cup Hole Specification: 35 | ||
| 167-1531 | 758-34 | MUNJU HARDWARE | 175° 18T (758-34) | Depth: 11.5 | Type: - | A: 48 | B: 32 | Installation: Outdoor | Opening Angle: 175 | Cup Hole Spec: 35 |
