![[NSK] 2200 Series Self-Aligning Ball Bearings (2RS)](https://img.prosourcemro.com/2026/04/nsk-self-aligning-2rs.png)
Self-Aligning
NSK

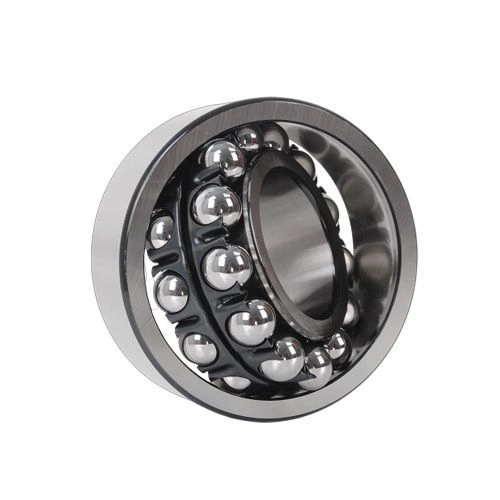

[NSK] 2200 Series Self-Aligning Ball Bearings (2RS)
Family ID: NSK-2200-2RS-SERIES
Double-row self-aligning ball bearings with a spherical outer race that automatically compensates for shaft misalignment and deflection. Ideal for applications with mounting inaccuracies or shaft bending.
11 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| NSK-2200-2RS | 2200 Series Self-Aligning Ball Bearing | NSK | 10x30x14 mm | Sealed (2RS) | Self-Aligning | Double Row | ||
| NSK-2201-2RS | 2200 Series Self-Aligning Ball Bearing | NSK | 12x32x14 mm | Sealed (2RS) | Self-Aligning | Double Row | ||
| NSK-2202-2RS | 2200 Series Self-Aligning Ball Bearing | NSK | 15x35x14 mm | Sealed (2RS) | Self-Aligning | Double Row | ||
| NSK-2203-2RS | 2200 Series Self-Aligning Ball Bearing | NSK | 17x40x16 mm | Sealed (2RS) | Self-Aligning | Double Row | ||
| NSK-2204-2RS | 2200 Series Self-Aligning Ball Bearing | NSK | 20x47x18 mm | Sealed (2RS) | Self-Aligning | Double Row | ||
| NSK-2205-2RS | 2200 Series Self-Aligning Ball Bearing | NSK | 25x52x18 mm | Sealed (2RS) | Self-Aligning | Double Row | ||
| NSK-2206-2RS | 2200 Series Self-Aligning Ball Bearing | NSK | 30x62x20 mm | Sealed (2RS) | Self-Aligning | Double Row | ||
| NSK-2207-2RS | 2200 Series Self-Aligning Ball Bearing | NSK | 35x72x23 mm | Sealed (2RS) | Self-Aligning | Double Row | ||
| NSK-2208-2RS | 2200 Series Self-Aligning Ball Bearing | NSK | 40x80x23 mm | Sealed (2RS) | Self-Aligning | Double Row | ||
| NSK-2209-2RS | 2200 Series Self-Aligning Ball Bearing | NSK | 45x85x23 mm | Sealed (2RS) | Self-Aligning | Double Row | ||
| NSK-2210-2RS | 2200 Series Self-Aligning Ball Bearing | NSK | 50x90x23 mm | Sealed (2RS) | Self-Aligning | Double Row |
Product Details
2200 Series double-row self-aligning ball bearings from NSK. The spherical raceway in the outer ring allows the bearing to tolerate angular misalignment between the shaft and housing, making this series suitable for long shafts, agricultural machinery, fans, and applications where alignment is difficult to maintain.
