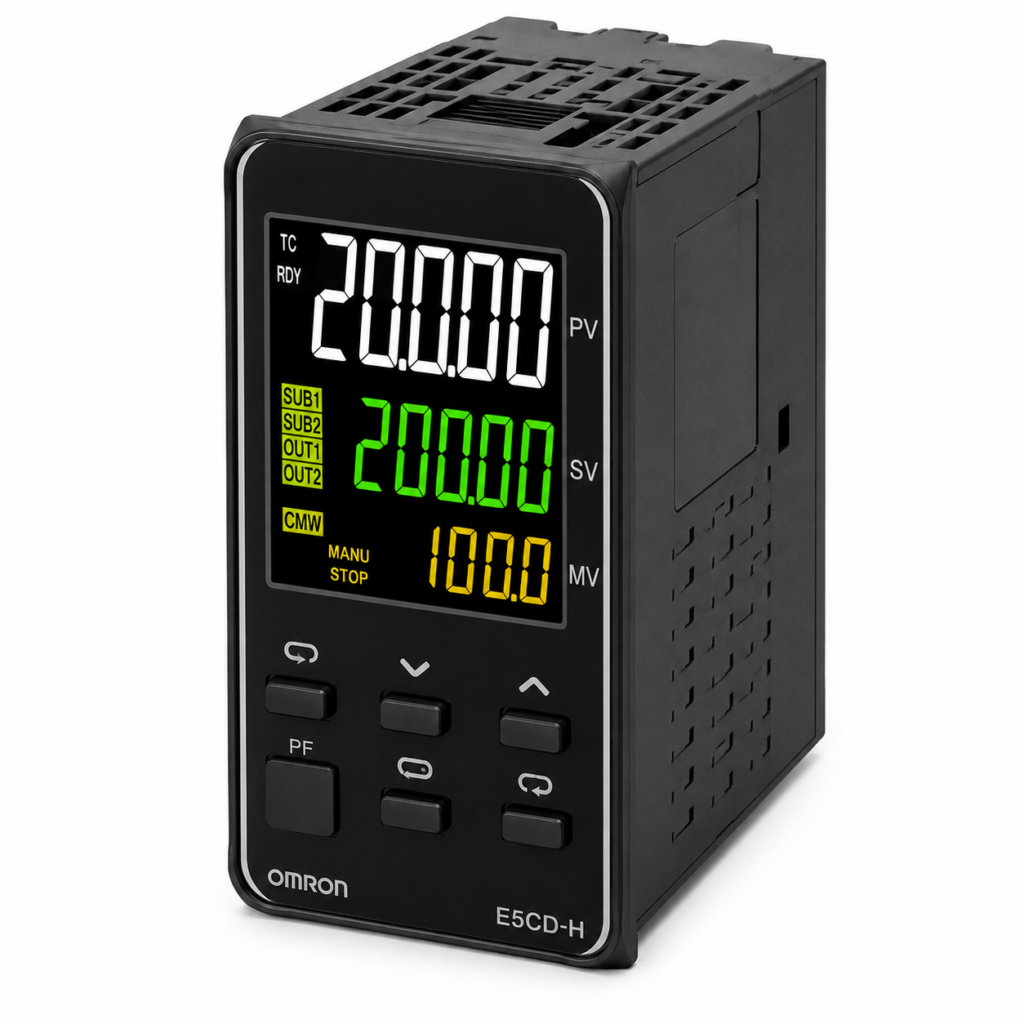

[OMRON] — E5ED-HCQ4DBM Digital Temperature Controller (48×96mm, Current Output, Voltage Pulse, 24VAC/VDC, Push-In Plus)
Temperature Controller Omron

[OMRON] — E5ED-HCQ4DBM Digital Temperature Controller (48×96mm, Current Output, Voltage Pulse, 24VAC/VDC, Push-In Plus)

Family ID: OMRON-E5ED-H-CQ-D

High resolution and high precision input are available. 0.01°C display. Equipped with functions specialized for the digital industry. Push-In Plus terminal blocks reduce wiring work. Control output 1: Current. Control output 2 / Aux: Voltage Pulse. Power supply: 24VAC/VDC. Heating and Cooling Control supported.

1 product code available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
E5ED-HCQ4DBM-025 E5ED-H, Current+Voltage Pulse, 24VAC/VDC, RS-485 communications + Event inputs + Heater burnout detection OMRON Size: 48x96mm | Control Output 1: Current | Control Output 2 / Aux: Voltage Pulse | Power Supply: 24VAC/VDC | Terminal: Push-In Plus | Option: RS-485 communications + Event inputs + Heater burnout detection
