Level Switches
Omron

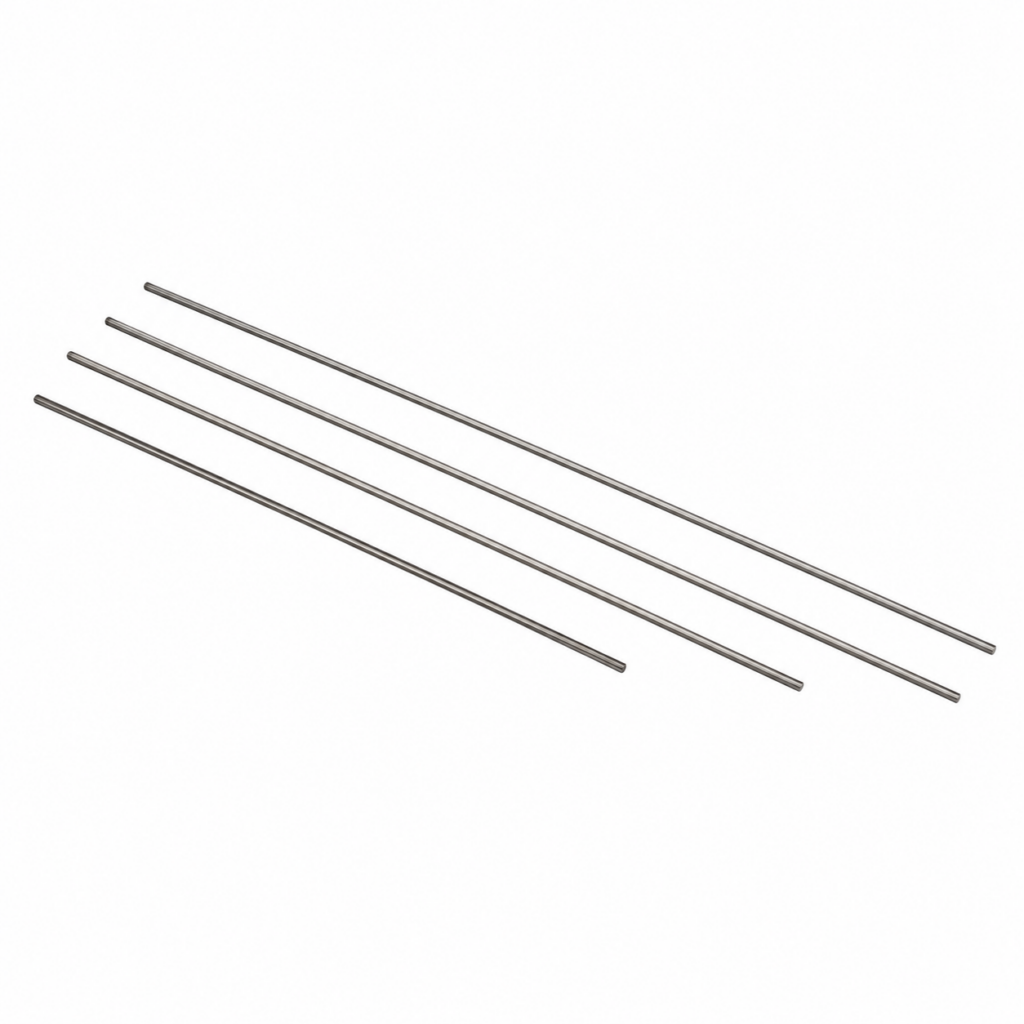

[OMRON] — F03-[] Electrodes and Accessories (for 61F Level Switch, SUS304/316/HAS/Titanium)
Family ID: OMRON-F03-ELECTRODE
A Wide Variety of Electrodes for Long Lasting Reliability
28 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| F03-01 SUS304 ELECTRODE | Electrode SUS304 | OMRON | Type: Electrode | Material: SUS304 | Weight: Approx. 170g | Material Indication: 1 line | Use with: 61F series level switch | ||
| F03-01 SUS316 ELECTRODE | Electrode SUS316 | OMRON | Type: Electrode | Material: SUS316 | Weight: Approx. 170g | Material Indication: 2 lines | Use with: 61F series level switch | ||
| F03-01 HAS B ELECTRODE | Electrode N10665 | OMRON | Type: Electrode | Material: N10665 | Weight: Approx. 195g | Material Indication: 3 lines | Use with: 61F series level switch | ||
| F03-01 HAS C ELECTRODE | Electrode N10276 | OMRON | Type: Electrode | Material: N10276 | Weight: Approx. 190g | Material Indication: 4 lines | Use with: 61F series level switch | ||
| F03-01 TITANIUM ELECTRODE | Electrode Titanium | OMRON | Type: Electrode | Material: Titanium | Weight: Approx. 100g | Material Indication: 5 lines | Use with: 61F series level switch | ||
| F03-01 SUS304 BINIL | Insulated Electrode SUS304 Vinyl | OMRON | Type: Insulated Electrode | Material: SUS304 | Sheath: Vinyl tubing (1m, 0.5mm thick) | Note: Strip ~10cm of sheath at tip before use | ||
| F03-01 SUS304 FLUORORESIN | Insulated Electrode SUS304 Fluor | OMRON | Type: Insulated Electrode | Material: SUS304 | Sheath: Fluororesin tubing (1m, 0.5mm thick) | Note: Strip ~10cm of sheath at tip before use | ||
| F03-01 SUS316 BINIL | Insulated Electrode SUS316 Vinyl | OMRON | Type: Insulated Electrode | Material: SUS316 | Sheath: Vinyl tubing (1m, 0.5mm thick) | Note: Strip ~10cm of sheath at tip before use | ||
| F03-01 SUS316 FLUORORESIN | Insulated Electrode SUS316 Fluor | OMRON | Type: Insulated Electrode | Material: SUS316 | Sheath: Fluororesin tubing (1m, 0.5mm thick) | Note: Strip ~10cm of sheath at tip before use | ||
| F03-02 SUS304 | Connecting Nut SUS303 (equiv. SUS304) | OMRON | Type: Connecting Nut | Material: SUS303 (equiv. SUS304) | Weight: Approx. 12g | Material Indication: Blank (spring washer included) | ||
| F03-02 SUS316 | Connecting Nut SUS316 | OMRON | Type: Connecting Nut | Material: SUS316 | Weight: Approx. 12g | Material Indication: — (spring washer included) | ||
| F03-02 HAS B | Connecting Nut N10665 | OMRON | Type: Connecting Nut | Material: N10665 | Weight: Approx. 20g | Material Indication: B | ||
| F03-02 HAS C | Connecting Nut N10276 | OMRON | Type: Connecting Nut | Material: N10276 | Weight: Approx. 20g | Material Indication: C | ||
| F03-02 TITANIUM | Connecting Nut Titanium | OMRON | Type: Connecting Nut | Material: Titanium | Weight: Approx. 6g | Material Indication: T | ||
| F03-60 SUS304 | Electrode Set F03-60 SUS304 | OMRON | Type: Electrode Set | Contents: F03-01 SUS304 ELECTRODE × 1 + F03-02 SUS304 × 1 + F03-03 SUS304 × 2 | Note: HAS and Titanium electrodes not available as sets | ||
| F03-60 SUS316 | Electrode Set F03-60 SUS316 | OMRON | Type: Electrode Set | Contents: F03-01 SUS316 ELECTRODE × 1 + F03-02 SUS316 × 1 + F03-03 SUS316 × 2 | Note: HAS and Titanium electrodes not available as sets | ||
| F03-03 SUS304 | Lock Nut SUS303 (equiv. SUS304) | OMRON | Type: Lock Nut | Material: SUS303 (equiv. SUS304) | Weight: Approx. 2g | Material Indication: 304 (spring washer included) | ||
| F03-03 SUS316 | Lock Nut SUS316 | OMRON | Type: Lock Nut | Material: SUS316 | Weight: Approx. 2g | Material Indication: 316 (spring washer included) | ||
| F03-03 HAS B | Lock Nut N10665 | OMRON | Type: Lock Nut | Material: N10665 | Weight: Approx. 5g | Material Indication: B | ||
| F03-03 HAS C | Lock Nut N10276 | OMRON | Type: Lock Nut | Material: N10276 | Weight: Approx. 5g | Material Indication: C | ||
| F03-03 TITANIUM | Lock Nut Titanium | OMRON | Type: Lock Nut | Material: Titanium | Weight: Approx. 2g | Material Indication: T | ||
| F03-14 1P | Electrode Separator 1-pole | OMRON | Type: Electrode Separator | Poles: 1-pole | Material: Ceramic | Max Temperature: 250°C max. | Applicable Holder: BF-[](R) | Note: Use at each joint (every 1m); cannot be used with PS-31 | ||
| F03-14 3P | Electrode Separator 3-pole | OMRON | Type: Electrode Separator | Poles: 3-pole | Material: Ceramic | Max Temperature: 250°C max. | Applicable Holder: PS-3S(R) | Note: Use at each joint (every 1m); cannot be used with PS-31 | ||
| F03-14 5P | Electrode Separator 5-pole | OMRON | Type: Electrode Separator | Poles: 5-pole | Material: Ceramic | Max Temperature: 250°C max. | Applicable Holder: PS-4S(R) / PS-5S(R) | Note: Use at each joint (every 1m); cannot be used with PS-31 | ||
| F03-11 | Accessory F03-11 | OMRON | Type: Electrode Holder Accessory | Application: Protective Cover for PS-[]S and BF-3/-5 | ||
| F03-12 | Accessory F03-12 | OMRON | Type: Electrode Holder Accessory | Application: Mounting Frame for PS-[]S | ||
| F03-13 | Accessory F03-13 | OMRON | Type: Electrode Holder Accessory | Application: Mounting Frame for Installing in Concrete for PS-[]S(R) | ||
| F03-31 | Accessory F03-31 | OMRON | Type: Electrode Holder Accessory | Application: Dust-proof Rubber Cap for PS-31 |
