![[OMRON] — K3GN 1/32 DIN Digital Panel Meter (DC Voltage/Current/NPN/PNP Input, Relay/Transistor Output, 24VDC)](https://img.prosourcemro.com/2026/05/001-654-1024x1024.png)
Display Unit
Omron

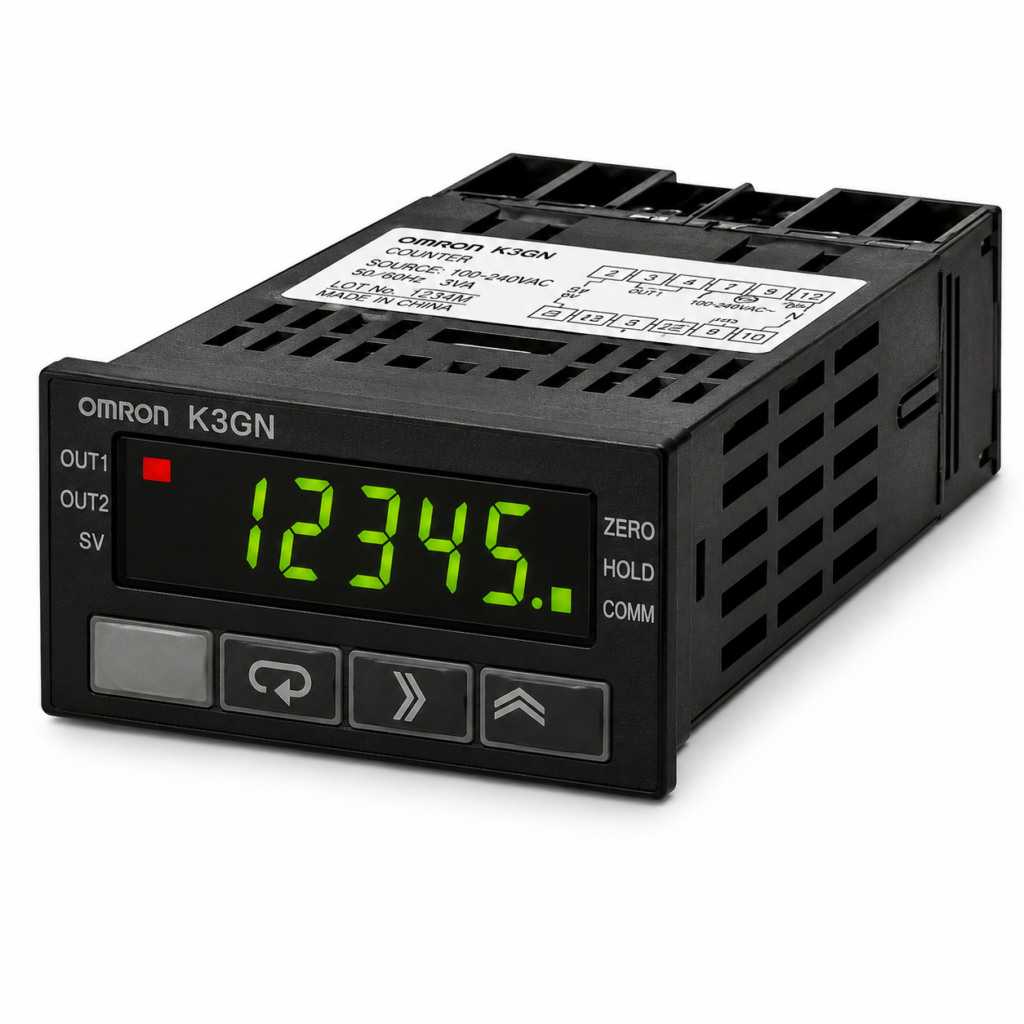

[OMRON] — K3GN 1/32 DIN Digital Panel Meter (DC Voltage/Current/NPN/PNP Input, Relay/Transistor Output, 24VDC)
Family ID: OMRON-K3GN
1/32 DIN Digital Panel Meter for Downsizing Equipment and Control Panels. 24VDC supply. DC voltage, DC current, NPN, or PNP input. 2 relay contact (SPST-NO), 3 NPN transistor, or 3 PNP transistor output variants. Optional RS-485 and linear current/voltage data transmission outputs.
16 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| K3GN-NDC 24 VDC | NPN/DC, 2 relay SPST-NO, No data output, 24VDC | OMRON | Input: DC Voltage/Current/NPN | Output: 2 relay SPST-NO | Data Output: None | Supply: 24VDC | ||
| K3GN-NDC-FLK 24 VDC | NPN/DC, 2 relay SPST-NO, RS-485, 24VDC | OMRON | Input: DC Voltage/Current/NPN | Output: 2 relay SPST-NO | Data Output: RS-485 | Supply: 24VDC | ||
| K3GN-NDC-L1 24 VDC | NPN/DC, 2 relay SPST-NO, Linear current (0~20/4~20mA), 24VDC | OMRON | Input: DC Voltage/Current/NPN | Output: 2 relay SPST-NO | Data Output: Linear current 0~20mA or 4~20mA | Supply: 24VDC | ||
| K3GN-NDC-L2 24 VDC | NPN/DC, 2 relay SPST-NO, Linear voltage (0~5/1~5/0~10V), 24VDC | OMRON | Input: DC Voltage/Current/NPN | Output: 2 relay SPST-NO | Data Output: Linear voltage 0~5V / 1~5V / 0~10V | Supply: 24VDC | ||
| K3GN-NDC-400 24 VDC | NPN/DC, 2 relay SPST-NO (normally energized), No data output, 24VDC | OMRON | Input: DC Voltage/Current/NPN | Output: 2 relay SPST-NO (normally energized) | Data Output: None | Supply: 24VDC | ||
| K3GN-NDC-FLK-400 24 VDC | NPN/DC, 2 relay SPST-NO (normally energized), RS-485, 24VDC | OMRON | Input: DC Voltage/Current/NPN | Output: 2 relay SPST-NO (normally energized) | Data Output: RS-485 | Supply: 24VDC | ||
| K3GN-NDC-L1-400 24 VDC | NPN/DC, 2 relay SPST-NO (normally energized), Linear current, 24VDC | OMRON | Input: DC Voltage/Current/NPN | Output: 2 relay SPST-NO (normally energized) | Data Output: Linear current 0~20mA or 4~20mA | Supply: 24VDC | ||
| K3GN-NDC-L2-400 24 VDC | NPN/DC, 2 relay SPST-NO (normally energized), Linear voltage, 24VDC | OMRON | Input: DC Voltage/Current/NPN | Output: 2 relay SPST-NO (normally energized) | Data Output: Linear voltage 0~5V / 1~5V / 0~10V | Supply: 24VDC | ||
| K3GN-NDT1 24 VDC | NPN/DC, 3 transistor NPN open collector, No data output, 24VDC | OMRON | Input: DC Voltage/Current/NPN | Output: 3 transistor NPN open collector | Data Output: None | Supply: 24VDC | ||
| K3GN-NDT1-FLK 24 VDC | NPN/DC, 3 transistor NPN open collector, RS-485, 24VDC | OMRON | Input: DC Voltage/Current/NPN | Output: 3 transistor NPN open collector | Data Output: RS-485 | Supply: 24VDC | ||
| K3GN-NDT1-L1 24 VDC | NPN/DC, 3 transistor NPN open collector, Linear current, 24VDC | OMRON | Input: DC Voltage/Current/NPN | Output: 3 transistor NPN open collector | Data Output: Linear current 0~20mA or 4~20mA | Supply: 24VDC | ||
| K3GN-NDT1-L2 24 VDC | NPN/DC, 3 transistor NPN open collector, Linear voltage, 24VDC | OMRON | Input: DC Voltage/Current/NPN | Output: 3 transistor NPN open collector | Data Output: Linear voltage 0~5V / 1~5V / 0~10V | Supply: 24VDC | ||
| K3GN-PDC 24 VDC | PNP/DC, 2 relay SPST-NO, No data output, 24VDC | OMRON | Input: DC Voltage/Current/PNP | Output: 2 relay SPST-NO | Data Output: None | Supply: 24VDC | ||
| K3GN-PDC-FLK 24 VDC | PNP/DC, 2 relay SPST-NO, RS-485, 24VDC | OMRON | Input: DC Voltage/Current/PNP | Output: 2 relay SPST-NO | Data Output: RS-485 | Supply: 24VDC | ||
| K3GN-PDT2 24 VDC | PNP/DC, 3 transistor PNP open collector, No data output, 24VDC | OMRON | Input: DC Voltage/Current/PNP | Output: 3 transistor PNP open collector | Data Output: None | Supply: 24VDC | ||
| K3GN-PDT2-FLK 24 VDC | PNP/DC, 3 transistor PNP open collector, RS-485, 24VDC | OMRON | Input: DC Voltage/Current/PNP | Output: 3 transistor PNP open collector | Data Output: RS-485 | Supply: 24VDC |
