Safety Laser Scanners
Omron

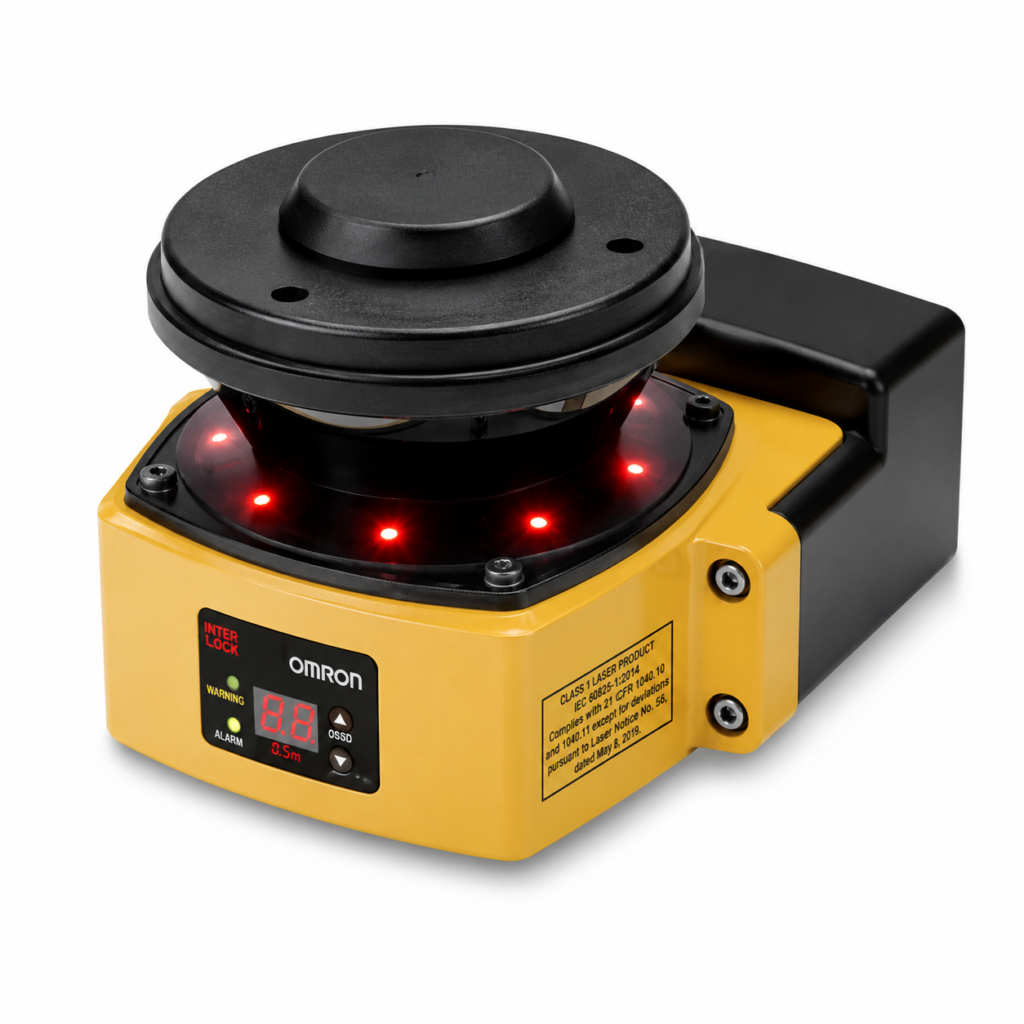

[OMRON] — OS32C Safety Laser Scanner (Compact 104.5mm, 1.3kg, 3m/4m, EtherNet/IP, Back+Side Entry)
Family ID: OMRON-OS32C
Compact (104.5 mm), lightweight (1.3 kg) and easy-to-install Safety Laser Scanner
28 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| OS32C-BP VER2 | OS32C Back entry, Standard 3m | OMRON | Type: OS32C Safety Laser Scanner | Max Safety Zone: 3m | Cable Entry: Back | EtherNet/IP: No | Note: Power cable sold separately. CD-ROM configuration tool included. | ||
| OS32C-BP-4M | OS32C Back entry, Standard 4m | OMRON | Type: OS32C Safety Laser Scanner | Max Safety Zone: 4m | Cable Entry: Back | EtherNet/IP: No | Note: Power cable sold separately. CD-ROM configuration tool included. | ||
| OS32C-SP1 VER2 | OS32C Side entry, Standard 3m | OMRON | Type: OS32C Safety Laser Scanner | Max Safety Zone: 3m | Cable Entry: Side (left from back) | EtherNet/IP: No | Note: Power cable sold separately. CD-ROM configuration tool included. | ||
| OS32C-SP1-4M | OS32C Side entry, Standard 4m | OMRON | Type: OS32C Safety Laser Scanner | Max Safety Zone: 4m | Cable Entry: Side (left from back) | EtherNet/IP: No | Note: Power cable sold separately. CD-ROM configuration tool included. | ||
| OS32C-BP-DM | OS32C Back entry, EtherNet/IP 3m | OMRON | Type: OS32C Safety Laser Scanner | Max Safety Zone: 3m | Cable Entry: Back | EtherNet/IP: Yes | Note: Power cable sold separately. CD-ROM configuration tool included. | ||
| OS32C-BP-DM-4M | OS32C Back entry, EtherNet/IP 4m | OMRON | Type: OS32C Safety Laser Scanner | Max Safety Zone: 4m | Cable Entry: Back | EtherNet/IP: Yes | Note: Power cable sold separately. CD-ROM configuration tool included. | ||
| OS32C-SP1-DM | OS32C Side entry, EtherNet/IP 3m | OMRON | Type: OS32C Safety Laser Scanner | Max Safety Zone: 3m | Cable Entry: Side (left from back) | EtherNet/IP: Yes | Note: Power cable sold separately. CD-ROM configuration tool included. | ||
| OS32C-SP1-DM-4M | OS32C Side entry, EtherNet/IP 4m | OMRON | Type: OS32C Safety Laser Scanner | Max Safety Zone: 4m | Cable Entry: Side (left from back) | EtherNet/IP: Yes | Note: Power cable sold separately. CD-ROM configuration tool included. | ||
| OS32C-CBL-03M | OS32C Power Cable 3m | OMRON | Type: OS32C Power Cable | Length: 3m | Note: One cable required per sensor | ||
| OS32C-CBL-10M | OS32C Power Cable 10m | OMRON | Type: OS32C Power Cable | Length: 10m | Note: One cable required per sensor | ||
| OS32C-CBL-20M | OS32C Power Cable 20m | OMRON | Type: OS32C Power Cable | Length: 20m | Note: One cable required per sensor | ||
| OS32C-CBL-30M | OS32C Power Cable 30m | OMRON | Type: OS32C Power Cable | Length: 30m | Note: One cable required per sensor | ||
| OS32C-ECBL-02M | OS32C Ethernet Cable M12-4pin 2m | OMRON | Type: OS32C Ethernet Cable | Connector: M12 4-pin | Length: 2m | Note: Required for configuration and monitoring | ||
| OS32C-ECBL-05M | OS32C Ethernet Cable M12-4pin 5m | OMRON | Type: OS32C Ethernet Cable | Connector: M12 4-pin | Length: 5m | Note: Required for configuration and monitoring | ||
| OS32C-ECBL-15M | OS32C Ethernet Cable M12-4pin 15m | OMRON | Type: OS32C Ethernet Cable | Connector: M12 4-pin | Length: 15m | Note: Required for configuration and monitoring | ||
| OS32C-BKT1 | OS32C Bottom/Side Mounting Bracket (1 bracket + 4 screws) | OMRON | Type: OS32C Accessory | Description: Bottom/Side Mounting Bracket (1 bracket + 4 screws) | ||
| OS32C-BKT2 | OS32C XY Axis Rotation Mounting Bracket (must use with BKT1) | OMRON | Type: OS32C Accessory | Description: XY Axis Rotation Mounting Bracket (must use with BKT1) | ||
| OS32C-BKT3 | OS32C Simple Mounting Bracket (2 brackets + 4 screws) | OMRON | Type: OS32C Accessory | Description: Simple Mounting Bracket (2 brackets + 4 screws) | ||
| OS32C-BKT4 | OS32C Protective Cover for Window | OMRON | Type: OS32C Accessory | Description: Protective Cover for Window | ||
| OS32C-MT | OS32C Mounting Stand (side entry models only) | OMRON | Type: OS32C Accessory | Description: Mounting Stand (side entry models only) | ||
| OS32C-HDT | OS32C Hardware Kit for Mounting Stand (3 screw sets) | OMRON | Type: OS32C Accessory | Description: Hardware Kit for Mounting Stand (3 screw sets) | ||
| OS32C-WIN-KT | OS32C Scan Window (spare replacement) | OMRON | Type: OS32C Accessory | Description: Scan Window (spare replacement) | ||
| OS32C-SN VER2 | OS32C Sensor Block w/o I/O Block 3m (spare) | OMRON | Type: OS32C Accessory | Description: Sensor Block w/o I/O Block 3m (spare) | ||
| OS32C-SN-4M | OS32C Sensor Block w/o I/O Block 4m (spare) | OMRON | Type: OS32C Accessory | Description: Sensor Block w/o I/O Block 4m (spare) | ||
| OS32C-SN-DM | OS32C Sensor Block w/o I/O Block EtherNet/IP 3m (spare) | OMRON | Type: OS32C Accessory | Description: Sensor Block w/o I/O Block EtherNet/IP 3m (spare) | ||
| OS32C-SN-DM-4M | OS32C Sensor Block w/o I/O Block EtherNet/IP 4m (spare) | OMRON | Type: OS32C Accessory | Description: Sensor Block w/o I/O Block EtherNet/IP 4m (spare) | ||
| OS32C-CBBP | OS32C I/O Block Back Cable Entry (spare) | OMRON | Type: OS32C Accessory | Description: I/O Block Back Cable Entry (spare) | ||
| OS32C-CBSP1 | OS32C I/O Block Side Cable Entry Left (spare) | OMRON | Type: OS32C Accessory | Description: I/O Block Side Cable Entry Left (spare) |
