![[OMRON] — R88M-K G5 Servomotor, 1000 r/min, 200/400 VAC, H/F Incremental Encoder](https://img.prosourcemro.com/2026/05/001-686-1024x1024.png)
Servomotors
Omron

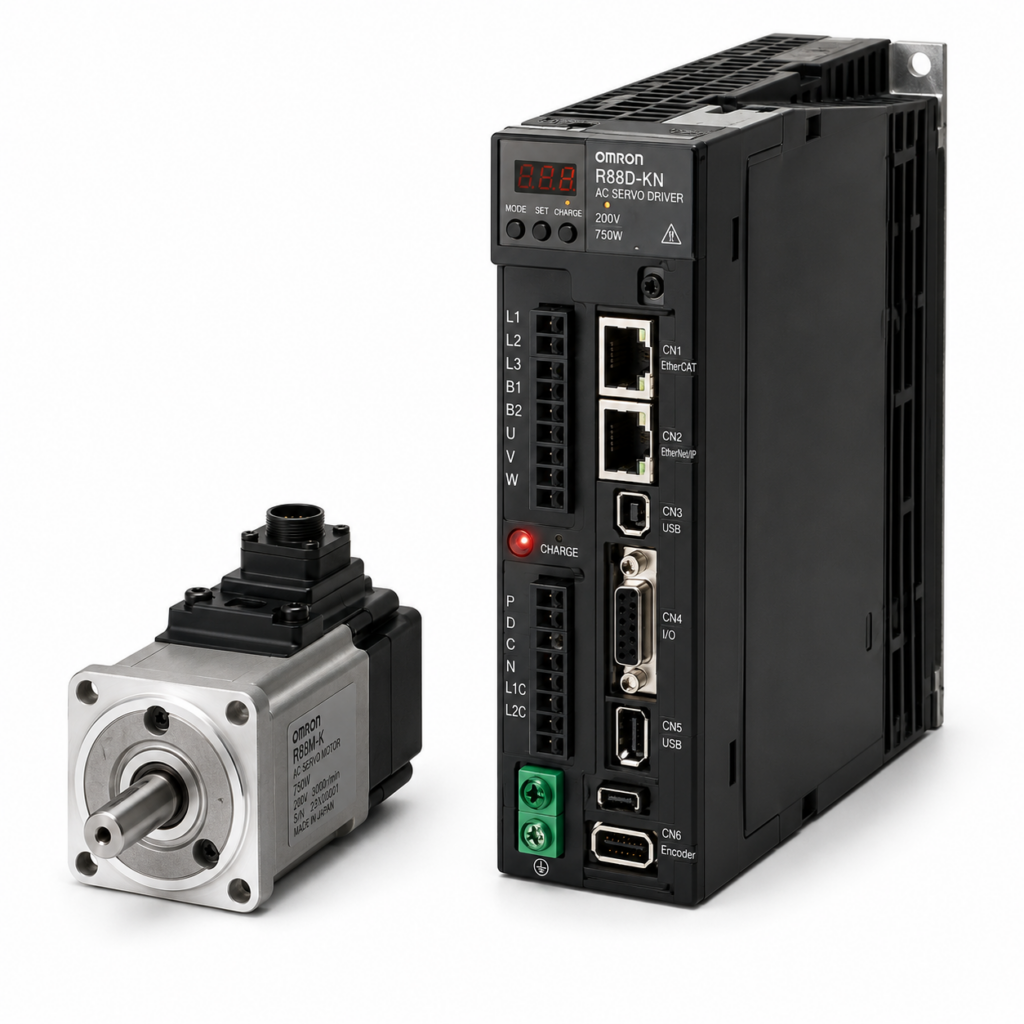

[OMRON] — R88M-K G5 Servomotor, 1000 r/min, 200/400 VAC, H/F Incremental Encoder
Family ID: OMRON-R88MK-1000-HF
G5 Series AC Servomotor with incremental encoder. Compatible with R88D-KN[]-ECT Servo Drives.
24 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| R88M-K90010H | R88M-K 1000rpm 200/400 VAC 900W Straight shaft without key Without brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 900W | Encoder: H/F Incremental | Brake: Without brake | Series: G5 | Shaft: Straight shaft without key | ||
| R88M-K90010H-S2 | R88M-K 1000rpm 200/400 VAC 900W Straight shaft with key and tap Without brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 900W | Encoder: H/F Incremental | Brake: Without brake | Series: G5 | Shaft: Straight shaft with key and tap | ||
| R88M-K2K010H | R88M-K 1000rpm 200/400 VAC 2kW Straight shaft without key Without brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 2kW | Encoder: H/F Incremental | Brake: Without brake | Series: G5 | Shaft: Straight shaft without key | ||
| R88M-K2K010H-S2 | R88M-K 1000rpm 200/400 VAC 2kW Straight shaft with key and tap Without brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 2kW | Encoder: H/F Incremental | Brake: Without brake | Series: G5 | Shaft: Straight shaft with key and tap | ||
| R88M-K3K010H | R88M-K 1000rpm 200/400 VAC 3kW Straight shaft without key Without brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 3kW | Encoder: H/F Incremental | Brake: Without brake | Series: G5 | Shaft: Straight shaft without key | ||
| R88M-K3K010H-S2 | R88M-K 1000rpm 200/400 VAC 3kW Straight shaft with key and tap Without brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 3kW | Encoder: H/F Incremental | Brake: Without brake | Series: G5 | Shaft: Straight shaft with key and tap | ||
| R88M-K90010F | R88M-K 1000rpm 200/400 VAC 900W Straight shaft without key Without brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 900W | Encoder: H/F Incremental | Brake: Without brake | Series: G5 | Shaft: Straight shaft without key | ||
| R88M-K90010F-S2 | R88M-K 1000rpm 200/400 VAC 900W Straight shaft with key and tap Without brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 900W | Encoder: H/F Incremental | Brake: Without brake | Series: G5 | Shaft: Straight shaft with key and tap | ||
| R88M-K2K010F | R88M-K 1000rpm 200/400 VAC 2kW Straight shaft without key Without brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 2kW | Encoder: H/F Incremental | Brake: Without brake | Series: G5 | Shaft: Straight shaft without key | ||
| R88M-K2K010F-S2 | R88M-K 1000rpm 200/400 VAC 2kW Straight shaft with key and tap Without brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 2kW | Encoder: H/F Incremental | Brake: Without brake | Series: G5 | Shaft: Straight shaft with key and tap | ||
| R88M-K3K010F | R88M-K 1000rpm 200/400 VAC 3kW Straight shaft without key Without brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 3kW | Encoder: H/F Incremental | Brake: Without brake | Series: G5 | Shaft: Straight shaft without key | ||
| R88M-K3K010F-S2 | R88M-K 1000rpm 200/400 VAC 3kW Straight shaft with key and tap Without brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 3kW | Encoder: H/F Incremental | Brake: Without brake | Series: G5 | Shaft: Straight shaft with key and tap | ||
| R88M-K90010H-B | R88M-K 1000rpm 200/400 VAC 900W Straight shaft without key With brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 900W | Encoder: H/F Incremental | Brake: With brake | Series: G5 | Shaft: Straight shaft without key | ||
| R88M-K90010H-BS2 | R88M-K 1000rpm 200/400 VAC 900W Straight shaft with key and tap With brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 900W | Encoder: H/F Incremental | Brake: With brake | Series: G5 | Shaft: Straight shaft with key and tap | ||
| R88M-K2K010H-B | R88M-K 1000rpm 200/400 VAC 2kW Straight shaft without key With brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 2kW | Encoder: H/F Incremental | Brake: With brake | Series: G5 | Shaft: Straight shaft without key | ||
| R88M-K2K010H-BS2 | R88M-K 1000rpm 200/400 VAC 2kW Straight shaft with key and tap With brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 2kW | Encoder: H/F Incremental | Brake: With brake | Series: G5 | Shaft: Straight shaft with key and tap | ||
| R88M-K3K010H-B | R88M-K 1000rpm 200/400 VAC 3kW Straight shaft without key With brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 3kW | Encoder: H/F Incremental | Brake: With brake | Series: G5 | Shaft: Straight shaft without key | ||
| R88M-K3K010H-BS2 | R88M-K 1000rpm 200/400 VAC 3kW Straight shaft with key and tap With brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 3kW | Encoder: H/F Incremental | Brake: With brake | Series: G5 | Shaft: Straight shaft with key and tap | ||
| R88M-K90010F-B | R88M-K 1000rpm 200/400 VAC 900W Straight shaft without key With brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 900W | Encoder: H/F Incremental | Brake: With brake | Series: G5 | Shaft: Straight shaft without key | ||
| R88M-K90010F-BS2 | R88M-K 1000rpm 200/400 VAC 900W Straight shaft with key and tap With brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 900W | Encoder: H/F Incremental | Brake: With brake | Series: G5 | Shaft: Straight shaft with key and tap | ||
| R88M-K2K010F-B | R88M-K 1000rpm 200/400 VAC 2kW Straight shaft without key With brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 2kW | Encoder: H/F Incremental | Brake: With brake | Series: G5 | Shaft: Straight shaft without key | ||
| R88M-K2K010F-BS2 | R88M-K 1000rpm 200/400 VAC 2kW Straight shaft with key and tap With brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 2kW | Encoder: H/F Incremental | Brake: With brake | Series: G5 | Shaft: Straight shaft with key and tap | ||
| R88M-K3K010F-B | R88M-K 1000rpm 200/400 VAC 3kW Straight shaft without key With brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 3kW | Encoder: H/F Incremental | Brake: With brake | Series: G5 | Shaft: Straight shaft without key | ||
| R88M-K3K010F-BS2 | R88M-K 1000rpm 200/400 VAC 3kW Straight shaft with key and tap With brake | OMRON | Rated Speed: 1000 r/min | Power Supply: 200/400 VAC | Rated Output: 3kW | Encoder: H/F Incremental | Brake: With brake | Series: G5 | Shaft: Straight shaft with key and tap |
