Axial Fans Omron

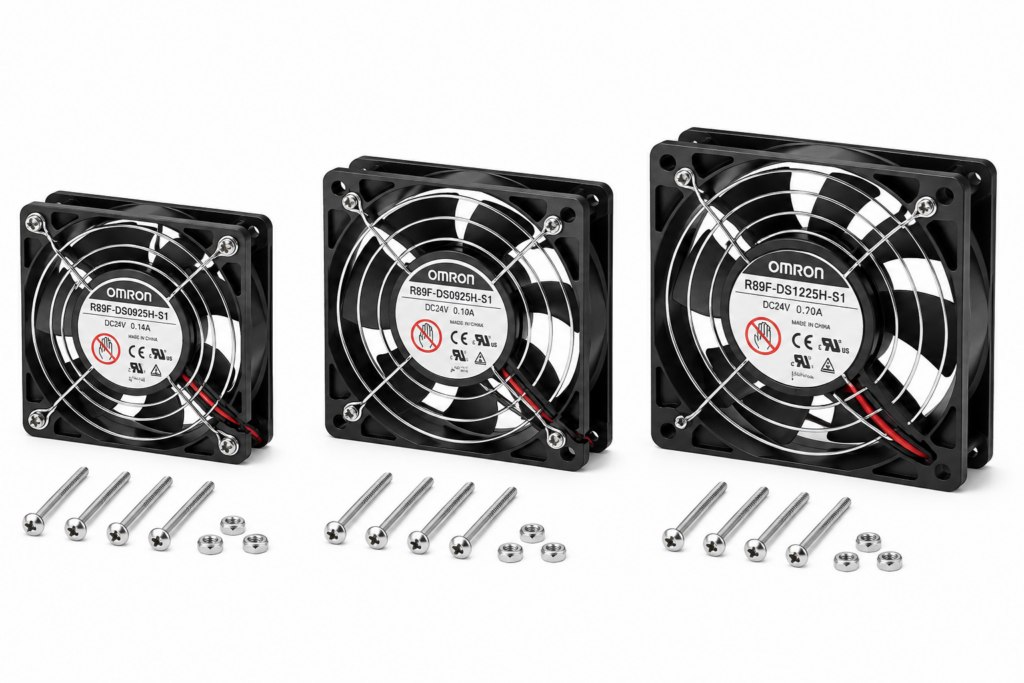

[OMRON] — R89F-D DC Axial Fan (92/120mm, 24 VDC)

Family ID: OMRON-R89F-D

DC Axial Fan. 24 VDC. Reducing required design work through unified power supply voltage.

6 product codes available in this family

Product Codes & Specifications

	Product Code	Description	Brand	Spec
	R89F-DS0925H	92×92×t25mm 24VDC High speed	OMRON	Type: DC Axial Fan \| Size: 92×92×t25 mm \| Speed: High \| Rated Voltage: 24 VDC (12~27.6V) \| Rated Current: 0.15 A \| Rated Input: 3.6 W \| Speed: 3550 r/min \| Flow Rate: 1.66 m3/min \| Static Pressure: 56.1 Pa \| Noise: 39 dB
	R89F-DS0925L	92×92×t25mm 24VDC Low speed	OMRON	Type: DC Axial Fan \| Size: 92×92×t25 mm \| Speed: Low \| Rated Voltage: 24 VDC (12~27.6V) \| Rated Current: 0.08 A \| Rated Input: 1.92 W \| Speed: 2650 r/min \| Flow Rate: 1.24 m3/min \| Static Pressure: 32.2 Pa \| Noise: 30 dB
	R89F-DS1225H	120×120×t25mm 24VDC High speed	OMRON	Type: DC Axial Fan \| Size: 120×120×t25 mm \| Speed: High \| Rated Voltage: 24 VDC (20.4~27.6V) \| Rated Current: 0.47 A \| Rated Input: 11.28 W \| Speed: 4100 r/min \| Flow Rate: 3.68 m3/min \| Static Pressure: 120 Pa \| Noise: 51 dB
	R89F-DS1225L	120×120×t25mm 24VDC Low speed	OMRON	Type: DC Axial Fan \| Size: 120×120×t25 mm \| Speed: Low \| Rated Voltage: 24 VDC (12~27.6V) \| Rated Current: 0.17 A \| Rated Input: 4.08 W \| Speed: 2850 r/min \| Flow Rate: 2.5 m3/min \| Static Pressure: 64 Pa \| Noise: 40 dB
	R89F-DS1238H	120×120×t38mm 24VDC High speed	OMRON	Type: DC Axial Fan \| Size: 120×120×t38 mm \| Speed: High \| Rated Voltage: 24 VDC (20.4~27.6V) \| Rated Current: 0.5 A \| Rated Input: 12 W \| Speed: 3600 r/min \| Flow Rate: 3.88 m3/min \| Static Pressure: 135 Pa \| Noise: 49 dB
	R89F-DS1238L	120×120×t38mm 24VDC Low speed	OMRON	Type: DC Axial Fan \| Size: 120×120×t38 mm \| Speed: Low \| Rated Voltage: 24 VDC (14~27.6V) \| Rated Current: 0.11 A \| Rated Input: 2.64 W \| Speed: 1950 r/min \| Flow Rate: 2.1 m3/min \| Static Pressure: 39.6 Pa \| Noise: 32 dB
